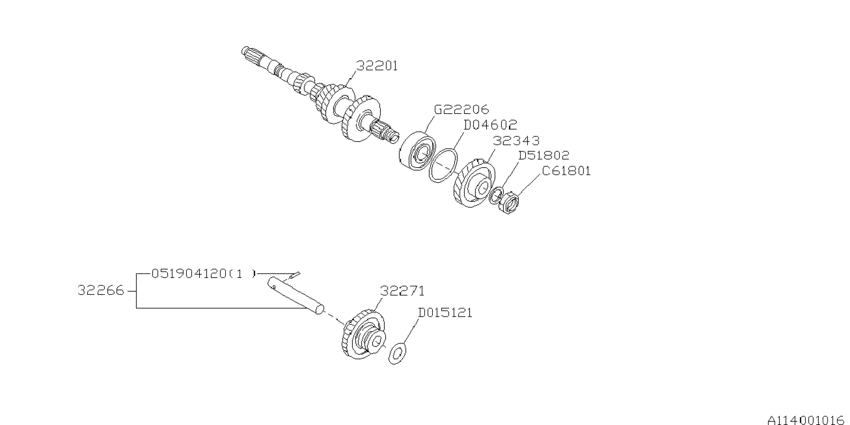

Mt, main shaft (S4WD.MT; 1993-04-01~) Diagram Subaru VIVIO
- Year
- 1993 - 1998
- Sales region
- Europe
- Engine
- EN07E
- drive
- S4WD
- transmission
- MT
- Number of doors
- 5D
- grade
- GLI
- body
- S
- Roof
- N/R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32201
|
32201
32201KA411 ｼﾔﾌﾄ,ﾄﾗﾝｽﾐﾂｼﾖﾝ ﾒｰﾝ1996-02-01 ~ 1997-07-01; S4W.MT |
32201KA411 |
US $327.10 |
||
|
32266
|
32266
440905700 SHAFT CPREV IDLE GR1996-02-01 ~ 1997-07-01; S4W.MT |
440905700 |
US $24.21 |
||
|
32271
|
32271
32271KA201 ｷﾞﾔ ｺﾝﾌﾟﾘｰﾄ,ﾘﾊﾞｰｽ ｱｲﾄﾞﾗ1996-02-01 ~ 1997-07-01; S4W.MT |
32271KA201 |
US $87.51 |
||
|
32343
|
32343
32343KA200 ｷﾞﾔ,5TH ﾄﾞﾗｲﾌﾞ1996-02-01 ~ 1997-07-01; S4W.MT |
32343KA200 |
US $105.92 |
||
|
C61801
|
C61801
802618010 LOCK NUT18X1051996-02-01 ~ 1997-07-01; S4W.MT; 18X10.5 |
802618010 |
from US $3.22 |
||
|
D015121
|
D015121
803015121 WASHER152X26X111996-02-01 ~ 1997-07-01; S4W.MT; 15.2X26X1.1 |
803015121 |
US $1.84 |
||
|
D04602
|
D04602
803046020 WASH46X552X021996-02-01 ~ 1997-07-01; S4W.MT; 46X55.2X0.2 |
803046020 |
US $0.99 |
||
|
D51802
|
D51802
803518020 LK WASH18X30X21996-02-01 ~ 1997-07-01; S4W.MT; 18X30X2 |
803518020 |
US $2.12 |
||
|
G22206
|
G22206
806222060 RADIAL BALL BEARING1996-02-01 ~ 1997-07-01; S4W.MT; 22X56X16 |
806222060 |
from US $6.97 |
||
|
051904120
|
051904120
051904120 SPRING PIN |
051904120 |
US $0.28 |
