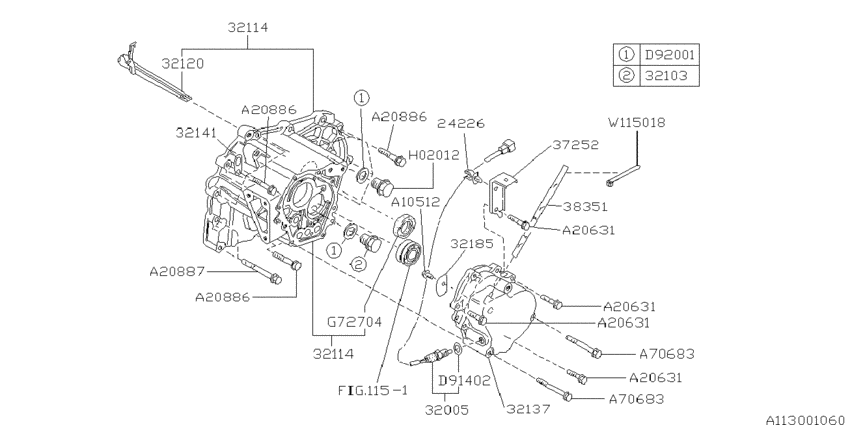

Mt, transmission case (MT; 1992-12-01~) Diagram Subaru VIVIO
- Year
- 1993 - 1994
- Sales region
- Japan
- Engine
- EN07E
- drive
- 2WD
- transmission
- MT
- body
- TOP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
24226
|
24226
24226KA101 ﾊﾞﾝﾄﾞ,ｸﾘﾂﾌﾟ1992-12-01 ~ 1995-09-01; MT |
24226KA101 |
US $2.83 |
||
|
32005
|
32005
32005KA170 ｽｲﾂﾁ ｱｾﾝﾌﾞﾘ,ﾊﾞﾂｸ ﾗﾝﾌﾟ1992-12-01 ~ 1995-09-01; MT |
32005KA170 |
US $15.72 |
||
|
32103
|
32103
32103KA000 PLUG COMPLDRAIN1992-12-01 ~ 1995-09-01; MT |
32103KA000 |
from US $1.83 |
||
|
32114
|
32114
32114KA140 ｹｰｽ ｺﾝﾌﾟﾘｰﾄ,ﾄﾗﾝｽﾐﾂｼﾖﾝ1992-12-01 ~ 1995-09-01; MT |
32114KA140 |
US $328.51 |
||
|
32120
|
32120
32120KA000 ｶﾞﾀｰ,ﾄﾗﾝｽﾐﾂｼﾖﾝ ｵｲﾙ1992-12-01 ~ 1995-09-01; MT |
32120KA000 |
US $10.05 |
||
|
32137
|
32137
32137KA070 ｻｲﾄﾞ ｹｰｽ ｺﾝﾌﾟﾘｰﾄ,ﾄﾗﾝｽﾐﾂｼﾖﾝ1992-12-01 ~ 1995-09-01; MT |
32137KA070 |
US $87.51 |
||
|
32141
|
32141
441865610 HANGER TRANS1992-12-01 ~ 1995-09-01; MT |
441865610 |
US $2.55 |
||
|
32185
|
32185
32185KA000 ﾌﾟﾚｰﾄ,ｴｱ ﾌﾞﾘｰｻﾞ1992-12-01 ~ 1995-09-01; MT |
32185KA000 |
US $1.84 |
||
|
37252
|
37252
37221KA050 ﾌﾞﾗｹﾂﾄ,ｸﾗﾂﾁ ｹｰﾌﾞﾙ1992-12-01 ~ 1995-09-01; MT |
37221KA050 |
US $5.66 |
||
|
38351
|
38351
411755400 ﾊﾟｲﾌﾟ,ｴｱ ﾌﾞﾘｰｻﾞ1992-12-01 ~ 1995-09-01; MT |
411755400 |
US $3.82 |
||
|
A10512
|
A10512
800105120 BOLT5X10X101992-12-01 ~ 1995-09-01; MT; 5X10X10 |
800105120 |
US $0.42 |
||
|
A20631
|
A20631
800206310 ﾎﾞﾙﾄ1992-12-01 ~ 1995-09-01; MT; 6X25X16 |
800206310 |
US $0.42 |
||
|
A20886
|
A20886
800208860 ﾎﾞﾙﾄ1992-12-01 ~ 1995-09-01; MT; 8X35X20 |
800208860 |
US $0.57 |
||
|
A20887
|
A20887
800208870 BOLT8X50X201992-12-01 ~ 1995-09-01; MT; 8X35X20 |
800208870 |
US $0.99 |
||
|
A70683
|
A70683
800706830 BOLT6X75X161992-12-01 ~ 1995-09-01; MT; 6X75X16 |
800706830 |
US $1.13 |
||
|
D91402
|
D91402
803914020 GASKET142X21X21992-12-01 ~ 1995-09-01; MT; 14.2X21X2 |
803914020 |
US $0.42 |
||
|
D92001
|
D92001
803920010 GASKET205X26X151992-12-01 ~ 1995-09-01; MT; 20.5X26X1.5 |
803920010 |
US $1.27 |
||
|
G72704
|
G72704
806727040
ｵｲﾙ ｼｰﾙ
1992-12-01 ~ 1995-09-01; MT; ﾃﾞﾌLHﾖｳ; 27X45X9 |
806727040 |
— | ||
| replacement | |||||
|
G72704
|
G72704
806727180 OIL SEAL (27X45X9)1992-12-01 ~ 1995-09-01; MT; ﾃﾞﾌLHﾖｳ; 27X45X9 |
806727180 |
from US $2.42 |
||
|
H02012
|
H02012
807020120 PLUG20X101992-12-01 ~ 1995-09-01; MT; 20X10 |
807020120 |
US $3.12 |
||
|
W115018
|
W115018
909115018 BAND1992-12-01 ~ 1995-09-01; MT; ｴｱﾌﾞﾘｰｻﾞﾄﾋｰﾀﾎｰｽﾄﾞﾒ |
909115018 |
US $1.56 |
||
