Component List VIVIO
Pedal system (mt) (MT; 1992-12-01~)

Difficulties in parts search?

Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
36010	36010 36010KC000 ﾍﾟﾀﾞﾙｱｾﾝﾌﾞﾘ,ｱｸｾﾙ 1992-12-01 ~ 1995-09-01; MT	36010KC000	US $88.92
36013	36013 36012KC000 ﾍﾟﾀﾞﾙｺﾝﾌﾟﾘｰﾄ,ﾌﾞﾚｰｷ 1992-12-01 ~ 1995-09-01; MT	36012KC000	US $28.46
36015	36015 36014KC000 ﾍﾟﾀﾞﾙｺﾝﾌﾟﾘｰﾄ,ｸﾗﾂﾁ 1992-12-01 ~ 1995-09-01; MT	36014KC000	US $31.15
36020B	36020B 36021KC000 ﾌﾞﾗｹﾂﾄｺﾝﾌﾟﾘｰﾄ,ﾌﾞﾚｰｷﾍﾟﾀﾞﾙ 1992-12-01 ~ 1995-09-01; MT	36021KC000	US $64.43
36022	36022 736013021 BUSHING 1992-12-01 ~ 1995-09-01; MT	736013021	US $0.57
36022A	36022A 736013000 BUSHING PEDAL 1992-12-01 ~ 1995-09-01; MT	736013000	from US $1.27
36023	36023 36024KC000 ﾊﾟﾂﾄﾞ,ｱｸｾﾙﾍﾟﾀﾞﾙ 1992-12-01 ~ 1995-09-01; MT	36024KC000	US $4.81
36023A	36023A 736015010 ﾊﾟﾂﾄﾞ,ｸﾗﾂﾁｱﾝﾄﾞﾌﾞﾚｰｷﾍﾟﾀﾞﾙ 1992-12-01 ~ 1995-09-01; MT	736015010	—
	replacement
36023A	36023A 36015GA111 Pad-clutch and brake pedal 1992-12-01 ~ 1995-09-01; MT	36015GA111	from US $1.22
36035	36035 636004050 ｽﾄﾂﾊﾟ,ﾍﾟﾀﾞﾙ A 1992-12-01 ~ 1995-09-01; MT	636004050	—
	replacement
36035	36035 36041CA010 ｽﾄﾂﾊﾟ,ﾍﾟﾀﾞﾙ A 1992-12-01 ~ 1995-09-01; MT	36041CA010	from US $0.30
36035A	36035A 36035KC010 ｽﾄﾂﾊﾟ,ﾍﾟﾀﾞﾙ B 1992-12-01 ~ 1995-09-01; MT	36035KC010	US $1.84
36035B	36035B 36036AC010 Stopper-pedal, C 1992-12-01 ~ 1995-09-01; MT	36036AC010	—
36035D	36035D 636004130 ｽﾄﾂﾊﾟ,ﾍﾟﾀﾞﾙ E 1992-12-01 ~ 1995-09-01; MT	636004130	US $0.57
36036	36036 36036KC010 ｽﾌﾟﾘﾝｸﾞｱｼｽﾄ,ﾌﾞﾚｰｷ 1992-12-01 ~ 1995-09-01; MT	36036KC010	US $2.69
36036A	36036A 36036KC000 ｽﾌﾟﾘﾝｸﾞｱｼｽﾄ,ｱｸｾﾙ 1992-12-01 ~ 1995-09-01; MT	36036KC000	US $1.70
36036D	36036D 36036KC020 ｽﾌﾟﾘﾝｸﾞ 1992-12-01 ~ 1993-10-01; MT	36036KC020	US $2.12
36036D	36036D 36036KC021 ｽﾌﾟﾘﾝｸﾞ 1993-11-01 ~ 1995-09-01; MT	36036KC021	US $1.98
36037	36037 36037KC000 ｼﾔﾌﾄ,ﾍﾟﾀﾞﾙ 1992-12-01 ~ 1995-09-01; MT	36037KC000	US $9.49
36086	36086 36028KC000 ｸﾘﾂﾌﾟ,ｱｸｾﾙﾍﾟﾀﾞﾙ 1992-12-01 ~ 1995-09-01; MT	36028KC000	US $1.84
36086B	36086B 36028KC010 ｸﾘﾂﾌﾟ,ｸﾗﾂﾁﾍﾟﾀﾞﾙ 1992-12-01 ~ 1995-09-01; MT	36028KC010	US $1.84
36088	36088 36057KC000 ﾜﾂｼﾔ,ｸﾗﾂﾁﾍﾟﾀﾞﾙ 1992-12-01 ~ 1995-09-01; MT	36057KC000	US $0.42
83311	83311 83311AA010 SWITCH-STOP LAMP 1992-12-01 ~ 1995-09-01; MT	83311AA010	US $16.43
M250004	M250004 901250004 BOLT WASHER 1992-12-01 ~ 1995-09-01; MT	901250004	US $1.70
R200015	R200015 905200015 CLEVIS PIN 1992-12-01 ~ 1995-09-01; MT	905200015	US $0.42
010008160	010008160 010008160 FLANGE BOLT-PILOT	010008160	from US $0.26
022710000	022710000 022710000 NUT	022710000	—
	replacement
022710000	022710000 022810000 NUT	022810000	from US $0.42
023708000	023708000 023708000 Nut	023708000	—
	replacement
023708000	023708000 902600003 Nut	902600003	US $0.57
031312001	031312001 031312001 CLIP	031312001	US $0.42
047406120	047406120 047406120 TAPPING SCREW-HEXAGON FLANGE HEAD	047406120	—
	replacement
047406120	047406120 904740011 TAPPING SCREW	904740011	from US $0.28
051108001	051108001 051108001 SNAP PIN	051108001	from US $0.13
051508000	051508000 051508000 CLIP	051508000	from US $0.14

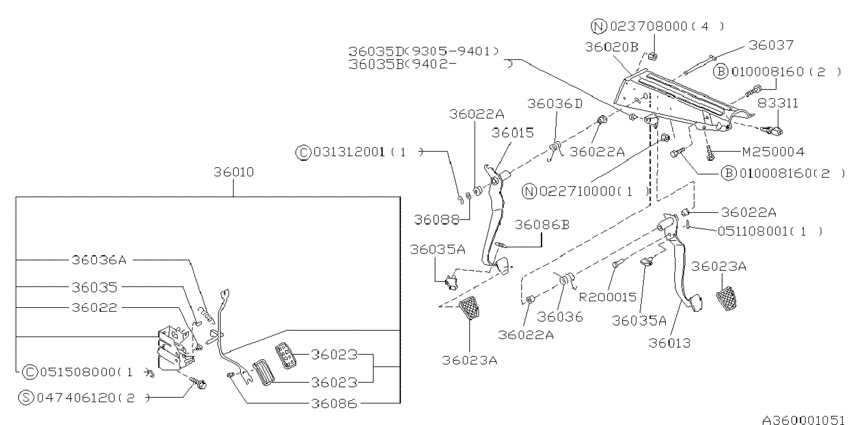

Pedal system (mt) (MT; 1992-12-01~) Diagram Subaru VIVIO Japan 7087462-554120

Pedal system (mt) (MT; 1992-12-01~) Diagram Subaru VIVIO Japan 7087462-554120
