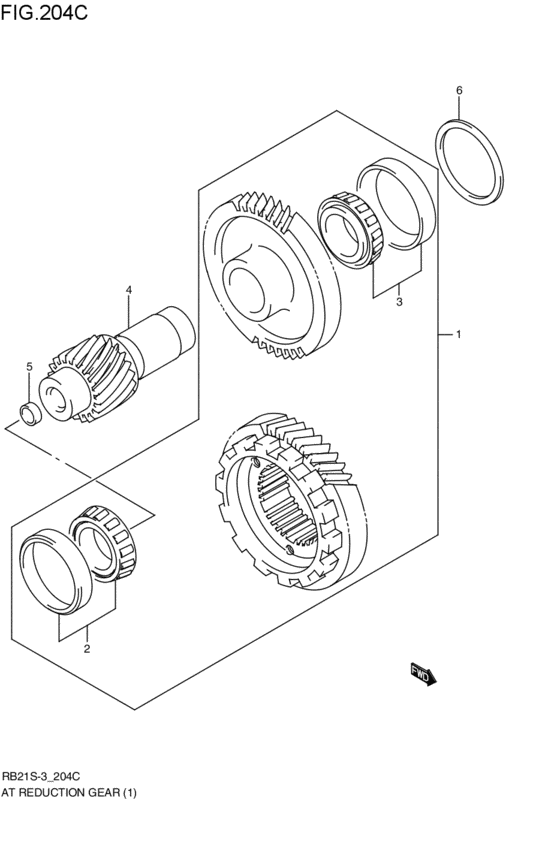

at - reduction gear (AT:M15A; 2002-06-01~) Diagram Suzuki AERIO
- Year
- 2002 - 2011
- Sales region
- Japan
- Engine
- M15A
- drive
- 2WD
- transmission
- AT
- Number of doors
- 4DR
- body
- X
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24611-79CT0-000
GEAR SET,REDUCTION DRIVE
AT:M15A; 2002-06-01~ |
24611-79CT0-000 |
— | ||
|
2
|
2
24141-79C10-000 BEARING ASSY,COUNTERSHAFTAT:M15A; 2002-06-01~ |
24141-79C10-000 |
US $20 |
||
|
3
|
3
24144-79C10-000 BEARING ASSY,COUNTERSHAFTAT:M15A; 2002-06-01~ |
24144-79C10-000 |
US $34.59 |
||
|
4
|
4
24131-55G10-000
シャフト,カウンタ
AT:M15A:2WD; 2002-06-01~ |
24131-55G10-000 |
— | ||
| replacement | |||||
|
4
|
4
24131-55G30-000 SHAFT,COUNTERAT:M15A:2WD; 2002-06-01~ |
24131-55G30-000 |
US $110.40 |
||
|
5
|
5
24134-79C10-000 PLUG,COUNTERSHAFTAT:M15A; 2002-06-01~ |
24134-79C10-000 |
US $3.02 |
||
|
6
|
6
24147-79CT0-000 SHIM SET,COUNTERSHAFTAT:M15A; 2002-06-01~ |
24147-79CT0-000 |
US $79.12 |
||
