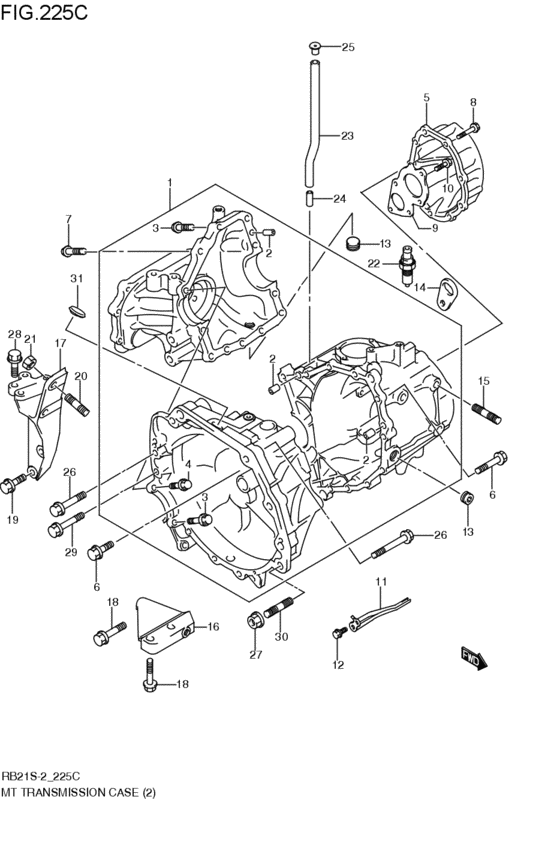

mt - transmission case (MT:4WD; 2001-10-01~) Diagram Suzuki AERIO
- Year
- 2001 - 2011
- Sales region
- Japan
- drive
- 4WD
- transmission
- MT
- Number of doors
- 4DR
- body
- X
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24700-69810-000
ケースセット,トランスアクスル
MT:4WD; 2001-10-01~ |
24700-69810-000 |
— | ||
| replacement | |||||
|
1
|
1
24700-69811-000
CASE SET,TRANSAXLE
MT:4WD; 2001-10-01~ |
24700-69811-000 |
— | ||
|
2
|
2
09206-10014-000 PIN(6.4X10X20)MT:4WD; 2001-10-01~ |
09206-10014-000 |
US $21 |
||
|
3
|
3
01550-08403-000
Bolt
MT:4WD; 2001-10-01~ |
01550-08403-000 |
— | ||
| replacements | |||||
|
3
|
3
01550-0840B-000 BoltMT:4WD; 2001-10-01~ |
01550-0840B-000 |
from US $1.12 |
||
|
3
|
3
01550-0840A-000 BOLTMT:4WD; 2001-10-01~ |
01550-0840A-000 |
from US $1.12 |
||
|
4
|
4
01550-08303-000
Bolt
MT:4WD; 2001-10-01~ |
01550-08303-000 |
— | ||
| replacements | |||||
|
4
|
4
01550-0830B-000 BoltMT:4WD; 2001-10-01~ |
01550-0830B-000 |
from US $1.06 |
||
|
4
|
4
01550-0830A-000 BOLTBolt, mount oil seal cover MT:4WD; 2001-10-01~ |
01550-0830A-000 |
from US $1.12 |
||
|
5
|
5
24730-54G00-000
カバー,トランスミッション,サイド
MT:4WD; 2001-10-01~ |
24730-54G00-000 |
— | ||
| replacement | |||||
|
5
|
5
24730-54G21-000 COVER,TRANSAXLE SIDEMT:4WD; 2001-10-01~ |
24730-54G21-000 |
US $41.80 |
||
|
6
|
6
01550-08403-000
Bolt
MT:4WD; 2001-10-01~ |
01550-08403-000 |
— | ||
| replacements | |||||
|
6
|
6
01550-0840B-000 BoltMT:4WD; 2001-10-01~ |
01550-0840B-000 |
from US $1.12 |
||
|
6
|
6
01550-0840A-000 BOLTMT:4WD; 2001-10-01~ |
01550-0840A-000 |
from US $1.12 |
||
|
7
|
7
01550-08353-000
Bolt, rear
MT:4WD; 2001-10-01~ |
01550-08353-000 |
— | ||
| replacements | |||||
|
7
|
7
01550-0835B-000 BOLTMT:4WD; 2001-10-01~ |
01550-0835B-000 |
from US $1.12 |
||
|
7
|
7
01550-0835A-000 BOLTMT:4WD; 2001-10-01~ |
01550-0835A-000 |
from US $1.06 |
||
|
8
|
8
09135-06022-000
Bolt
MT:4WD; 2001-10-01~ |
09135-06022-000 |
— | ||
| replacement | |||||
|
8
|
8
09135-06027-000 BOLT(6X12)MT:4WD; 2001-10-01~ |
09135-06027-000 |
from US $1.12 |
||
|
9
|
9
24725-70C01-000
プレート,レフトケース
MT:4WD; 2001-10-01~ |
24725-70C01-000 |
— | ||
| replacement | |||||
|
9
|
9
24725-59J20-000 PLATE,LEFT CASEMT:4WD; 2001-10-01~ |
24725-59J20-000 |
US $26.68 |
||
|
10
|
10
09117-08050-000 BOLT(8X20)MT:4WD; 2001-10-01~ |
09117-08050-000 |
US $2.24 |
||
|
11
|
11
24810-70C00-000 GUTTER,INPUT OILMT:4WD; 2001-10-01~ |
24810-70C00-000 |
US $5.30 |
||
|
12
|
12
09103-06083-000
Bolt (6x12)
MT:4WD; 2001-10-01~ |
09103-06083-000 |
— | ||
| replacement | |||||
|
12
|
12
09103-06285-000 BOLT(6X12)Bolt (6x12) MT:4WD; 2001-10-01~ |
09103-06285-000 |
from US $1.28 |
||
|
13
|
13
09246-16010-000 PLUGMT:4WD; 2001-10-01~ |
09246-16010-000 |
US $4.46 |
||
| replacement | |||||
|
13
|
13
09246-16021-000 Plug,t/m Oil DrainMT:4WD; 2001-10-01~ |
09246-16021-000 |
from US $4.01 |
||
|
14
|
14
11851-72B21-000 HOOK,ENGINEMT:4WD; 2001-10-01~ |
11851-72B21-000 |
US $2.80 |
||
|
15
|
15
09108-10138-000 BOLT,STUDMT:4WD; 2001-10-01~ |
09108-10138-000 |
from US $3.83 |
||
|
16
|
16
24791-54G60-000
STIFFENER,T/M CASE LOWER
MT:4WD; 2001-10-01~ |
24791-54G60-000 |
— | ||
|
17
|
17
24792-54G60-000
STIFFENER,TRANSAXLE CASE,R
MT:4WD; 2001-10-01~ |
24792-54G60-000 |
— | ||
|
18
|
18
01550-10403-000
Bolt
MT:4WD; 2001-10-01~ |
01550-10403-000 |
— | ||
| replacements | |||||
|
18
|
18
01550-1040B-000 BOLTMT:4WD; 2001-10-01~ |
01550-1040B-000 |
from US $3.74 |
||
|
18
|
18
01550-1040A-000 BOLTMT:4WD; 2001-10-01~ |
01550-1040A-000 |
from US $1.12 |
||
|
19
|
19
01550-10253-000
Bolt
MT:4WD; 2001-10-01~ |
01550-10253-000 |
— | ||
| replacements | |||||
|
19
|
19
01550-1025B-000 BoltBolt, rr swgarm bracket, l MT:4WD; 2001-10-01~ |
01550-1025B-000 |
from US $5.59 |
||
|
19
|
19
01550-1025A-000 BOLTBolt, drive gear MT:4WD; 2001-10-01~ |
01550-1025A-000 |
from US $1.06 |
||
|
20
|
20
01421-10253-000
Stud bolt
MT:4WD; 2001-10-01~ |
01421-10253-000 |
— | ||
| replacement | |||||
|
20
|
20
01421-1025B-000 BOLT,STUDMT:4WD; 2001-10-01~ |
01421-1025B-000 |
from US $5.07 |
||
|
21
|
21
08316-10103-000
Nut
MT:4WD; 2001-10-01~ |
08316-10103-000 |
— | ||
| replacement | |||||
|
21
|
21
08316-1010B-000 NUTMT:4WD; 2001-10-01~ |
08316-1010B-000 |
from US $0.80 |
||
|
22
|
22
37610-76G10-000 SWITCH ASSY,BACK UPMT:4WD; 2001-10-01~ |
37610-76G10-000 |
from US $16.20 |
||
|
23
|
23
24825-74C00-000 HOSE,BREATHERMT:4WD; 2001-10-01~ |
24825-74C00-000 |
US $5.70 |
||
|
24
|
24
09341-06002-000 UNIONMT:4WD; 2001-10-01~ |
09341-06002-000 |
US $12.10 |
||
|
25
|
25
27991-65D01-000 PLUG,BREATHERMT:4WD; 2001-10-01~ |
27991-65D01-000 |
from US $1.92 |
||
|
26
|
26
01550-12553-000
ボルト
MT:4WD; 2001-10-01~ |
01550-12553-000 |
— | ||
| replacement | |||||
|
26
|
26
01550-1255A-000 BoltMT:4WD; 2001-10-01~ |
01550-1255A-000 |
US $21.70 |
||
|
27
|
27
08316-10123-000
Nut
MT:4WD; 2001-10-01~ |
08316-10123-000 |
— | ||
| replacement | |||||
|
27
|
27
08316-1012A-000 NUTMT:4WD; 2001-10-01~ |
08316-1012A-000 |
from US $0.96 |
||
|
28
|
28
01550-10353-000
Bolt
MT:4WD; 2001-10-01~ |
01550-10353-000 |
— | ||
| replacement | |||||
|
28
|
28
01550-1035A-000 BOLTBolt, fr fork upper MT:4WD; 2001-10-01~ |
01550-1035A-000 |
from US $5.68 |
||
|
29
|
29
09103-12060-000 BOLT(12X50)MT:4WD; 2001-10-01~ |
09103-12060-000 |
US $27.60 |
||
|
30
|
30
09108-12007-000
Bolt,stud
MT:4WD; 2001-10-01~ |
09108-12007-000 |
— | ||
| replacement | |||||
|
30
|
30
09108-12012-000 BOLT,STUDMT:4WD; 2001-10-01~ |
09108-12012-000 |
from US $2.50 |
||
|
31
|
31
09250-26005-000 CAP(OD:36)MT:4WD; 2001-10-01~ |
09250-26005-000 |
from US $2.48 |
||
