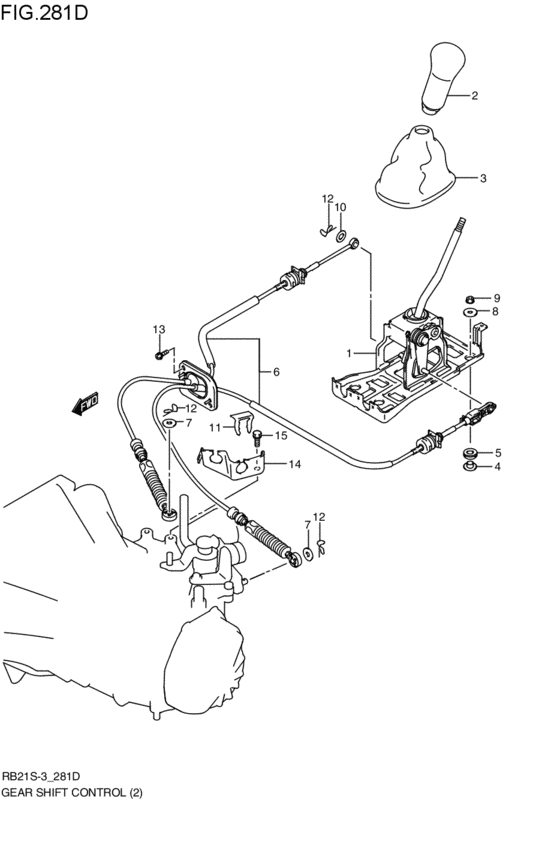

gearlever control (MT:4WD; 2002-06-01~) Diagram Suzuki AERIO
- Year
- 2002 - 2011
- Sales region
- Japan
- Engine
- M15A
- drive
- 4WD
- transmission
- MT
- Number of doors
- 4DR
- body
- X
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
28101-55G00-000
LEVER ASSY,GR SHF CONT
MT:4WD; 2002-06-01~ |
28101-55G00-000 |
— | ||
|
2
|
2
28113-70G20-5PK
KNOB,CONT LEVER
ブラック; MT:4WD; 2002-06-01~ |
28113-70G20-5PK |
— | ||
| replacement | |||||
|
2
|
2
28113-70G21-5PK KNOB,GEAR SHF CONT LEVER(BLC)ブラック; MT:4WD; 2002-06-01~ |
28113-70G21-5PK |
US $34.40 |
||
|
3
|
3
28130-55G00-GB8
ブーツアッシ,ギヤシフトコントロール
シルバー/ブラック; MT:4WD; 2002-06-01~ |
28130-55G00-GB8 |
— | ||
| replacement | |||||
|
3
|
3
28130-55G00-KU7
BOOT ASSY,GEAR SHIFT CONTROL
シルバー/ブラック; MT:4WD; 2002-06-01~ |
28130-55G00-KU7 |
— | ||
|
4
|
4
28367-76G00-000
スペーサ,ギアコントロールガイドクッション
MT:4WD; 2002-06-01~ |
28367-76G00-000 |
— | ||
| replacement | |||||
|
4
|
4
28367-72J20-000 SPACER,GEAR CONT GUIDE CUSHIONMT:4WD; 2002-06-01~ |
28367-72J20-000 |
US $2.76 |
||
|
5
|
5
09320-12036-000 CUSHIONCushion, holder MT:4WD; 2002-06-01~ |
09320-12036-000 |
from US $1.92 |
||
|
6
|
6
28300-54G61-000
ケーブルアッシ,シフト/セレクトコントロール
MT:4WD; 2002-06-01~ |
28300-54G61-000 |
— | ||
| replacement | |||||
|
6
|
6
28300-54G6V-000
CABLE ASSY,SHIFT&SELECT CONT
MT:4WD; 2002-06-01~ |
28300-54G6V-000 |
— | ||
|
7
|
7
09160-08133-000
Washer
MT:4WD; 2002-06-01~ |
09160-08133-000 |
— | ||
| replacement | |||||
|
7
|
7
09160-08151-000 WASHER(8.5X26X1.6)Washer, shift rod (8.5x26x1.6) MT:4WD; 2002-06-01~ |
09160-08151-000 |
from US $0.91 |
||
|
8
|
8
09160-08133-000
Washer
MT:4WD; 2002-06-01~ |
09160-08133-000 |
— | ||
| replacement | |||||
|
8
|
8
09160-08151-000 WASHER(8.5X26X1.6)Washer, shift rod (8.5x26x1.6) MT:4WD; 2002-06-01~ |
09160-08151-000 |
from US $0.91 |
||
|
9
|
9
08316-10083-000
Nut
MT:4WD; 2002-06-01~ |
08316-10083-000 |
— | ||
| replacement | |||||
|
9
|
9
08316-1008B-000 NUTMT:4WD; 2002-06-01~ |
08316-1008B-000 |
from US $0.76 |
||
|
10
|
10
08322-01083-000
WASHER
MT:4WD; 2002-06-01~ |
08322-01083-000 |
— | ||
| replacements | |||||
|
10
|
10
08322-0108B-000 WASHERMT:4WD; 2002-06-01~ |
08322-0108B-000 |
from US $0.80 |
||
|
10
|
10
08322-0108A-000 WASHERMT:4WD; 2002-06-01~ |
08322-0108A-000 |
from US $0.80 |
||
|
11
|
11
09383-19001-000 E RINGClip MT:4WD; 2002-06-01~ |
09383-19001-000 |
from US $2.72 |
||
|
12
|
12
09385-08007-000 PIN,SNAPClip MT:4WD; 2002-06-01~ |
09385-08007-000 |
from US $1.09 |
||
|
13
|
13
02162-06203-000
Bolt
MT:4WD; 2002-06-01~ |
02162-06203-000 |
— | ||
| replacement | |||||
|
13
|
13
02162-0620C-000 SCREWMT:4WD; 2002-06-01~ |
02162-0620C-000 |
from US $0.80 |
||
|
14
|
14
28390-54G61-000
Bracket,t/m cont cable
MT:4WD; 2002-06-01~ |
28390-54G61-000 |
— | ||
|
15
|
15
01570-10253-000
ボルト
MT:4WD; 2002-06-01~ |
01570-10253-000 |
— | ||
| replacement | |||||
|
15
|
15
01570-1025A-000 BoltMT:4WD; 2002-06-01~ |
01570-1025A-000 |
US $1.12 |
||
