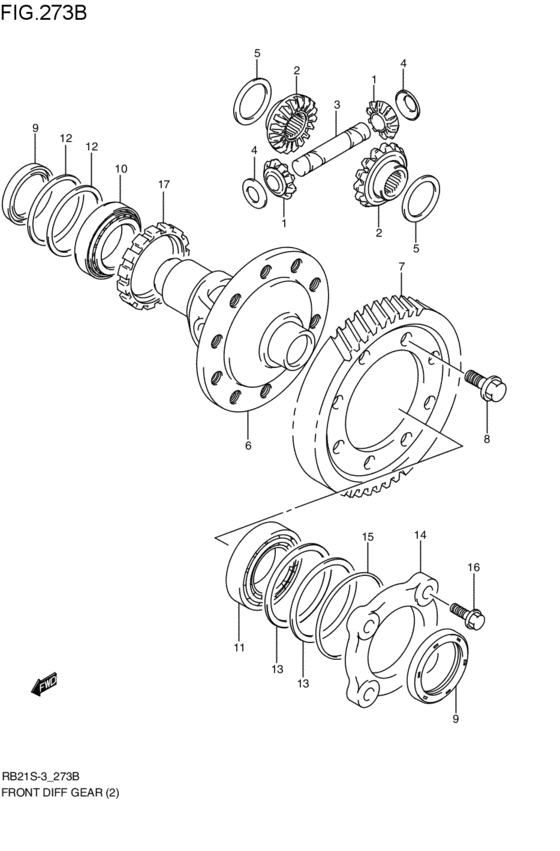

フロントデファレンシャルギヤ (MT:4WD; 2002-06-01~) Diagram Suzuki AERIO
- Year
- 2002 - 2011
- Sales region
- Japan
- Engine
- M15A
- drive
- 4WD
- transmission
- MT
- Number of doors
- 4DR
- body
- XV
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
27331-70C00-000 PINION,DIFFERENTIALMT:4WD; 2002-06-01~ |
27331-70C00-000 |
US $33.60 |
||
|
2
|
2
27341-70C01-000 GEAR,DIFF SIDEMT:4WD; 2002-06-01~ |
27341-70C01-000 |
US $85.60 |
||
|
3
|
3
27351-74C02-000 SHAFT,DIFF SIDE PINIONMT:4WD; 2002-06-01~ |
27351-74C02-000 |
US $45.60 |
||
|
4
|
4
09164-17006-000 WASHER(17.3X32X1)MT:4WD; 2002-06-01~ |
09164-17006-000 |
from US $1.60 |
||
|
5
|
5
09181-38163-000 SHIM(38X50X0.85)Shim (t:0.85) MT:4WD; 2002-06-01~ |
09181-38163-000 |
from US $4.03 |
||
|
5
|
5
09181-38164-000 SHIM(38X50X0.9)Shim (t:0.90) MT:4WD; 2002-06-01~ |
09181-38164-000 |
US $26.90 |
||
|
5
|
5
09181-38165-000 SHIM(38X50X0.95)Shim (t:0.95) MT:4WD; 2002-06-01~ |
09181-38165-000 |
US $26.90 |
||
|
5
|
5
09181-38166-000 SHIM(38X50X1)Shim (t:1.00) MT:4WD; 2002-06-01~ |
09181-38166-000 |
US $32 |
||
|
5
|
5
09181-38169-000 SHIM(38X50X1.05)Shim (t:1.05) MT:4WD; 2002-06-01~ |
09181-38169-000 |
US $32 |
||
|
5
|
5
09181-38172-000 SHIM(38X50X1.1)Shim (t:1.10) MT:4WD; 2002-06-01~ |
09181-38172-000 |
from US $2.32 |
||
|
5
|
5
09181-38174-000 SHIM(38X50X1.15)Shim (t:1.15) MT:4WD; 2002-06-01~ |
09181-38174-000 |
US $29.10 |
||
|
6
|
6
27411-54G60-000
CASE,FR DIFF
MT:4WD; 2002-06-01~ |
27411-54G60-000 |
— | ||
|
7
|
7
27511-74C02-000
Gear,final
MT:4WD; 2002-06-01~ |
27511-74C02-000 |
— | ||
| replacements | |||||
|
7
|
7
27511-74C03-000
GEAR,FINAL
MT:4WD; 2002-06-01~ |
27511-74C03-000 |
— | ||
|
7
|
7
27511-74C04-000 Gear,finalMT:4WD; 2002-06-01~ |
27511-74C04-000 |
US $220.40 |
||
|
8
|
8
09103-10184-000 BOLT(10X25)MT:4WD; 2002-06-01~ |
09103-10184-000 |
US $30.20 |
||
| replacement | |||||
|
8
|
8
09103-10253-000
Bolt,10x28
MT:4WD; 2002-06-01~ |
09103-10253-000 |
— | ||
|
9
|
9
27432-70C00-000 SEAL,DIFF SIDE OILMT:4WD; 2002-06-01~ |
27432-70C00-000 |
from US $9.45 |
||
|
10
|
10
09265-38001-000 BEARING(38X63X17)MT:4WD; 2002-06-01~ |
09265-38001-000 |
from US $37.24 |
||
|
11
|
11
09265-40002-000 BEARING(40X68X19)MT:4WD; 2002-06-01~ |
09265-40002-000 |
US $40 |
||
|
12
|
12
29541-74C00-000 SHIM,DIFF SIDE BRG T:0.60MT:4WD; 2002-06-01~ |
29541-74C00-000 |
US $4.56 |
||
|
12
|
12
29541-74C20-000 SHIM,DIFF SIDE BRG T:0.66MT:4WD; 2002-06-01~ |
29541-74C20-000 |
US $4.56 |
||
|
12
|
12
29541-74C40-000 SHIM,DIFF SIDE BRG T:0.72MT:4WD; 2002-06-01~ |
29541-74C40-000 |
US $4.56 |
||
|
12
|
12
29541-74C60-000 SHIM,DIFF SIDE BRG T:0.78MT:4WD; 2002-06-01~ |
29541-74C60-000 |
US $4.56 |
||
|
12
|
12
29541-74C80-000 SHIM,DIFF SIDE BRG T:0.84MT:4WD; 2002-06-01~ |
29541-74C80-000 |
US $4.56 |
||
|
12
|
12
29541-75C00-000 SHIM,DIFF SIDE BRG T:0.30MT:4WD; 2002-06-01~ |
29541-75C00-000 |
from US $2.21 |
||
|
13
|
13
29541-76C00-000 SHIM,DIFF SIDE L BRG T:0.60MT:4WD; 2002-06-01~ |
29541-76C00-000 |
US $9.64 |
||
|
13
|
13
29541-76C20-000 SHIM,DIFF SIDE L BRG T:0.66MT:4WD; 2002-06-01~ |
29541-76C20-000 |
US $9.64 |
||
|
13
|
13
29541-76C40-000 SHIM,DIFF SIDE L BRG T:0.72MT:4WD; 2002-06-01~ |
29541-76C40-000 |
US $9.64 |
||
|
13
|
13
29541-76C60-000 SHIM,DIFF SIDE L BRG T:0.78MT:4WD; 2002-06-01~ |
29541-76C60-000 |
US $9.64 |
||
|
13
|
13
29541-76C80-000 SHIM,DIFF SIDE L BRG T:0.84MT:4WD; 2002-06-01~ |
29541-76C80-000 |
US $9.64 |
||
|
13
|
13
29541-77C00-000 SHIM,DIFF SIDE L BRG T:0.30MT:4WD; 2002-06-01~ |
29541-77C00-000 |
US $9.64 |
||
|
14
|
14
27421-74C01-000 RETAINER,DIFF SIDE BRGMT:4WD; 2002-06-01~ |
27421-74C01-000 |
US $36.80 |
||
|
15
|
15
09280-63004-000 O RING(D:2.4,ID:62.6)O ring (d:2.4,id:62.6) MT:4WD; 2002-06-01~ |
09280-63004-000 |
from US $5.92 |
||
|
16
|
16
01550-08203-000
Bolt
MT:4WD; 2002-06-01~ |
01550-08203-000 |
— | ||
| replacements | |||||
|
16
|
16
01550-0820B-000 BoltMT:4WD; 2002-06-01~ |
01550-0820B-000 |
from US $0.91 |
||
|
16
|
16
01550-0820A-000 BOLTBolt, funnel bracket MT:4WD; 2002-06-01~ |
01550-0820A-000 |
from US $0.96 |
||
|
17
|
17
26121-54G60-000
RING,EXCITER
MT:4WD; 2002-06-01~ |
26121-54G60-000 |
— | ||
