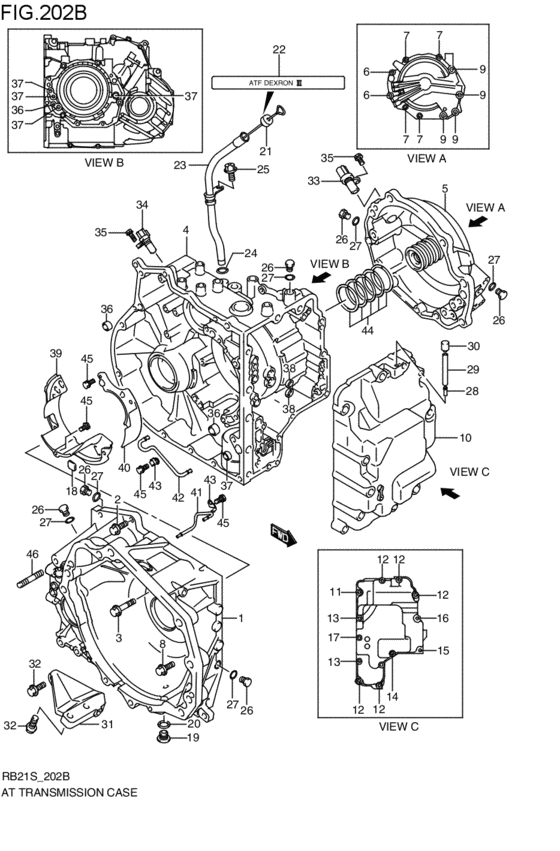

at - transmission case (AT; 2001-01-01~) Diagram Suzuki AERIO
- Year
- 2000 - 2011
- Sales region
- Japan
- Engine
- M15A
- drive
- 2WD
- transmission
- AT
- body
- G
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24720-54G10-000
HOUSING,TORQUE CONVERTER
AT; 2001-01-01~ |
24720-54G10-000 |
— | ||
|
2
|
2
24725-60G10-000 BOLT,HOUSING NO.1AT; 2001-01-01~ |
24725-60G10-000 |
US $4.27 |
||
|
3
|
3
24729-60G10-000 BoltAT; 2001-01-01~ |
24729-60G10-000 |
US $4.12 |
||
|
4
|
4
24710-60G12-000
CASE,T/M
AT; 2001-01-01~ |
24710-60G12-000 |
— | ||
|
5
|
5
24730-60G10-000 COVER ASSY,T/M RRAT; 2001-01-01~ |
24730-60G10-000 |
US $591.36 |
||
|
6
|
6
24727-60G10-000 BOLT,HOUSING NO.3AT; 2001-01-01~ |
24727-60G10-000 |
US $4.75 |
||
|
7
|
7
24734-60G10-000 BOLT,RR COVER NO.2AT; 2001-01-01~ |
24734-60G10-000 |
US $4.05 |
||
|
8
|
8
24735-60G10-000 BOLT,T/C HOUSING N0.3AT; 2001-01-01~ |
24735-60G10-000 |
US $5.04 |
||
|
9
|
9
24736-60G10-000
ボルト
AT; 2001-01-01~ |
24736-60G10-000 |
— | ||
| replacement | |||||
|
9
|
9
22893-59J10-000 BOLT,OIL PUMP ASSYAT; 2001-01-01~ |
22893-59J10-000 |
US $4.64 |
||
|
10
|
10
24751-65G10-000 COVER,T/M SIDEAT; 2001-01-01~ |
24751-65G10-000 |
US $351.44 |
||
|
11
|
11
24727-60G10-000 BOLT,HOUSING NO.3AT; 2001-01-01~ |
24727-60G10-000 |
US $4.75 |
||
|
12
|
12
24753-60G10-000 BOLT,SIDE COVER NO.2AT; 2001-01-01~ |
24753-60G10-000 |
US $4.56 |
||
|
13
|
13
24754-60G10-000 BOLT,SIDE COVER NO.3AT; 2001-01-01~ |
24754-60G10-000 |
US $5.37 |
||
|
14
|
14
24755-65G10-000 BOLT,SIDE COVER NO.4AT; 2001-01-01~ |
24755-65G10-000 |
US $5.37 |
||
|
15
|
15
24756-65G10-000 BOLT,SIDE COVER STUDAT; 2001-01-01~ |
24756-65G10-000 |
US $7.76 |
||
|
16
|
16
24757-60G10-000 BOLT,SIDE COVER NO.6AT; 2001-01-01~ |
24757-60G10-000 |
US $6.26 |
||
|
17
|
17
24758-65G10-000 BOLT,SIDE COVER NO.7AT; 2001-01-01~ |
24758-65G10-000 |
US $5.23 |
||
|
18
|
18
24745-57B00-000 MAGNET,T/M OIL PANAT; 2001-01-01~ |
24745-57B00-000 |
US $5.60 |
||
|
19
|
19
24823-60G11-000 PLUG,DRAINAT; 2001-01-01~ |
24823-60G11-000 |
US $13.60 |
||
|
20
|
20
24824-60G10-000 GASKET,DRAIN PLUGAT; 2001-01-01~ |
24824-60G10-000 |
from US $2.56 |
||
|
21
|
21
24831-54G10-000 GAUGE,OIL LEVELAT; 2001-01-01~ |
24831-54G10-000 |
US $24.10 |
||
|
22
|
22
24839-65G11-000 EMBLEM,ATFAT; 2001-01-01~ |
24839-65G11-000 |
US $2.72 |
||
|
23
|
23
24841-60G10-000 TUBE,T/M OIL FILLERAT; 2001-01-01~ |
24841-60G10-000 |
US $37.90 |
||
|
24
|
24
24842-60G10-000 O-RINGAT; 2001-01-01~ |
24842-60G10-000 |
US $2.69 |
||
|
25
|
25
02162-06163-000
Screw
AT; 2001-01-01~ |
02162-06163-000 |
— | ||
| replacement | |||||
|
25
|
25
02162-0616B-000 SCREWBolt, adjust AT; 2001-01-01~ |
02162-0616B-000 |
from US $0.80 |
||
|
26
|
26
29849-57B00-000 PLUG,T/M CASEAT; 2001-01-01~ |
29849-57B00-000 |
US $5.89 |
||
|
27
|
27
29738-57B00-000 O-RINGAT; 2001-01-01~ |
29738-57B00-000 |
US $2.40 |
||
|
28
|
28
24851-60G10-000 PLUG,BREATHERAT; 2001-01-01~ |
24851-60G10-000 |
US $8.35 |
||
|
29
|
29
24856-60G10-000 HOSE,BREATHERAT; 2001-01-01~ |
24856-60G10-000 |
US $5.74 |
||
|
30
|
30
27991-65D01-000 PLUG,BREATHERAT; 2001-01-01~ |
27991-65D01-000 |
US $1.92 |
||
|
31
|
31
24791-54G60-000
STIFFENER,T/M CASE LOWER
AT; 2001-01-01~ |
24791-54G60-000 |
— | ||
|
32
|
32
01550-10403-000
Bolt
AT; 2001-01-01~ |
01550-10403-000 |
— | ||
| replacements | |||||
|
32
|
32
01550-1040B-000 BOLTAT; 2001-01-01~ |
01550-1040B-000 |
US $21.70 |
||
|
32
|
32
01550-1040A-000 BOLTAT; 2001-01-01~ |
01550-1040A-000 |
from US $1.12 |
||
|
33
|
33
26143-60G10-000 SENSOR,SPEED INPUTAT; 2001-01-01~ |
26143-60G10-000 |
from US $127.58 |
||
|
34
|
34
26141-60G10-000 SENSOR,SPEED OUTPUTAT; 2001-01-01~ |
26141-60G10-000 |
US $129.54 |
||
|
35
|
35
29999-57B00-000 BoltAT; 2001-01-01~ |
29999-57B00-000 |
US $5.89 |
||
|
36
|
36
24815-60G10-000 GASKET,T/M CASE OIL LINE NO.1AT; 2001-01-01~ |
24815-60G10-000 |
US $10.88 |
||
|
37
|
37
24816-60G10-000 GASKET,T/M CASE OIL LINE NO.2AT; 2001-01-01~ |
24816-60G10-000 |
US $6.11 |
||
|
38
|
38
24818-60G10-000
ガスケット,トランスミッションケースオイルライン,NO.4
AT; 2001-01-01~ |
24818-60G10-000 |
— | ||
| replacement | |||||
|
38
|
38
24818-68J10-000 GASKET,GOVERNOR APPLY NO.1AT; 2001-01-01~ |
24818-68J10-000 |
US $8 |
||
|
39
|
39
24881-60G10-000
プレート,オイルリザーバ,ライト
AT; 2001-01-01~ |
24881-60G10-000 |
— | ||
| replacement | |||||
|
39
|
39
24881-65G10-000 PLATE,OIL RESERVOIR,RAT; 2001-01-01~ |
24881-65G10-000 |
US $53.36 |
||
|
40
|
40
24882-54G10-000 PLATE,OIL RESERVOIR,LAT; 2001-01-01~ |
24882-54G10-000 |
US $53.36 |
||
|
41
|
41
24883-60G10-000 TUBE,DIFF SIDEAT; 2001-01-01~ |
24883-60G10-000 |
US $25.21 |
||
|
42
|
42
24884-60G10-000 TUBE,DIFF SIDEAT; 2001-01-01~ |
24884-60G10-000 |
US $19.32 |
||
|
43
|
43
24885-60G10-000 CLAMP,R LUBRICATION TUBEAT; 2001-01-01~ |
24885-60G10-000 |
US $4.75 |
||
|
44
|
44
24732-60GT0-000 RING SET,REAR COVER SEALAT; 2001-01-01~ |
24732-60GT0-000 |
US $64.77 |
||
|
45
|
45
29970-57B00-000 BoltAT; 2001-01-01~ |
29970-57B00-000 |
US $5.89 |
||
|
46
|
46
24725-54G10-000 BOLT,HOUSING STUDAT; 2001-01-01~ |
24725-54G10-000 |
US $6.96 |
||
