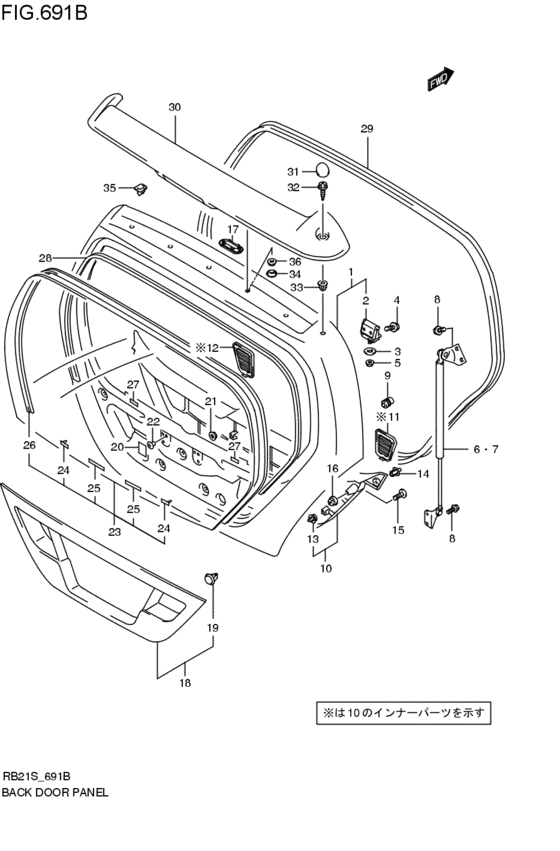

back door panel (2001-01-01~) Diagram Suzuki AERIO
- Year
- 2000 - 2011
- Sales region
- Japan
- Engine
- M15A
- drive
- 2WD
- transmission
- AT
- body
- G
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
69100-54G20-000
パネル,バックドア
G; 2001-01-01~ |
69100-54G20-000 |
— | ||
| replacements | |||||
|
1
|
1
09409-07320-000 CAPG; 2001-01-01~ |
09409-07320-000 |
US $1.28 |
||
|
1
|
1
69100-54823-000 PANEL,BACK DOORG; 2001-01-01~ |
69100-54823-000 |
US $570.24 |
||
|
1
|
1
69510-54G10-000 HINGE,DOORG; 2001-01-01~ |
69510-54G10-000 |
US $29.81 |
||
|
2
|
2
69510-54G00-000
Hinge,door
2001-01-01~ |
69510-54G00-000 |
— | ||
| replacement | |||||
|
2
|
2
69510-54G10-000 HINGE,DOOR2001-01-01~ |
69510-54G10-000 |
US $29.81 |
||
|
3
|
3
69571-76G00-000 PACKING,BACK DR HNG2001-01-01~ |
69571-76G00-000 |
US $2.24 |
||
|
4
|
4
02162-06123-000
Bolt (6x12)
2001-01-01~ |
02162-06123-000 |
— | ||
| replacements | |||||
|
4
|
4
02162-0612B-000 SCREWBolt 2001-01-01~ |
02162-0612B-000 |
from US $0.80 |
||
|
4
|
4
02162-0612A-000 SCREWBolt, bracket 2001-01-01~ |
02162-0612A-000 |
from US $0.80 |
||
|
5
|
5
08361-25083-000
Nut
2001-01-01~ |
08361-25083-000 |
— | ||
| replacement | |||||
|
5
|
5
08361-2508A-000 NUT2001-01-01~ |
08361-2508A-000 |
from US $0.80 |
||
|
6
|
6
81850-54G00-000
バランサ,バックドア,ライト
2001-01-01~ |
81850-54G00-000 |
— | ||
| replacement | |||||
|
6
|
6
81850-54G01-000 BALANCER,BACK DR,R2001-01-01~ |
81850-54G01-000 |
US $177.84 |
||
|
7
|
7
81860-54G00-000
バランサ,バックドア,レフト
2001-01-01~ |
81860-54G00-000 |
— | ||
| replacement | |||||
|
7
|
7
81860-54G01-000 BALANCER,BACK DR,L2001-01-01~ |
81860-54G01-000 |
US $177.84 |
||
|
8
|
8
02162-06123-000
Bolt (6x12)
2001-01-01~ |
02162-06123-000 |
— | ||
| replacements | |||||
|
8
|
8
02162-0612B-000 SCREWBolt 2001-01-01~ |
02162-0612B-000 |
from US $0.80 |
||
|
8
|
8
02162-0612A-000 SCREWBolt, bracket 2001-01-01~ |
02162-0612A-000 |
from US $0.80 |
||
|
9
|
9
76683-70C00-000 CUSHION,TRUNK LID/BACK DR2001-01-01~ |
76683-70C00-000 |
US $1.92 |
||
|
10
|
10
83770-54G00-P4Z TRIM,BACK DOORグレ-; 2001-01-01~ |
83770-54G00-P4Z |
US $115.55 |
||
|
11
|
11
83772-54G00-P4Z CAP,BACK DR TRIM,Rグレ-; 2001-01-01~ |
83772-54G00-P4Z |
US $5.37 |
||
|
12
|
12
83773-54G00-P4Z CAP,BACK DR TRIM,Lグレ-; 2001-01-01~ |
83773-54G00-P4Z |
US $7.30 |
||
|
13
|
13
09409-08331-000 CLIP2001-01-01~ |
09409-08331-000 |
from US $1.24 |
||
|
14
|
14
09409-07308-P4Z CLIP(GRAY)グレ-; 2001-01-01~ |
09409-07308-P4Z |
US $1.76 |
||
|
15
|
15
03141-06163-000
Screw 6x16
2001-01-01~ |
03141-06163-000 |
— | ||
| replacement | |||||
|
15
|
15
03141-0616A-000 SCREW2001-01-01~ |
03141-0616A-000 |
from US $0.76 |
||
|
16
|
16
09148-06007-000 NUT2001-01-01~ |
09148-06007-000 |
from US $0.86 |
||
|
17
|
17
83917-82010-5PK CAP,BACK DR HOLEブラック; 2001-01-01~ |
83917-82010-5PK |
US $1.60 |
||
|
18
|
18
83940-54G00-0CE GARNISH,BACK DR LICブラック; G,X; 2001-01-01~ |
83940-54G00-0CE |
US $248.40 |
||
|
19
|
19
77259-71B00-000 CLIP2001-01-01~ |
77259-71B00-000 |
US $2.08 |
||
|
20
|
20
84761-50X50-000 SEAL,140X190Seal, rr defogger wire hole 2001-01-01~ |
84761-50X50-000 |
US $6.72 |
||
|
21
|
21
08316-10063-000
Nut
2001-01-01~ |
08316-10063-000 |
— | ||
| replacement | |||||
|
21
|
21
08316-1006B-000 NUT2001-01-01~ |
08316-1006B-000 |
from US $0.76 |
||
|
22
|
22
09148-05035-000 NUT2001-01-01~ |
09148-05035-000 |
US $12.90 |
||
|
23
|
23
84570-54G00-000 GLASS,BACK DR WINDOWCENTRAL; G; 2001-01-01~ |
84570-54G00-000 |
US $415.36 |
||
|
24
|
24
84572-74G00-000 MALE,GLASS FASTENER NO.12001-01-01~ |
84572-74G00-000 |
US $3.79 |
||
|
25
|
25
84616-80F00-000 SPACER,GLASSSpacer, windshield L:585>50; 2001-01-01~ |
84616-80F00-000 |
US $10.08 |
||
|
26
|
26
84623-54G00-000 MOLDING,BACK WDO2001-01-01~ |
84623-54G00-000 |
US $40.11 |
||
|
27
|
27
84515-65D00-000 FEMALE,GLASS FASTENER NO.22001-01-01~ |
84515-65D00-000 |
from US $3.67 |
||
|
28
|
28
84627-61G00-000 TRIM,BACK DOOR WINDOW2001-01-01~ |
84627-61G00-000 |
US $50.42 |
||
|
29
|
29
84681-54G00-000 WEATHERSTRIP,BACK DR OPNG2001-01-01~ |
84681-54G00-000 |
US $75.44 |
||
