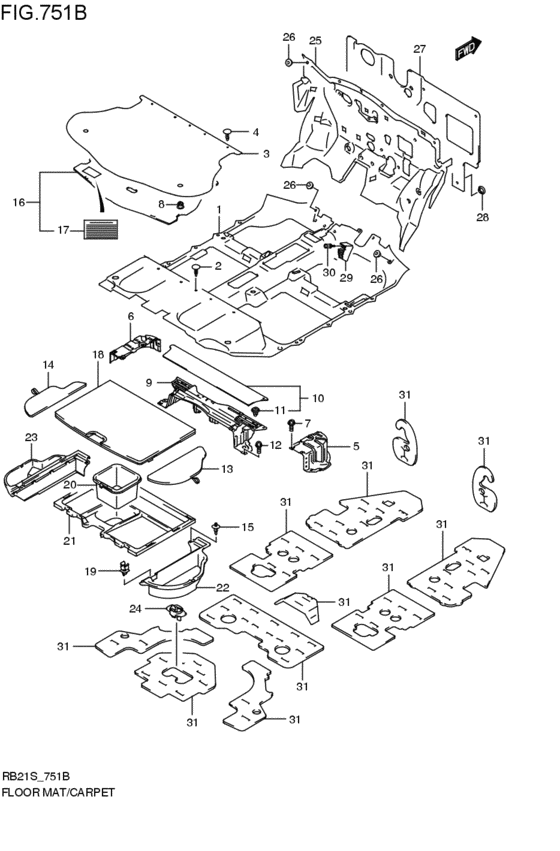

floor mat / carpet (2001-01-01~) Diagram Suzuki AERIO
- Year
- 2000 - 2011
- Sales region
- Japan
- Engine
- M15A
- drive
- 2WD
- transmission
- MT
- body
- G
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
75110-54G01-T19
Carpet,floor(gray)
グレ-; 2001-01-01~ |
75110-54G01-T19 |
— | ||
|
2
|
2
09409-10302-P4Z CLIP(GRAY)グレ-; 2001-01-01~ |
09409-10302-P4Z |
US $12.90 |
||
|
3
|
3
75130-54G00-P9S
Carpet comp,luggage floor
グレ-; G; 2001-01-01~ |
75130-54G00-P9S |
— | ||
|
4
|
4
09409-10302-P4Z CLIP(GRAY)グレ-; G; 2001-01-01~ |
09409-10302-P4Z |
US $12.90 |
||
|
5
|
5
75434-54G00-000
PANEL,RR SEAT SUPPORT SIDE,R
2001-01-01~ |
75434-54G00-000 |
— | ||
| replacement | |||||
|
5
|
5
75434-54G01-000
PANEL,RR SEAT SUPPORT,R
2001-01-01~ |
75434-54G01-000 |
— | ||
|
6
|
6
75435-54G00-000
PANEL,RR SEAT SUPPORT SIDE,L
2001-01-01~ |
75435-54G00-000 |
— | ||
|
7
|
7
02162-06123-000
Bolt (6x12)
2001-01-01~ |
02162-06123-000 |
— | ||
| replacements | |||||
|
7
|
7
02162-0612B-000 SCREWBolt 2001-01-01~ |
02162-0612B-000 |
from US $0.80 |
||
|
7
|
7
02162-0612A-000 SCREWBolt, bracket 2001-01-01~ |
02162-0612A-000 |
from US $0.80 |
||
|
8
|
8
09410-00072-000 CLAMPG; 2001-01-01~ |
09410-00072-000 |
US $2.13 |
||
|
16
|
16
75410-54G00-000
COVER,SPARE TIRE
G; 2001-01-01~ |
75410-54G00-000 |
— | ||
|
17
|
17
79167-50B00-000
プラカード,テンポラリタイヤ
G; 2001-01-01~ |
79167-50B00-000 |
— | ||
|
24
|
24
75450-60G00-000
HOLDER,SPARE TIRE
2WD; 2001-01-01~ |
75450-60G00-000 |
— | ||
|
25
|
25
75210-54G00-000
サイレンサ,ダッシュパネル
2001-01-01~ |
75210-54G00-000 |
— | ||
| replacement | |||||
|
25
|
25
75210-54G02-000 SILENCER,DASH PANEL2001-01-01~ |
75210-54G02-000 |
US $198.72 |
||
|
26
|
26
09148-05037-000 CLIP2001-01-01~ |
09148-05037-000 |
US $1.28 |
||
|
27
|
27
72443-54G00-000
サイレンサ,ダッシュパネル,アウタ
2001-01-01~ |
72443-54G00-000 |
— | ||
| replacements | |||||
|
27
|
27
09148-05048-000 NUT2001-01-01~ |
09148-05048-000 |
US $0.96 |
||
|
27
|
27
72443-54G03-000 SILENCER,DASH PANEL OUTER2001-01-01~ |
72443-54G03-000 |
US $66.98 |
||
|
28
|
28
09148-05037-000 CLIP2001-01-01~ |
09148-05037-000 |
US $1.28 |
||
|
29
|
29
75491-60B10-000
PEDAL,FOOTREST
2001-01-01~ |
75491-60B10-000 |
— | ||
|
30
|
30
75581-54G00-000
CLIP,FOOTREST
2001-01-01~ |
75581-54G00-000 |
— | ||
|
31
|
31
99611-60A01-000 SHEET,SILENCER 800X1000X32001-01-01~ |
99611-60A01-000 |
US $62.40 |
||
