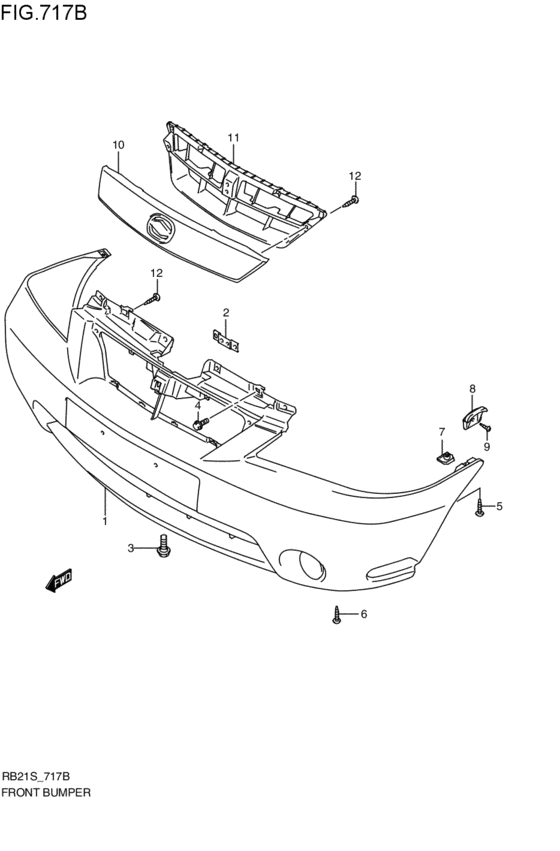

front bumper (2001-01-01~) Diagram Suzuki AERIO
- Year
- 2000 - 2011
- Sales region
- Japan
- Engine
- M15A
- drive
- 2WD
- transmission
- MT
- body
- G
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
71711-54G00-799 BUMPER,FR(PRIMARY)プライマリ-; 2001-01-01~ |
71711-54G00-799 |
US $1,100.80 |
||
|
2
|
2
71771-60A00-000 RETAINER,FR LICENSE PLATE2001-01-01~ |
71771-60A00-000 |
US $4.16 |
||
|
3
|
3
09111-06061-000
Bolt,6x16.5
2001-01-01~ |
09111-06061-000 |
— | ||
| replacement | |||||
|
3
|
3
09111-06094-000 BOLT(6X16.5)2001-01-01~ |
09111-06094-000 |
from US $0.96 |
||
|
4
|
4
09103-06240-000 BOLT(6X16)2001-01-01~ |
09103-06240-000 |
from US $1.04 |
||
|
5
|
5
09136-05057-000
Screw, fr turnsignal (5x20)
2001-01-01~ |
09136-05057-000 |
— | ||
| replacement | |||||
|
5
|
5
09136-05068-000 SCREW(5X20)2001-01-01~ |
09136-05068-000 |
from US $0.96 |
||
|
6
|
6
09136-05057-000
Screw, fr turnsignal (5x20)
2001-01-01~ |
09136-05057-000 |
— | ||
| replacement | |||||
|
6
|
6
09136-05068-000 SCREW(5X20)2001-01-01~ |
09136-05068-000 |
from US $0.96 |
||
|
7
|
7
09148-05028-000 NUT2001-01-01~ |
09148-05028-000 |
US $1.28 |
||
|
8
|
8
71851-60G00-000 HOLDER,BUMPER SIDE2001-01-01~ |
71851-60G00-000 |
US $9.60 |
||
|
9
|
9
03512-05123-000
Screw
2001-01-01~ |
03512-05123-000 |
— | ||
| replacement | |||||
|
9
|
9
03511-0512A-000 SCREW2001-01-01~ |
03511-0512A-000 |
from US $0.80 |
||
|
10
|
10
72111-54G00-ZE4
GRILLE,RDTR UPR
シルバ-; 2001-01-01~ |
72111-54G00-ZE4 |
— | ||
|
11
|
11
72112-54G00-5PK GRILLE,RDTR LWRブラック; 2001-01-01~ |
72112-54G00-5PK |
US $40.48 |
||
|
12
|
12
03541-04123-000
Screw
2001-01-01~ |
03541-04123-000 |
— | ||
| replacements | |||||
|
12
|
12
03541-0412B-000 SCREWScrew, plate 2001-01-01~ |
03541-0412B-000 |
from US $0.80 |
||
|
12
|
12
03541-0412A-000 SCREWScrew, speedometer 2001-01-01~ |
03541-0412A-000 |
from US $0.80 |
||
