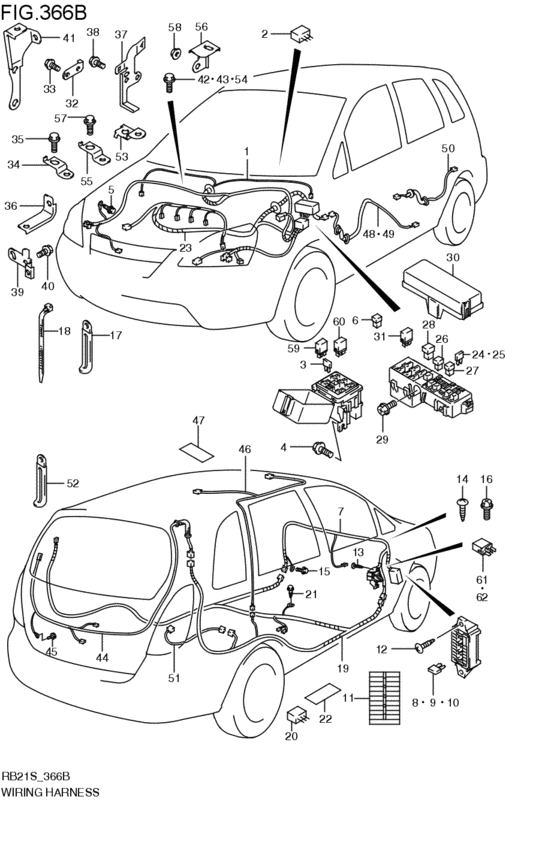

wire ring harness (エンジン / ボデイ; 2001-01-01~) Diagram Suzuki AERIO
- Year
- 2000 - 2011
- Sales region
- Japan
- Engine
- M15A
- drive
- 2WD
- transmission
- MT
- body
- G
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36610-54G10-000
ハーネスアッシ,ワイヤリング,メイン
MT; 2001-01-01~ |
36610-54G10-000 |
— | ||
|
2
|
2
33459-61B10-000 DIODE2001-01-01~ |
33459-61B10-000 |
US $15.57 |
||
|
3
|
3
09481-15501-000 FUSE(15A)2001-01-01~ |
09481-15501-000 |
from US $3.25 |
||
|
4
|
4
02162-06163-000
Screw
2001-01-01~ |
02162-06163-000 |
— | ||
| replacement | |||||
|
4
|
4
02162-0616B-000 SCREWBolt, adjust 2001-01-01~ |
02162-0616B-000 |
from US $0.80 |
||
|
5
|
5
09115-06001-000
Bolt, lh
2001-01-01~ |
09115-06001-000 |
— | ||
| replacement | |||||
|
5
|
5
09115-06005-000 BOLT(6X16)2001-01-01~ |
09115-06005-000 |
US $1.28 |
||
|
6
|
6
09481-60401-000 FUSE(60A)2001-01-01~ |
09481-60401-000 |
from US $3.92 |
||
|
7
|
7
36620-54G00-000
ハーネスアッシ,インストゥルメントパネル
MT; 2001-01-01~ |
36620-54G00-000 |
— | ||
|
8
|
8
09481-10501-000 FUSE(10A)2001-01-01~ |
09481-10501-000 |
from US $1.06 |
||
|
9
|
9
09481-15501-000 FUSE(15A)2001-01-01~ |
09481-15501-000 |
from US $3.25 |
||
|
10
|
10
09481-20501-000 FUSE(20A)2001-01-01~ |
09481-20501-000 |
from US $2.28 |
||
|
11
|
11
36717-54G00-000
ラベル,フューズボックス
2001-01-01~ |
36717-54G00-000 |
— | ||
| replacement | |||||
|
11
|
11
36717-54G01-000
LABEL,FUSE BOX
2001-01-01~ |
36717-54G01-000 |
— | ||
|
12
|
12
02142-06123-000
Screw
2001-01-01~ |
02142-06123-000 |
— | ||
| replacements | |||||
|
12
|
12
02142-0612B-000 SCREW2001-01-01~ |
02142-0612B-000 |
from US $0.76 |
||
|
12
|
12
02142-0612A-000 SCREW2001-01-01~ |
02142-0612A-000 |
from US $0.80 |
||
|
13
|
13
03142-05123-000
Screw
2001-01-01~ |
03142-05123-000 |
— | ||
| replacement | |||||
|
13
|
13
03141-0512A-000 SCREWScrew, belt cooling duct 2001-01-01~ |
03141-0512A-000 |
from US $0.76 |
||
|
14
|
14
03142-05163-000
Screw
2001-01-01~ |
03142-05163-000 |
— | ||
| replacement | |||||
|
14
|
14
03141-0516A-000 SCREW2001-01-01~ |
03141-0516A-000 |
from US $0.80 |
||
|
15
|
15
09115-06001-000
Bolt, lh
2001-01-01~ |
09115-06001-000 |
— | ||
| replacement | |||||
|
15
|
15
09115-06005-000 BOLT(6X16)2001-01-01~ |
09115-06005-000 |
US $1.28 |
||
|
16
|
16
02162-06123-000
Bolt (6x12)
2001-01-01~ |
02162-06123-000 |
— | ||
| replacements | |||||
|
16
|
16
02162-0612B-000 SCREWBolt 2001-01-01~ |
02162-0612B-000 |
from US $0.80 |
||
|
16
|
16
02162-0612A-000 SCREWBolt, bracket 2001-01-01~ |
02162-0612A-000 |
from US $0.80 |
||
|
17
|
17
09404-06434-000
CLAMP(L:80 T:1.0)
2001-01-01~ |
09404-06434-000 |
— | ||
| replacement | |||||
|
17
|
17
09404-06036-000 Clamp(L:80)2001-01-01~ |
09404-06036-000 |
from US $1.82 |
||
|
18
|
18
09407-25401-000 CLAMP(L:235)Clamp (l:235) 2001-01-01~ |
09407-25401-000 |
from US $2.08 |
||
|
19
|
19
36630-54G10-000
ハーネスアッシ,フロア
サイドエアバッグナシ; 2WD; 2001-01-01~2001-02-01 |
36630-54G10-000 |
— | ||
|
19
|
19
36630-54G11-000
ハーネスアッシ,フロア
サイドエアバッグナシ; 2WD; 2001-02-01~2001-06-01 |
36630-54G11-000 |
— | ||
|
19
|
19
36630-54G13-000
ハーネスアッシ,フロア
サイドエアバッグナシ; 2WD; 2001-06-01~ |
36630-54G13-000 |
— | ||
| replacement | |||||
|
19
|
19
36630-54G14-000
ハーネスアッシ,フロア
サイドエアバッグナシ; 2WD; 2001-06-01~ |
36630-54G14-000 |
— | ||
|
19
|
19
36630-54G20-000
ハーネスアッシ,フロア
サイドエアバッグアリ; 2WD; 2001-01-01~2001-02-01 |
36630-54G20-000 |
— | ||
|
19
|
19
36630-54G21-000
ハーネスアッシ,フロア
サイドエアバッグアリ; 2WD; 2001-02-01~2001-06-01 |
36630-54G21-000 |
— | ||
|
19
|
19
36630-54G23-000
ハーネスアッシ,フロア
サイドエアバッグアリ; 2WD; 2001-06-01~ |
36630-54G23-000 |
— | ||
| replacement | |||||
|
19
|
19
36630-54G24-000
ハーネスアッシ,フロア
サイドエアバッグアリ; 2WD; 2001-06-01~ |
36630-54G24-000 |
— | ||
|
20
|
20
36639-74F00-000 DIODE2001-01-01~2001-02-01 |
36639-74F00-000 |
US $20.98 |
||
|
21
|
21
09115-06001-000
Bolt, lh
2001-01-01~ |
09115-06001-000 |
— | ||
| replacement | |||||
|
21
|
21
09115-06005-000 BOLT(6X16)2001-01-01~ |
09115-06005-000 |
US $1.28 |
||
|
22
|
22
36930-82010-000 COVER,HARNESSCover, roof wire フロア ハーネス カバー; 2001-01-01~ |
36930-82010-000 |
from US $1.73 |
||
|
23
|
23
36650-54G00-000
ハーネスアッシ,ワイヤリング,エンジン
MT; 2001-01-01~ |
36650-54G00-000 |
— | ||
|
24
|
24
09481-15501-000 FUSE(15A)2001-01-01~ |
09481-15501-000 |
from US $3.25 |
||
|
25
|
25
09481-30501-000 FUSE(30A)2001-01-01~ |
09481-30501-000 |
from US $1.08 |
||
|
26
|
26
09481-30401-000 FUSE(30A)2001-01-01~ |
09481-30401-000 |
from US $5.96 |
||
|
27
|
27
09481-60401-000 FUSE(60A)2001-01-01~ |
09481-60401-000 |
from US $3.92 |
||
|
28
|
28
09481-80301-000 FUSE(80A)2001-01-01~ |
09481-80301-000 |
from US $5.74 |
||
|
29
|
29
09138-06040-000 BOLT(6X10)2001-01-01~ |
09138-06040-000 |
US $1.52 |
||
|
30
|
30
36738-54GA0-000
カバー,フューズボックス
2001-01-01~ |
36738-54GA0-000 |
— | ||
| replacement | |||||
|
30
|
30
36738-54GB0-000 COVER,FUSE BOX2001-01-01~ |
36738-54GB0-000 |
US $10.16 |
||
|
31
|
31
38860-76F01-000 RELAY ASSYRelay, starting motor メインリレー; 2001-01-01~ |
38860-76F01-000 |
from US $24.91 |
||
|
32
|
32
36651-51G00-000 BRACKET,ENG HARN2001-01-01~ |
36651-51G00-000 |
US $2.36 |
||
|
33
|
33
01550-06123-000
Bolt
2001-01-01~ |
01550-06123-000 |
— | ||
| replacements | |||||
|
33
|
33
01550-0612B-000 BOLTBolt, clamp 2001-01-01~ |
01550-0612B-000 |
from US $0.76 |
||
|
33
|
33
01550-0612A-000 BOLT2001-01-01~ |
01550-0612A-000 |
from US $0.76 |
||
|
34
|
34
36651-62G10-000 BRACKET,ENG HARN2001-01-01~ |
36651-62G10-000 |
US $2.98 |
||
|
35
|
35
01550-08123-000
Bolt
2001-01-01~ |
01550-08123-000 |
— | ||
| replacements | |||||
|
35
|
35
01550-0812B-000 BoltPlug, drain 2001-01-01~ |
01550-0812B-000 |
from US $0.96 |
||
|
35
|
35
01550-0812A-000 BOLT2001-01-01~ |
01550-0812A-000 |
from US $0.91 |
||
|
36
|
36
36653-76G00-000 BRACKET2001-01-01~ |
36653-76G00-000 |
US $3.28 |
||
|
37
|
37
36653-80G00-000 BRACKET,O2 CONN2001-01-01~ |
36653-80G00-000 |
US $4.01 |
||
|
38
|
38
01550-06123-000
Bolt
2001-01-01~ |
01550-06123-000 |
— | ||
| replacements | |||||
|
38
|
38
01550-0612B-000 BOLTBolt, clamp 2001-01-01~ |
01550-0612B-000 |
from US $0.76 |
||
|
38
|
38
01550-0612A-000 BOLT2001-01-01~ |
01550-0612A-000 |
from US $0.76 |
||
|
39
|
39
36654-76G00-000 BRACKET,ENG HARN2001-01-01~ |
36654-76G00-000 |
US $3.28 |
||
|
40
|
40
01550-06123-000
Bolt
2001-01-01~ |
01550-06123-000 |
— | ||
| replacements | |||||
|
40
|
40
01550-0612B-000 BOLTBolt, clamp 2001-01-01~ |
01550-0612B-000 |
from US $0.76 |
||
|
40
|
40
01550-0612A-000 BOLT2001-01-01~ |
01550-0612A-000 |
from US $0.76 |
||
|
41
|
41
36995-81A10-000
ブラケット,インジェクタハーネス
2001-01-01~ |
36995-81A10-000 |
— | ||
| replacement | |||||
|
41
|
41
36995-81A11-000
BRACKET,ENG
2001-01-01~ |
36995-81A11-000 |
— | ||
|
42
|
42
01550-06123-000
Bolt
2001-01-01~ |
01550-06123-000 |
— | ||
| replacements | |||||
|
42
|
42
01550-0612B-000 BOLTBolt, clamp 2001-01-01~ |
01550-0612B-000 |
from US $0.76 |
||
|
42
|
42
01550-0612A-000 BOLT2001-01-01~ |
01550-0612A-000 |
from US $0.76 |
||
|
43
|
43
01550-10163-000
Bolt
2001-01-01~ |
01550-10163-000 |
— | ||
| replacements | |||||
|
43
|
43
01550-1016B-000 BoltPlug, oil gallery 2001-01-01~ |
01550-1016B-000 |
from US $0.96 |
||
|
43
|
43
01550-1016A-000 BoltPlug, oil gallery 2001-01-01~ |
01550-1016A-000 |
from US $4.96 |
||
|
44
|
44
36680-54G00-000
Harness assy,back-door
2001-01-01~2001-06-01 |
36680-54G00-000 |
— | ||
|
44
|
44
36680-54G01-000
ハーネスアッシ,バックドア
2001-06-01~ |
36680-54G01-000 |
— | ||
|
45
|
45
09132-06023-000 SCREW(6X16)2001-01-01~ |
09132-06023-000 |
US $16.90 |
||
|
46
|
46
36820-54G01-000
WIRE,DOME LAMP
2001-01-01~ |
36820-54G01-000 |
— | ||
|
47
|
47
36930-82010-000 COVER,HARNESSCover, roof wire 2001-01-01~ |
36930-82010-000 |
from US $1.73 |
||
|
48
|
48
36756-54G00-000
ワイヤ,ドライバドア
2001-01-01~ |
36756-54G00-000 |
— | ||
|
49
|
49
36757-54G00-000
ワイヤ,アシスタントドア
2001-01-01~ |
36757-54G00-000 |
— | ||
|
50
|
50
36751-54G00-000
WIRE,RR DR
2001-01-01~ |
36751-54G00-000 |
— | ||
|
51
|
51
36840-54G00-000 WIRE,FUEL PUMP2001-01-01~ |
36840-54G00-000 |
US $54.83 |
||
|
52
|
52
09404-08206-000 CLAMP(L:65 T:0.8)Clamp MT; 2001-01-01~ |
09404-08206-000 |
from US $1.22 |
||
|
53
|
53
36655-54G50-000 BRACKET,ENG HARN2001-01-01~ |
36655-54G50-000 |
US $2.13 |
||
|
54
|
54
01550-08163-000
Bolt, holder
MT; 2001-01-01~ |
01550-08163-000 |
— | ||
| replacements | |||||
|
54
|
54
01550-0816B-000 BOLTMT; 2001-01-01~ |
01550-0816B-000 |
from US $0.91 |
||
|
54
|
54
01550-0816A-000 BOLTBolt, rear MT; 2001-01-01~ |
01550-0816A-000 |
from US $0.91 |
||
|
59
|
59
38860-76F01-000 RELAY ASSYRelay, starting motor 2001-01-01~ |
38860-76F01-000 |
from US $24.91 |
||
|
60
|
60
38860-76F01-000 RELAY ASSYRelay, starting motor 2001-01-01~ |
38860-76F01-000 |
from US $24.91 |
||
|
61
|
61
38860-76F01-000 RELAY ASSYRelay, starting motor 2001-01-01~ |
38860-76F01-000 |
from US $24.91 |
||
|
62
|
62
38860-76F01-000 RELAY ASSYRelay, starting motor 2001-01-01~ |
38860-76F01-000 |
from US $24.91 |
||
