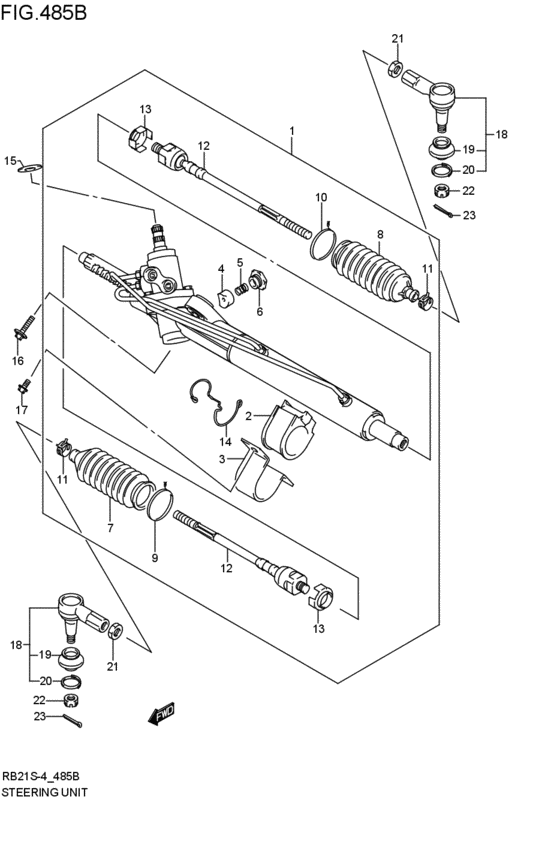

steering unit (2003-10-01~2004-08-01) Diagram Suzuki AERIO
- Year
- 2003 - 2011
- Sales region
- Japan
- Engine
- M15A
- drive
- 2WD
- Number of doors
- 5DR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
48580-54G12-000 GEAR,POWER STRG2003-10-01~2004-08-01 |
48580-54G12-000 |
US $1,425.76 |
||
|
2
|
2
48526-54G00-000 MOUNT,STRG RACK SIDE2003-10-01~2004-08-01 |
48526-54G00-000 |
US $10.24 |
||
|
3
|
3
48521-54G00-000 BRACKET,STRG GEAR RACK SIDE2003-10-01~2004-08-01 |
48521-54G00-000 |
US $9.44 |
||
|
4
|
4
48534-54G00-000 PLUNGER,STEERING RACK2003-10-01~2004-08-01 |
48534-54G00-000 |
US $13.87 |
||
|
5
|
5
48591-54G01-000 SPRING,RACK PLUNGER2003-10-01~2004-08-01 |
48591-54G01-000 |
US $4.56 |
||
|
6
|
6
48592-54G01-000 PLUG,ADJUSTING2003-10-01~2004-08-01 |
48592-54G01-000 |
US $11.22 |
||
|
7
|
7
48571-60G00-000 BOOT,STEERING PINION SIDE2003-10-01~2004-08-01 |
48571-60G00-000 |
US $24.32 |
||
|
8
|
8
48572-60G00-000 BOOT,STEERING RACK SIDE2003-10-01~2004-08-01 |
48572-60G00-000 |
US $24.32 |
||
|
9
|
9
48575-54G10-000 WIRE,RACK BOOT PINION SIDE2003-10-01~2004-08-01 |
48575-54G10-000 |
US $4.05 |
||
|
10
|
10
48575-65D00-000 WIRE,RACK BOOT2003-10-01~2004-08-01 |
48575-65D00-000 |
US $2.40 |
||
|
11
|
11
48871-60G00-000 CLIP,RACK BOOT2003-10-01~2004-08-01 |
48871-60G00-000 |
US $2.36 |
||
|
12
|
12
48830-54G00-000 TIE-ROD,STEERING2003-10-01~2004-08-01 |
48830-54G00-000 |
US $80.56 |
||
|
13
|
13
48841-54G00-000 WASHER,STEERING TIE ROD LOCK2003-10-01~2004-08-01 |
48841-54G00-000 |
US $7.18 |
||
|
14
|
14
48574-54G00-000
CLAMP,RETURN HOSE
2003-10-01~2004-08-01 |
48574-54G00-000 |
— | ||
|
15
|
15
48451-54G00-000 PACKING,STEERING GEAR CASE2003-10-01~2004-08-01 |
48451-54G00-000 |
US $4.38 |
||
|
16
|
16
48528-54G00-000 BOLT,STEERING GEAR BUSHING2003-10-01~2004-08-01 |
48528-54G00-000 |
US $3.64 |
||
|
17
|
17
09103-10216-000 BOLT(10X20)2003-10-01~2004-08-01 |
09103-10216-000 |
from US $6.68 |
||
|
18
|
18
48810-76G00-000 END,STEERING TIE-ROD2003-10-01~2004-08-01 |
48810-76G00-000 |
US $87.20 |
||
|
19
|
19
09401-23402-000 CLIP2003-10-01~2004-08-01 |
09401-23402-000 |
US $1.76 |
||
|
20
|
20
48819-60B00-000
BOOT SET
2003-10-01~2004-08-01 |
48819-60B00-000 |
— | ||
| replacements | |||||
|
20
|
20
48819-60B01-000
Boot Set
2003-10-01~2004-08-01 |
48819-60B01-000 |
— | ||
|
20
|
20
48800-60810-000 Boot Set2003-10-01~2004-08-01 |
48800-60810-000 |
US $19.20 |
||
|
21
|
21
09140-12030-000 NUTNut, tie rod (rh thread) 2003-10-01~2004-08-01 |
09140-12030-000 |
from US $1.76 |
||
|
22
|
22
08314-40123-000
Nut
2003-10-01~2004-08-01 |
08314-40123-000 |
— | ||
| replacement | |||||
|
22
|
22
08314-4012A-000 NUT2003-10-01~2004-08-01 |
08314-4012A-000 |
from US $0.95 |
||
|
23
|
23
04111-30206-000
コッタピン
2003-10-01~2004-08-01 |
04111-30206-000 |
— | ||
| replacement | |||||
|
23
|
23
04111-3020A-000 PIN2003-10-01~2004-08-01 |
04111-3020A-000 |
from US $0.76 |
||
