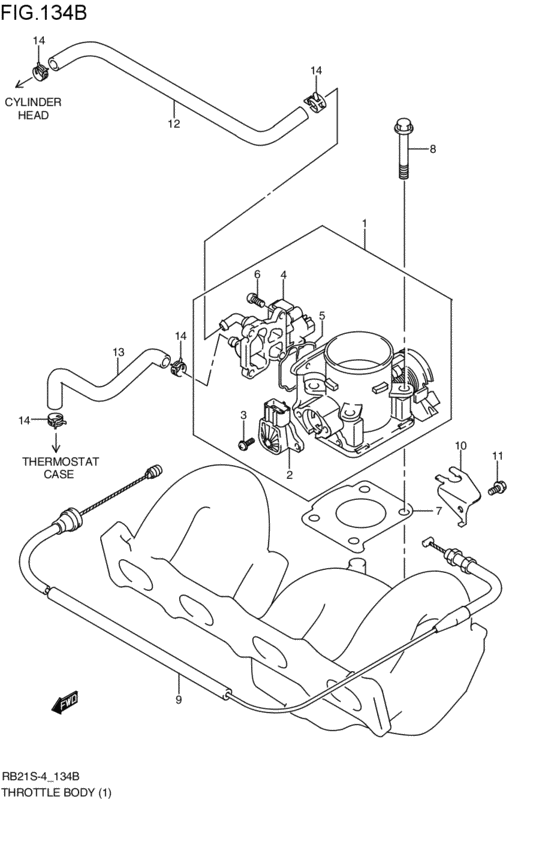

throttle body (M15A; 2003-10-01~2004-08-01) Diagram Suzuki AERIO
- Year
- 2003 - 2011
- Sales region
- Japan
- Engine
- M15A
- drive
- 2WD
- Number of doors
- 5DR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13400-69G02-000 BODY ASSY,THROTTLEM15A; 2003-10-01~2004-08-01 |
13400-69G02-000 |
US $1,099.20 |
||
|
2
|
2
13420-65D00-000
センサ,スロットルポジション
M15A; 2003-10-01~2004-08-01 |
13420-65D00-000 |
— | ||
| replacement | |||||
|
2
|
2
13420-65D01-000 SENSOR,THROTTLE POSITIONM15A; 2003-10-01~2004-08-01 |
13420-65D01-000 |
from US $196.11 |
||
|
3
|
3
13428-77G10-000
Screw
M15A; 2003-10-01~2004-08-01 |
13428-77G10-000 |
— | ||
| replacement | |||||
|
3
|
3
13428-77G1V-000 SCREW,4X12M15A; 2003-10-01~2004-08-01 |
13428-77G1V-000 |
US $1.52 |
||
|
4
|
4
18117-78F11-000 VALVE,ISCM15A; 2003-10-01~2004-08-01 |
18117-78F11-000 |
from US $267.44 |
||
|
5
|
5
14139-70G30-000 GASKET,ISC VALVEM15A; 2003-10-01~2004-08-01 |
14139-70G30-000 |
from US $2.43 |
||
|
6
|
6
13601-05148-000 SCREW(5X14)M15A; 2003-10-01~2004-08-01 |
13601-05148-000 |
from US $2.08 |
||
| replacement | |||||
|
6
|
6
13601-05148-XC0 SCREW(5X14)M15A; 2003-10-01~2004-08-01 |
13601-05148-XC0 |
from US $1.98 |
||
|
7
|
7
13421-54G00-000
ガスケット,スロットルボディ
M15A; 2003-10-01~2003-11-01 |
13421-54G00-000 |
— | ||
| replacement | |||||
|
7
|
7
13421-54G10-000 GASKET,THROTTLE BODYM15A; 2003-10-01~2003-11-01 |
13421-54G10-000 |
US $4.32 |
||
|
7
|
7
13421-54G10-000 GASKET,THROTTLE BODYM15A; 2003-11-01~2004-08-01 |
13421-54G10-000 |
US $4.32 |
||
|
8
|
8
01550-08553-000
Bolt
M15A; 2003-10-01~2004-08-01 |
01550-08553-000 |
— | ||
| replacements | |||||
|
8
|
8
01550-0855B-000 BoltM15A; 2003-10-01~2004-08-01 |
01550-0855B-000 |
from US $1.51 |
||
|
8
|
8
01550-0855A-000 BOLTBolt, gear holder M15A; 2003-10-01~2004-08-01 |
01550-0855A-000 |
from US $1.22 |
||
|
9
|
9
15910-54G01-000
ケーブルアッシ,アクセル
M15A; 2003-10-01~2004-08-01 |
15910-54G01-000 |
— | ||
| replacement | |||||
|
9
|
9
15910-54G02-000 CABLE ASSY,ACCELM15A; 2003-10-01~2004-08-01 |
15910-54G02-000 |
from US $43.56 |
||
|
10
|
10
15919-54G00-000 GUIDE,ACCEL CABLEM15A; 2003-10-01~2004-08-01 |
15919-54G00-000 |
US $6.92 |
||
|
11
|
11
01550-06123-000
Bolt
M15A; 2003-10-01~2004-08-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
11
|
11
01550-0612B-000 BOLTBolt, clamp M15A; 2003-10-01~2004-08-01 |
01550-0612B-000 |
from US $0.76 |
||
|
11
|
11
01550-0612A-000 BOLTM15A; 2003-10-01~2004-08-01 |
01550-0612A-000 |
from US $0.76 |
||
|
12
|
12
13491-80GA0-000 HOSE,WTR THROT BODY INLETM15A; 2003-10-01~2004-08-01 |
13491-80GA0-000 |
US $7.30 |
||
|
13
|
13
13492-80GA0-000 HOSE,WTR THROT BODY OUTLETM15A; 2003-10-01~2004-08-01 |
13492-80GA0-000 |
US $7.14 |
||
|
14
|
14
09401-12410-000 CLIPClip, filter outlet M15A; 2003-10-01~2004-08-01 |
09401-12410-000 |
from US $1.19 |
||
