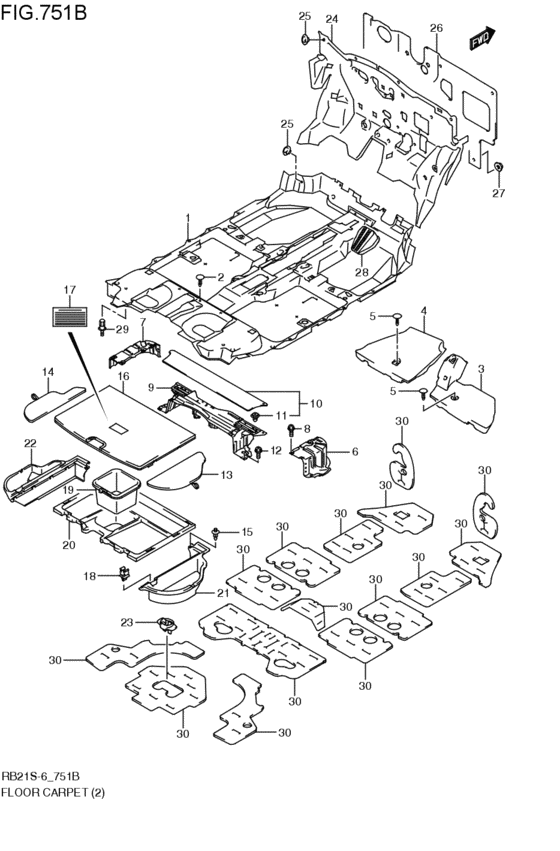

floor mat / carpet (5DR; 2005-12-01~2007-05-01) Diagram Suzuki AERIO
- Year
- 2005 - 2011
- Sales region
- Japan
- Engine
- M15A
- drive
- 2WD
- transmission
- AT
- Number of doors
- 5DR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
75110-54GA1-R8V
Carpet,floor(gray)
グレ-; 5DR; 2005-12-01~2007-05-01 |
75110-54GA1-R8V |
— | ||
|
2
|
2
09409-10302-P4Z CLIP(GRAY)グレ-; 5DR; 2005-12-01~2007-05-01 |
09409-10302-P4Z |
US $12.90 |
||
|
3
|
3
75621-54G00-000
PAD,DASH LOWER,R
5DR; 2005-12-01~2007-05-01 |
75621-54G00-000 |
— | ||
|
4
|
4
75671-54G00-000
PAD,DASH LOWER,L
5DR; 2005-12-01~2007-05-01 |
75671-54G00-000 |
— | ||
|
5
|
5
09409-08321-5ES CLIP(BLACK)ブラック; 5DR; 2005-12-01~2007-05-01 |
09409-08321-5ES |
US $1.76 |
||
|
6
|
6
75434-54G01-000
PANEL,RR SEAT SUPPORT,R
5DR; 2005-12-01~2007-05-01 |
75434-54G01-000 |
— | ||
|
7
|
7
75435-54G01-000
PANEL,RR SEAT SUPPORT,L
5DR; 2005-12-01~2007-05-01 |
75435-54G01-000 |
— | ||
|
8
|
8
02162-06123-000
Bolt (6x12)
5DR; 2005-12-01~2007-05-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
8
|
8
02162-0612B-000 SCREWBolt 5DR; 2005-12-01~2007-05-01 |
02162-0612B-000 |
from US $0.80 |
||
|
8
|
8
02162-0612A-000 SCREWBolt, bracket 5DR; 2005-12-01~2007-05-01 |
02162-0612A-000 |
from US $0.80 |
||
|
9
|
9
75420-54G00-000
PLATE,RR FLOOR UPR FRONT
5DR; 2005-12-01~2007-05-01 |
75420-54G00-000 |
— | ||
|
10
|
10
75490-54G00-P9S COVER,RR FLR UPR PLATEグレ-; 5DR; 2005-12-01~2007-05-01 |
75490-54G00-P9S |
US $29.26 |
||
|
11
|
11
09409-08337-000 CLIP5DR; 2005-12-01~2007-05-01 |
09409-08337-000 |
US $14.70 |
||
|
12
|
12
02162-06123-000
Bolt (6x12)
5DR; 2005-12-01~2007-05-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
12
|
12
02162-0612B-000 SCREWBolt 5DR; 2005-12-01~2007-05-01 |
02162-0612B-000 |
from US $0.80 |
||
|
12
|
12
02162-0612A-000 SCREWBolt, bracket 5DR; 2005-12-01~2007-05-01 |
02162-0612A-000 |
from US $0.80 |
||
|
13
|
13
75470-54G01-P9S
COVER,RR FLR SIDE BOX,R
グレ-; 5DR; 2005-12-01~2007-05-01 |
75470-54G01-P9S |
— | ||
|
14
|
14
75480-54G01-P9S
Cover,rr flr side box,l
グレ-; 5DR; 2005-12-01~2007-05-01 |
75480-54G01-P9S |
— | ||
|
15
|
15
09409-07308-5PK CLIP(BLACK)ブラック; 5DR; 2005-12-01~2007-05-01 |
09409-07308-5PK |
from US $0.95 |
||
|
16
|
16
75440-54G11-P9S
COVER,SPARE TIRE
グレ-; 5DR; 2005-12-01~2007-05-01 |
75440-54G11-P9S |
— | ||
|
17
|
17
79167-50B00-000
プラカード,テンポラリタイヤ
5DR:2WD; 2005-12-01~2007-05-01 |
79167-50B00-000 |
— | ||
|
18
|
18
76215-74G00-000 HOLDER,LUG LID5DR; 2005-12-01~2007-05-01 |
76215-74G00-000 |
from US $1.60 |
||
|
19
|
19
75450-63G20-000 BOX,LUGGAGE FLOOR5DR:2WD; 2005-12-01~2007-05-01 |
75450-63G20-000 |
US $39.74 |
||
|
20
|
20
75463-54G10-000
BOX,TIRE COVER UNDER
5DR:2WD; 2005-12-01~2007-05-01 |
75463-54G10-000 |
— | ||
|
21
|
21
75461-54G00-000
BOX,RR FLOOR SIDE,R
5DR; 2005-12-01~2007-05-01 |
75461-54G00-000 |
— | ||
|
22
|
22
75462-54G00-000
Box,rr floor side,l
5DR; 2005-12-01~2007-05-01 |
75462-54G00-000 |
— | ||
|
23
|
23
75450-60G00-000
HOLDER,SPARE TIRE
5DR:2WD; 2005-12-01~2007-05-01 |
75450-60G00-000 |
— | ||
|
24
|
24
75210-54G02-000 SILENCER,DASH PANEL5DR; 2005-12-01~2007-05-01 |
75210-54G02-000 |
US $198.72 |
||
|
25
|
25
09148-05037-000 CLIP5DR; 2005-12-01~2007-05-01 |
09148-05037-000 |
from US $1.24 |
||
|
26
|
26
72443-54G03-000 SILENCER,DASH PANEL OUTER5DR; 2005-12-01~2007-05-01 |
72443-54G03-000 |
US $66.98 |
||
|
27
|
27
09148-05048-000 NUT5DR; 2005-12-01~2007-05-01 |
09148-05048-000 |
US $0.96 |
||
|
28
|
28
75451-54G20-000
PEDAL,FOOTREST
5DR; 2005-12-01~2007-05-01 |
75451-54G20-000 |
— | ||
|
29
|
29
09113-06005-000 BOLT(6X16)5DR; 2005-12-01~2007-05-01 |
09113-06005-000 |
US $21.30 |
||
|
30
|
30
99611-60A01-000 SHEET,SILENCER 800X1000X35DR; 2005-12-01~2007-05-01 |
99611-60A01-000 |
US $62.40 |
||
