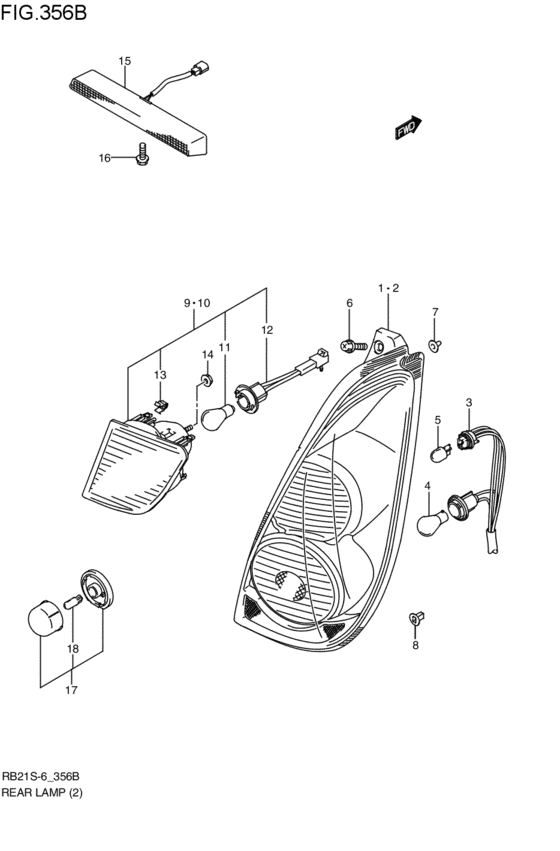

rear lamp (5DR; 2005-12-01~2007-05-01) Diagram Suzuki AERIO
- Year
- 2005 - 2011
- Sales region
- Japan
- Engine
- M15A
- drive
- 2WD
- transmission
- AT
- Number of doors
- 5DR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35650-54G10-000 LAMP UNIT,RR COMB,R5DR; 2005-12-01~2007-05-01 |
35650-54G10-000 |
from US $109.30 |
||
|
2
|
2
35670-54G10-000 LAMP UNIT,RR COMB,L5DR; 2005-12-01~2007-05-01 |
35670-54G10-000 |
US $435.20 |
||
|
3
|
3
35658-54G10-000
Socket & cord assy
5DR; 2005-12-01~2007-05-01 |
35658-54G10-000 |
— | ||
| replacement | |||||
|
3
|
3
35658-54G12-000 SOCKET&CORD ASSY5DR; 2005-12-01~2007-05-01 |
35658-54G12-000 |
US $29.44 |
||
|
4
|
4
09471-12083-000 BULB(12V21/5W)STANLEY,49641A; 5DR; 2005-12-01~2007-05-01 |
09471-12083-000 |
from US $4.75 |
||
| replacement | |||||
|
4
|
4
09471-12128-000 BULB(12V21/5W,BF141-49642A)STANLEY,49641A; 5DR; 2005-12-01~2007-05-01 |
09471-12128-000 |
from US $7.20 |
||
|
5
|
5
09471-12191-000 BULB(12V21W)5DR; 2005-12-01~2007-05-01 |
09471-12191-000 |
from US $3.87 |
||
|
6
|
6
02162-0616A-000 SCREW5DR; 2005-12-01~2007-05-01 |
02162-0616A-000 |
from US $1.04 |
||
| replacement | |||||
|
6
|
6
02162-0616B-000 SCREWBolt, adjust 5DR; 2005-12-01~2007-05-01 |
02162-0616B-000 |
from US $0.80 |
||
|
7
|
7
35153-63G00-000 GROMMET,RR COMB LAMP5DR; 2005-12-01~2007-05-01 |
35153-63G00-000 |
US $2.69 |
||
|
8
|
8
35153-54G00-000 GROMMET,RR COMB LAMP5DR; 2005-12-01~2007-05-01 |
35153-54G00-000 |
US $1.95 |
||
|
9
|
9
36250-54G00-000 LAMP ASSY,BACK UP,R5DR; 2005-12-01~2007-05-01 |
36250-54G00-000 |
US $56.67 |
||
|
10
|
10
36270-54G00-000 LAMP ASSY,BACK UP,L5DR; 2005-12-01~2007-05-01 |
36270-54G00-000 |
US $134.32 |
||
|
11
|
11
09471-12045-000 BULB(12V21W)STANLEY,A4957E; 5DR; 2005-12-01~2007-05-01 |
09471-12045-000 |
from US $2.54 |
||
|
12
|
12
36258-54G00-000 SOCKET&CORD5DR; 2005-12-01~2007-05-01 |
36258-54G00-000 |
US $11.22 |
||
|
13
|
13
09409-08326-000 CLIP5DR; 2005-12-01~2007-05-01 |
09409-08326-000 |
from US $0.76 |
||
|
14
|
14
08316-10063-000
Nut
5DR; 2005-12-01~2007-05-01 |
08316-10063-000 |
— | ||
| replacement | |||||
|
14
|
14
08316-1006B-000 NUT5DR; 2005-12-01~2007-05-01 |
08316-1006B-000 |
from US $0.76 |
||
|
15
|
15
35810-82D00-000 LAMP ASSY,HIGH MT STOP5DR; 2005-12-01~2007-05-01 |
35810-82D00-000 |
US $90.53 |
||
|
16
|
16
02112-1412A-000 SCREW5DR; 2005-12-01~2007-05-01 |
02112-1412A-000 |
US $12.50 |
||
|
17
|
17
35910-75F30-000
Lamp assy,license
5DR; 2005-12-01~2007-05-01 |
35910-75F30-000 |
— | ||
| replacement | |||||
|
17
|
17
35910-75F31-000 Lamp assy,license5DR; 2005-12-01~2007-05-01 |
35910-75F31-000 |
US $14.65 |
||
|
18
|
18
09471-12216-000 BULB(12V5W)Bulb (12v5w) 5DR; 2005-12-01~2007-05-01 |
09471-12216-000 |
from US $2.84 |
||
