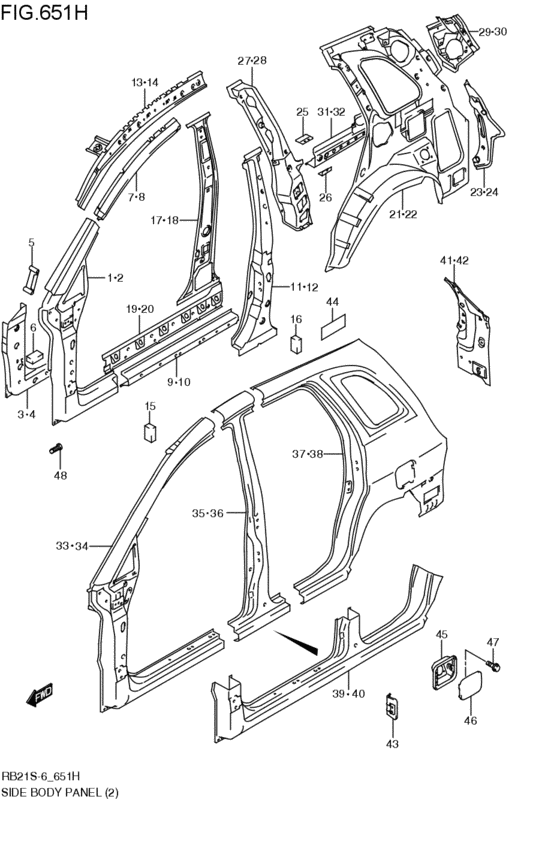

side body panel (5DR; 2005-12-01~2007-05-01) Diagram Suzuki AERIO
- Year
- 2005 - 2011
- Sales region
- Japan
- Engine
- M15A
- drive
- 2WD
- transmission
- AT
- Number of doors
- 5DR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
63141-54G00-000
REINFORCEMENT,FR DOOR HNG,R
5DR; 2005-12-01~2007-05-01 |
63141-54G00-000 |
— | ||
|
2
|
2
63541-54G00-000
REINFORCEMENT,FR DOOR HNG,L
5DR; 2005-12-01~2007-05-01 |
63541-54G00-000 |
— | ||
|
3
|
3
63142-54G00-000
BRACE,FR DR HINGE REINF,R
5DR; 2005-12-01~2007-05-01 |
63142-54G00-000 |
— | ||
|
4
|
4
63542-54G00-000
BRACE,FR DR HINGE REINF,L
5DR; 2005-12-01~2007-05-01 |
63542-54G00-000 |
— | ||
|
5
|
5
63146-54G00-000
SPACER,STRG SPRT MBR
5DR; 2005-12-01~2007-05-01 |
63146-54G00-000 |
— | ||
|
6
|
6
75242-82300-000
パッド
5DR; 2005-12-01~2007-05-01 |
75242-82300-000 |
— | ||
| replacement | |||||
|
6
|
6
75242-8230V-000 PAD5DR; 2005-12-01~2007-05-01 |
75242-8230V-000 |
US $3.20 |
||
|
7
|
7
63151-54G00-000 REINFORCEMENT,FR PILLAR UPR,R5DR; 2005-12-01~2007-05-01 |
63151-54G00-000 |
US $81.70 |
||
|
8
|
8
63551-54G00-000 REINFORCEMENT,FR PILLAR UPR,L5DR; 2005-12-01~2007-05-01 |
63551-54G00-000 |
US $81.70 |
||
|
9
|
9
63231-54G00-000
STRENGTH,SIDE SILL OUTER,R
5DR; 2005-12-01~2007-05-01 |
63231-54G00-000 |
— | ||
|
10
|
10
63631-54G00-000
STRENGTH,SIDE SILL OUTER,L
5DR; 2005-12-01~2007-05-01 |
63631-54G00-000 |
— | ||
|
11
|
11
63240-54G10-000
REINFORCEMENT,RR DOOR HNG,R
5DR; 2005-12-01~2007-05-01 |
63240-54G10-000 |
— | ||
|
12
|
12
63640-54G10-000
REINFORCEMENT,RR DOOR HNG,L
5DR; 2005-12-01~2007-05-01 |
63640-54G10-000 |
— | ||
|
13
|
13
63120-54G10-000 RAIL,ROOF SIDE INNER,R5DR; 2005-12-01~2007-05-01 |
63120-54G10-000 |
US $104.51 |
||
|
14
|
14
63520-54G10-000 RAIL,ROOF SIDE INNER,L5DR; 2005-12-01~2007-05-01 |
63520-54G10-000 |
US $104.51 |
||
|
15
|
15
75242-82300-000
パッド
5DR; 2005-12-01~2007-05-01 |
75242-82300-000 |
— | ||
| replacement | |||||
|
15
|
15
75242-8230V-000 PAD5DR; 2005-12-01~2007-05-01 |
75242-8230V-000 |
US $3.20 |
||
|
16
|
16
75242-82300-000
パッド
5DR; 2005-12-01~2007-05-01 |
75242-82300-000 |
— | ||
| replacement | |||||
|
16
|
16
75242-8230V-000 PAD5DR; 2005-12-01~2007-05-01 |
75242-8230V-000 |
US $3.20 |
||
|
17
|
17
63211-54G00-000 PANEL,CTR PILLAR INNER,R5DR; 2005-12-01~2007-05-01 |
63211-54G00-000 |
US $91.63 |
||
|
18
|
18
63611-54G00-000 PANEL,CTR PILLAR INNER,L5DR; 2005-12-01~2007-05-01 |
63611-54G00-000 |
US $83.90 |
||
|
19
|
19
63221-54G00-000
STRENGTH,SIDE SILL,R
5DR; 2005-12-01~2007-05-01 |
63221-54G00-000 |
— | ||
|
20
|
20
63621-54G00-000
STRENGTH,SIDE SILL,L
5DR; 2005-12-01~2007-05-01 |
63621-54G00-000 |
— | ||
|
21
|
21
63311-54G02-000
パネル,クォータインナ,ライト
5DR; 2005-12-01~2006-03-01 |
63311-54G02-000 |
— | ||
| replacements | |||||
|
21
|
21
63311-54G03-000
PANEL,QUARTER INNER,R
5DR; 2005-12-01~2006-03-01 |
63311-54G03-000 |
— | ||
|
21
|
21
77111-63J00-000 CAP5DR; 2005-12-01~2006-03-01 |
77111-63J00-000 |
US $1.60 |
||
|
21
|
21
63311-54G03-000
PANEL,QUARTER INNER,R
5DR; 2006-03-01~2007-05-01 |
63311-54G03-000 |
— | ||
|
22
|
22
63711-54G00-000
パネル,クォータインナ,レフト
5DR; 2005-12-01~2006-03-01 |
63711-54G00-000 |
— | ||
| replacements | |||||
|
22
|
22
63711-54G01-000 PANEL,QUARTER INNER,L5DR; 2005-12-01~2006-03-01 |
63711-54G01-000 |
US $327.52 |
||
|
22
|
22
77111-63J00-000 CAP5DR; 2005-12-01~2006-03-01 |
77111-63J00-000 |
US $1.60 |
||
|
22
|
22
63711-54G01-000 PANEL,QUARTER INNER,L5DR; 2006-03-01~2007-05-01 |
63711-54G01-000 |
US $327.52 |
||
|
23
|
23
63312-54G00-000
PANEL,RR LAMP HOUSE INR,R
5DR; 2005-12-01~2007-05-01 |
63312-54G00-000 |
— | ||
|
24
|
24
63712-54G00-000 PANEL,RR LAMP HOUSE INR,L5DR; 2005-12-01~2007-05-01 |
63712-54G00-000 |
US $52.99 |
||
|
25
|
25
63313-63G00-000 BRACE,RR WHEEL HOUSE,R5DR; 2005-12-01~2007-05-01 |
63313-63G00-000 |
US $4.05 |
||
|
26
|
26
63713-63G00-000 BRACE,RR WHEEL HOUSE,L5DR; 2005-12-01~2007-05-01 |
63713-63G00-000 |
US $4.05 |
||
|
27
|
27
63320-54G00-000
REINFORCEMENT,QTR INR,R
5DR; 2005-12-01~2007-05-01 |
63320-54G00-000 |
— | ||
|
28
|
28
63720-54G00-000
REINFORCEMENT,QTR INR,L
5DR; 2005-12-01~2007-05-01 |
63720-54G00-000 |
— | ||
|
29
|
29
63324-54G10-000
EXT,RR PILLAR INR UPR,R
5DR; 2005-12-01~2007-05-01 |
63324-54G10-000 |
— | ||
|
30
|
30
63724-54G00-000 EXT,RR PILLAR INR UPR,L5DR; 2005-12-01~2007-05-01 |
63724-54G00-000 |
US $40.11 |
||
|
31
|
31
63340-54G00-000
Member comp,qtr window lower,r
5DR; 2005-12-01~2007-05-01 |
63340-54G00-000 |
— | ||
|
32
|
32
63741-54G00-000
MEMBER,QTR WINDOW LWR,L
5DR; 2005-12-01~2007-05-01 |
63741-54G00-000 |
— | ||
|
33
|
33
64111-54GV0-P11 PANEL,A-PILLAR,R5DR; 2005-12-01~2007-05-01 |
64111-54GV0-P11 |
US $323.84 |
||
|
34
|
34
64511-54GV0-P11
PANEL,A-PILLAR,L
5DR; 2005-12-01~2007-05-01 |
64511-54GV0-P11 |
— | ||
|
35
|
35
64111-54GV0-P21
PANEL,B-PILLAR,R
5DR; 2005-12-01~2007-05-01 |
64111-54GV0-P21 |
— | ||
|
36
|
36
64511-54GV0-P21
PANEL,B-PILLAR,L
5DR; 2005-12-01~2007-05-01 |
64511-54GV0-P21 |
— | ||
|
37
|
37
64111-54GV0-P31 PANEL,QUARTER,R5DR; 2005-12-01~2007-05-01 |
64111-54GV0-P31 |
US $397.76 |
||
|
38
|
38
64511-54GV0-P31 PANEL,QUARTER,L5DR; 2005-12-01~2007-05-01 |
64511-54GV0-P31 |
US $397.76 |
||
|
39
|
39
64111-54GV0-P07
PANEL,SIDE SILL,R
5DR; 2005-12-01~2007-05-01 |
64111-54GV0-P07 |
— | ||
|
40
|
40
64511-54GV0-P07 PANEL,SIDE SILL,L5DR; 2005-12-01~2007-05-01 |
64511-54GV0-P07 |
US $261.28 |
||
|
41
|
41
64140-54G00-000 PANEL,RR LAMP HOUSE OTR,R5DR; 2005-12-01~2007-05-01 |
64140-54G00-000 |
US $73.97 |
||
|
42
|
42
64540-54G00-000 PANEL,RR LAMP HOUSE OTR,L5DR; 2005-12-01~2007-05-01 |
64540-54G00-000 |
US $73.97 |
||
|
43
|
43
64440-60G01-000 REINFORCEMENT,RR DOOR STRIKER5DR; 2005-12-01~2007-05-01 |
64440-60G01-000 |
US $12.99 |
||
|
44
|
44
83971-54F00-000 SHEET 185X75X1.85DR; 2005-12-01~2007-05-01 |
83971-54F00-000 |
US $4.45 |
||
|
45
|
45
64571-54G02-000 BOX,FUEL FILLER5DR; 2005-12-01~2007-05-01 |
64571-54G02-000 |
US $33.12 |
||
|
46
|
46
64850-54G00-000 DOOR,FUEL FILLER5DR; 2005-12-01~2007-05-01 |
64850-54G00-000 |
US $52 |
||
|
47
|
47
01550-06123-000
Bolt
5DR; 2005-12-01~2007-05-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
47
|
47
01550-0612B-000 BOLTBolt, clamp 5DR; 2005-12-01~2007-05-01 |
01550-0612B-000 |
from US $0.76 |
||
|
47
|
47
01550-0612A-000 BOLT5DR; 2005-12-01~2007-05-01 |
01550-0612A-000 |
from US $0.76 |
||
|
48
|
48
09119-05018-000 BOLT(8X35)5DR; 2005-12-01~2007-05-01 |
09119-05018-000 |
US $9.60 |
||
