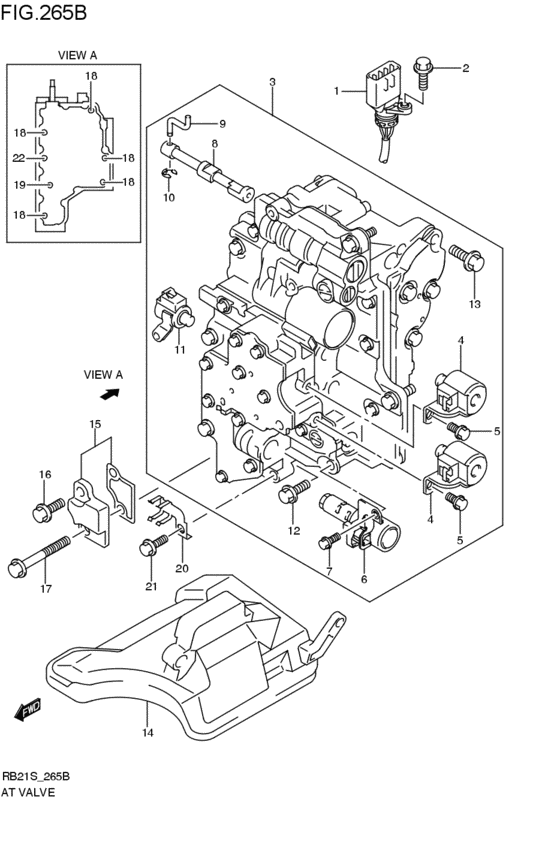

at - valve (AT; 2001-01-01~) Diagram Suzuki AERIO
- Year
- 2000 - 2011
- Sales region
- Japan
- Engine
- M15A
- drive
- 2WD
- transmission
- AT
- body
- X
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24892-65G10-000 HARNESS,SOLENOID WIREAT; 2001-01-01~ |
24892-65G10-000 |
US $248.40 |
||
|
2
|
2
29999-57B00-000 BoltAT; 2001-01-01~ |
29999-57B00-000 |
US $5.89 |
||
|
3
|
3
26500-54G10-000
バルブアッシ,トランスミッション
AT; 2001-01-01~ |
26500-54G10-000 |
— | ||
|
4
|
4
26426-60G11-000 SOLENOID,T/M CONTROLAT; 2001-01-01~ |
26426-60G11-000 |
US $169.60 |
||
|
5
|
5
29983-57B00-000 BOLT,SOLENOID NO.2AT; 2001-01-01~ |
29983-57B00-000 |
US $5.85 |
||
|
6
|
6
26427-65G10-000
ソレノイド,デューティコントロール
AT; 2001-01-01~ |
26427-65G10-000 |
— | ||
| replacement | |||||
|
6
|
6
26427-65G11-000 SOLENOID,T/M DUTY CONTROLAT; 2001-01-01~ |
26427-65G11-000 |
US $200.56 |
||
|
7
|
7
26428-60G10-000 BOLT,SOLENOIDAT; 2001-01-01~ |
26428-60G10-000 |
US $3.75 |
||
|
8
|
8
26591-60G10-000 VALVE,MANUALAT; 2001-01-01~ |
26591-60G10-000 |
US $42.69 |
||
|
9
|
9
26592-60G10-000 ROD,MANUAL VALVEAT; 2001-01-01~ |
26592-60G10-000 |
US $8.98 |
||
|
10
|
10
26593-60G10-000 E-RING,MANUAL VALVEAT; 2001-01-01~ |
26593-60G10-000 |
US $3.53 |
||
|
11
|
11
26435-65G11-000 SOLENOID,N-CONTROLAT; 2001-01-01~ |
26435-65G11-000 |
US $154.56 |
||
|
12
|
12
29974-57B00-000 BOLT,DETENT SPRINGAT; 2001-01-01~ |
29974-57B00-000 |
US $6.48 |
||
|
13
|
13
26579-60G10-000 BOLT,RR VALVE BODY COVERAT; 2001-01-01~ |
26579-60G10-000 |
US $3.53 |
||
|
14
|
14
26445-60G10-000 STRAINER,OILAT; 2001-01-01~ |
26445-60G10-000 |
US $132.11 |
||
|
15
|
15
26441-60G10-000 COVER,SUCTIONAT; 2001-01-01~ |
26441-60G10-000 |
US $16.52 |
||
|
16
|
16
26443-60G10-000 BoltAT; 2001-01-01~ |
26443-60G10-000 |
US $3.20 |
||
|
17
|
17
26446-60G10-000 BOLT,VALVE BODY NO.3AT; 2001-01-01~ |
26446-60G10-000 |
US $4.05 |
||
|
18
|
18
26443-60G10-000 BoltAT; 2001-01-01~ |
26443-60G10-000 |
US $3.20 |
||
|
19
|
19
26447-65G10-000 BOLT,VALVE BODY NO.4AT; 2001-01-01~ |
26447-65G10-000 |
US $2.72 |
||
|
20
|
20
26448-65G10-000 CLAMP,ATF TEMP WIRINGAT; 2001-01-01~ |
26448-65G10-000 |
US $3.57 |
||
|
21
|
21
26449-65G10-000 BoltAT; 2001-01-01~ |
26449-65G10-000 |
US $1.80 |
||
|
22
|
22
26444-60G10-000 BOLT,VALVE BODY NO.2AT; 2001-01-01~ |
26444-60G10-000 |
US $4.05 |
||
