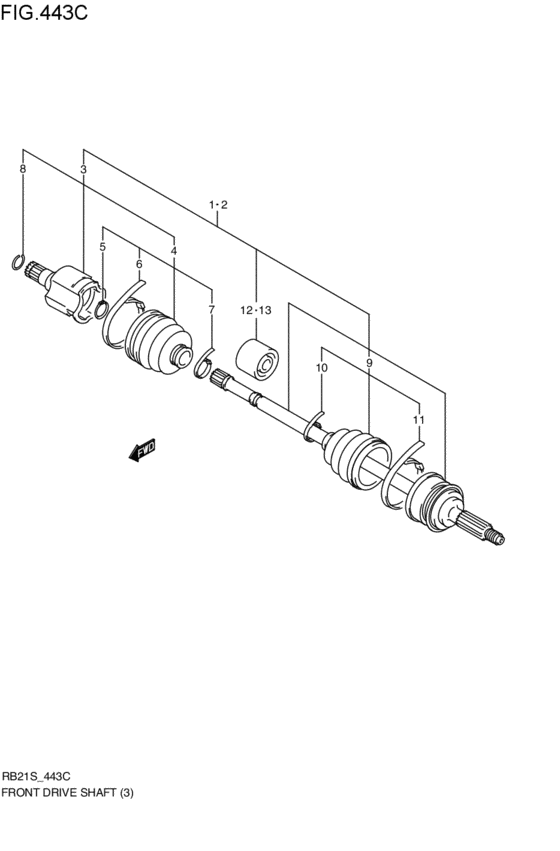

front-drive shaft (2WD:AT; 2001-01-01~) Diagram Suzuki AERIO
- Year
- 2000 - 2011
- Sales region
- Japan
- Engine
- M15A
- drive
- 2WD
- transmission
- AT
- body
- X
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
44101-54G60-000
Shaft assy,front drive,r
2WD:AT; 2001-01-01~ |
44101-54G60-000 |
— | ||
|
2
|
2
44102-54G40-000
SHAFT ASSY,FRONT DRIVE,L
2WD:AT; 2001-01-01~ |
44102-54G40-000 |
— | ||
|
3
|
3
44117-54G60-000
JOINT ASSY,DIFF SIDE
2WD:AT; 2001-01-01~ |
44117-54G60-000 |
— | ||
|
4
|
4
44119-54G50-000 BOOT SET,DIFF SIDE2WD:AT; 2001-01-01~ |
44119-54G50-000 |
US $55.94 |
||
|
5
|
5
44211-50F00-000 CIRCLIP2WD:AT; 2001-01-01~ |
44211-50F00-000 |
US $4.23 |
||
|
6
|
6
44222-50F00-000 BAND,BOOT2WD:AT; 2001-01-01~ |
44222-50F00-000 |
US $7.91 |
||
|
7
|
7
44223-50F00-000
BAND,BOOT
2WD:AT; 2001-01-01~ |
44223-50F00-000 |
— | ||
|
8
|
8
44177-54G50-000
RING,SNAP
2WD:AT; 2001-01-01~ |
44177-54G50-000 |
— | ||
|
9
|
9
44118-54G50-000
BOOT SET,WHEEL SIDE
2WD:AT; 2001-01-01~ |
44118-54G50-000 |
— | ||
|
10
|
10
44124-54G50-000
BAND,BOOT
2WD:AT; 2001-01-01~ |
44124-54G50-000 |
— | ||
|
11
|
11
44122-54G50-000 BAND,BOOT2WD:AT; 2001-01-01~ |
44122-54G50-000 |
US $8.87 |
||
|
12
|
12
44125-54G60-000
DAMPER SET,R
2WD:AT; 2001-01-01~ |
44125-54G60-000 |
— | ||
|
13
|
13
44125-54G50-000
DAMPER SET,L
2WD:AT; 2001-01-01~ |
44125-54G50-000 |
— |
