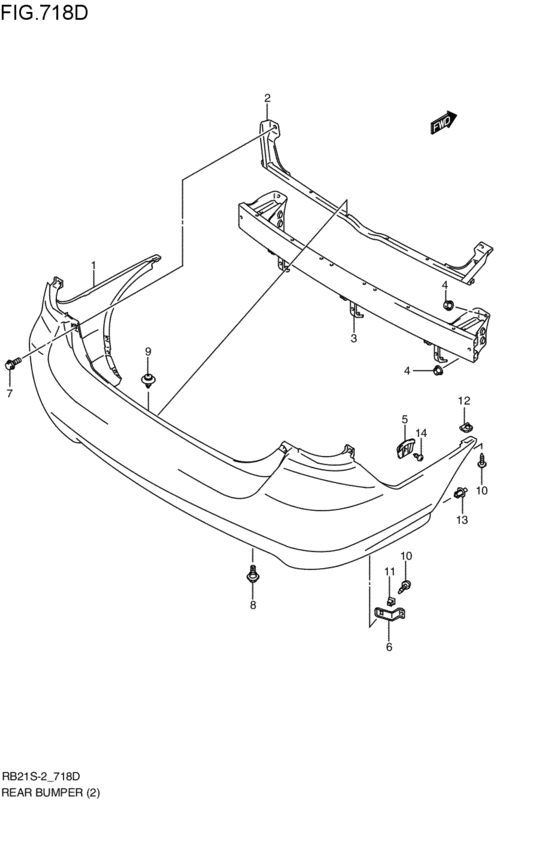

rear bumper (5DR; 2001-11-01~) Diagram Suzuki AERIO
- Year
- 2001 - 2011
- Sales region
- Japan
- drive
- 2WD
- transmission
- AT
- Number of doors
- 5DR
- body
- XV
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
71811-54G00-799 BUMPER,RR(PRIMARY)プライマリ-; 5DR; 2001-11-01~ |
71811-54G00-799 |
US $475.20 |
||
|
2
|
2
71840-54G00-000 REINFORCEMENT,RR BUMPER UPR5DR; 2001-11-01~ |
71840-54G00-000 |
US $62.93 |
||
|
3
|
3
65550-54G00-000 MEMBER,REAR BUMPER5DR; 2001-11-01~ |
65550-54G00-000 |
US $204.24 |
||
|
4
|
4
08316-10083-000
Nut
5DR; 2001-11-01~ |
08316-10083-000 |
— | ||
| replacement | |||||
|
4
|
4
08316-1008B-000 NUT5DR; 2001-11-01~ |
08316-1008B-000 |
from US $0.76 |
||
|
5
|
5
71851-60G00-000 HOLDER,BUMPER SIDE5DR; 2001-11-01~ |
71851-60G00-000 |
US $9.60 |
||
|
6
|
6
71871-54G00-000 BRACKET,RR BUMPER SIDE5DR; 2001-11-01~ |
71871-54G00-000 |
US $4.93 |
||
|
7
|
7
09103-06240-000 BOLT(6X16)5DR; 2001-11-01~ |
09103-06240-000 |
from US $1.04 |
||
|
8
|
8
09111-06061-000
Bolt,6x16.5
5DR; 2001-11-01~ |
09111-06061-000 |
— | ||
| replacement | |||||
|
8
|
8
09111-06094-000 BOLT(6X16.5)5DR; 2001-11-01~ |
09111-06094-000 |
from US $0.96 |
||
|
9
|
9
09409-07325-5PK CLIP(BLACK)ブラック; 5DR; 2001-11-01~ |
09409-07325-5PK |
US $1.60 |
||
|
10
|
10
09136-05057-000
Screw, fr turnsignal (5x20)
5DR; 2001-11-01~ |
09136-05057-000 |
— | ||
| replacement | |||||
|
10
|
10
09136-05068-000 SCREW(5X20)5DR; 2001-11-01~ |
09136-05068-000 |
from US $0.96 |
||
|
11
|
11
09148-05018-000 NUT5DR; 2001-11-01~ |
09148-05018-000 |
US $0.91 |
||
|
12
|
12
09148-05028-000 NUT5DR; 2001-11-01~ |
09148-05028-000 |
US $1.28 |
||
|
13
|
13
09409-07325-5PK CLIP(BLACK)ブラック; 5DR; 2001-11-01~ |
09409-07325-5PK |
US $1.60 |
||
|
14
|
14
03512-05123-000
Screw
5DR; 2001-11-01~ |
03512-05123-000 |
— | ||
| replacement | |||||
|
14
|
14
03511-0512A-000 SCREW5DR; 2001-11-01~ |
03511-0512A-000 |
from US $0.80 |
||
