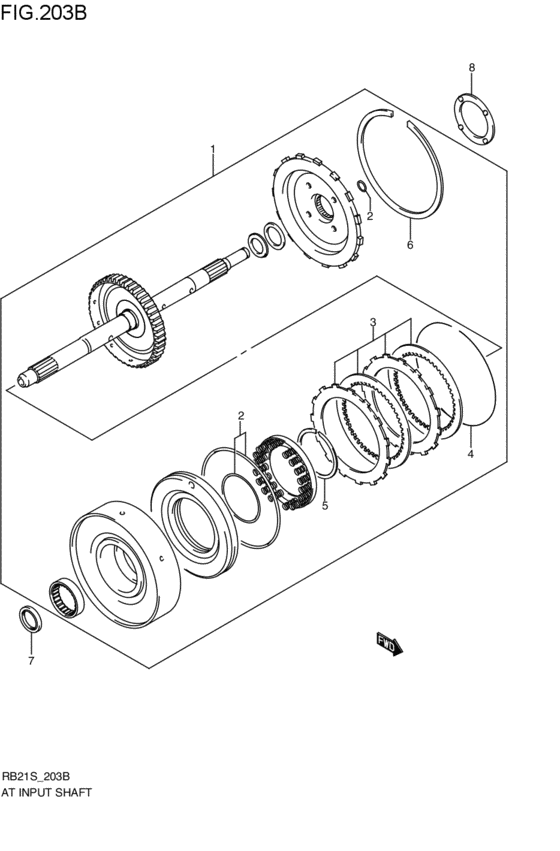

at - input shaft (AT; 2001-01-01~) Diagram Suzuki AERIO
- Year
- 2001 - 2011
- Sales region
- Japan
- Engine
- M15A
- drive
- 2WD
- transmission
- AT
- body
- X
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24111-54GT0-000 SHAFT SET,INPUTAT; 2001-01-01~ |
24111-54GT0-000 |
US $1,389.76 |
||
|
2
|
2
26813-65GT0-000 O-RING SET,REVERSE CLUTCHAT; 2001-01-01~ |
26813-65GT0-000 |
US $28.70 |
||
|
3
|
3
26819-54GT0-000 PLATE SET,REV CLUTCHAT; 2001-01-01~ |
26819-54GT0-000 |
US $272.32 |
||
|
4
|
4
26817-60G10-000 RING,REVERSE CLUTCH SNAPAT; 2001-01-01~ |
26817-60G10-000 |
US $4.75 |
||
|
5
|
5
26823-65G10-000 RING,REV CL RETAININGAT; 2001-01-01~ |
26823-65G10-000 |
US $5.74 |
||
|
6
|
6
24192-65G10-000 RING,SUN GEAR INPUT SNAPAT; 2001-01-01~ |
24192-65G10-000 |
US $17.70 |
||
|
7
|
7
24171-60G10-000
BEARING,INPUT SHAFT FR
AT; 2001-01-01~ |
24171-60G10-000 |
— | ||
|
8
|
8
26825-60G10-000 WASHER,REV CL THRUST RRAT; 2001-01-01~ |
26825-60G10-000 |
US $5.96 |
