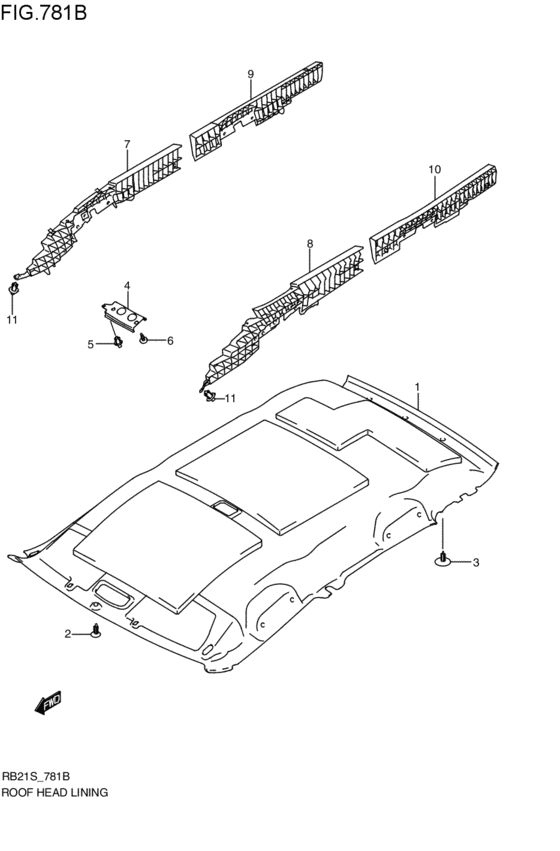

headlining (ルーフライニング; 2001-01-01~) Diagram Suzuki AERIO
- Year
- 2001 - 2011
- Sales region
- Japan
- Engine
- M15A
- drive
- 2WD
- transmission
- AT
- body
- X
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
78110-54G11-6GS
LINING COMP,ROOF
グレ-; X; 2001-01-01~ |
78110-54G11-6GS |
— | ||
|
2
|
2
09409-05307-6GS CLIP(GRAY)グレ-; 2001-01-01~ |
09409-05307-6GS |
US $1.60 |
||
|
3
|
3
09409-06326-6GS CLIP(GRAY)グレ-; 2001-01-01~ |
09409-06326-6GS |
from US $1.24 |
||
|
4
|
4
78121-54G00-000 RETAINER,SPOT LAMP2001-01-01~ |
78121-54G00-000 |
US $5.67 |
||
|
5
|
5
09409-05307-5ES CLIP(BLACK)ブラック; 2001-01-01~ |
09409-05307-5ES |
US $1.60 |
||
|
6
|
6
03142-05123-000
Screw
2001-01-01~ |
03142-05123-000 |
— | ||
| replacement | |||||
|
6
|
6
03141-0512A-000 SCREWScrew, belt cooling duct 2001-01-01~ |
03141-0512A-000 |
from US $0.76 |
||
|
7
|
7
78151-54G00-000
PAD,ROOF SIDE RAIL FR,R
2001-01-01~ |
78151-54G00-000 |
— | ||
|
8
|
8
78161-54G00-000
PAD,ROOF SIDE RAIL FR,L
2001-01-01~ |
78161-54G00-000 |
— | ||
|
9
|
9
78152-54G00-000
PAD,ROOF SIDE RAIL RR,R
2001-01-01~ |
78152-54G00-000 |
— | ||
|
10
|
10
78162-54G00-000
PAD,ROOF SIDE RAIL RR,L
2001-01-01~ |
78162-54G00-000 |
— | ||
|
11
|
11
09409-07308-5PK CLIP(BLACK)ブラック; 2001-01-01~ |
09409-07308-5PK |
from US $0.95 |
||
