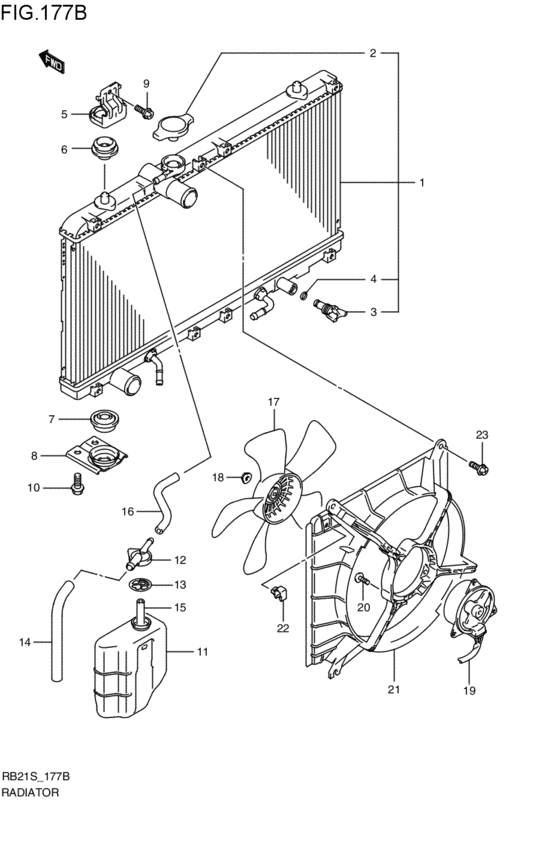

radiator (2001-01-01~) Diagram Suzuki AERIO
- Year
- 2001 - 2011
- Sales region
- Japan
- Engine
- M15A
- drive
- 2WD
- transmission
- AT
- body
- X
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17700-54G10-000 RADIATOR ASSYAT; 2001-01-01~ |
17700-54G10-000 |
US $718.08 |
||
|
2
|
2
17920-75F00-000 CAP,RADIATOR2001-01-01~ |
17920-75F00-000 |
from US $13.83 |
||
|
3
|
3
17751-61A00-000 PLUG,DRAIN2001-01-01~ |
17751-61A00-000 |
US $4.32 |
||
|
4
|
4
17759-72010-000 O-RING2001-01-01~ |
17759-72010-000 |
US $1.52 |
||
|
5
|
5
17811-54G00-000 BRACKET,RDTR SUPPORT UPPER2001-01-01~ |
17811-54G00-000 |
US $4.86 |
||
|
6
|
6
17812-60G00-000 MOUNT,RDTR SUPPORT UPR2001-01-01~ |
17812-60G00-000 |
US $4.38 |
||
|
7
|
7
17813-60G10-000 MOUNT,RDTR SUPPORT LWR2001-01-01~ |
17813-60G10-000 |
US $4.56 |
||
|
8
|
8
17814-54G00-000 BRACKET,RDTR SUPPORT LOWER2001-01-01~ |
17814-54G00-000 |
US $8.17 |
||
|
9
|
9
02162-06123-000
Bolt (6x12)
2001-01-01~ |
02162-06123-000 |
— | ||
| replacements | |||||
|
9
|
9
02162-0612B-000 SCREWBolt 2001-01-01~ |
02162-0612B-000 |
from US $0.80 |
||
|
9
|
9
02162-0612A-000 SCREWBolt, bracket 2001-01-01~ |
02162-0612A-000 |
from US $0.80 |
||
|
10
|
10
01551-08163-000
Bolt
2001-01-01~ |
01551-08163-000 |
— | ||
| replacements | |||||
|
10
|
10
01551-0816C-000 Bolt2001-01-01~ |
01551-0816C-000 |
from US $0.96 |
||
|
10
|
10
01551-0816A-000
ボルト
2001-01-01~ |
01551-0816A-000 |
— | ||
|
11
|
11
17931-60G00-000 TANK,WATER RESERVE2001-01-01~ |
17931-60G00-000 |
from US $26.84 |
||
|
12
|
12
17932-54G00-000 CAP,WATER RSVR TANK2001-01-01~ |
17932-54G00-000 |
from US $4.34 |
||
|
13
|
13
17933-60B00-000 RUBBER,WTR RSV TANK CAPRubber, tank cap 2001-01-01~ |
17933-60B00-000 |
from US $1.85 |
||
|
14
|
14
17936-78F00-000 HOSE,RSVR TANK VENT2001-05-01~ |
17936-78F00-000 |
from US $6.99 |
||
|
14
|
14
17939-65D00-000 HOSE,RSVR TANK VENT2001-01-01~2001-05-01 |
17939-65D00-000 |
US $7.25 |
||
|
15
|
15
09352-70111-600 HOSE(7X11X600)L:600>170; 2001-01-01~ |
09352-70111-600 |
from US $6.84 |
||
|
16
|
16
09352-70121-600 HOSE(7X12.1X600)Hose (inmani to iac) L:600>190; 2001-01-01~ |
09352-70121-600 |
from US $4.84 |
||
|
17
|
17
17111-62D51-000 FAN,ENG COOLING2001-01-01~ |
17111-62D51-000 |
US $61.09 |
||
|
18
|
18
08316-20053-000
Nut
2001-01-01~ |
08316-20053-000 |
— | ||
| replacement | |||||
|
18
|
18
08316-2005A-000 NUT2001-01-01~ |
08316-2005A-000 |
from US $0.80 |
||
|
19
|
19
17120-54G00-000 MOTOR ASSY,FAN2001-01-01~ |
17120-54G00-000 |
US $404.80 |
||
|
20
|
20
02142-05103-000
Screw 5x10
2001-01-01~ |
02142-05103-000 |
— | ||
| replacement | |||||
|
20
|
20
02142-0510B-000 SCREWBolt 2001-01-01~ |
02142-0510B-000 |
from US $0.76 |
||
|
21
|
21
17760-63G00-000 SHROUD2001-01-01~ |
17760-63G00-000 |
US $94.58 |
||
|
22
|
22
17761-63G00-000 CLIP(GRAY)2001-01-01~ |
17761-63G00-000 |
US $1.55 |
||
|
23
|
23
09122-86003-000 SCREW(6X16)Bolt (6x16) 2001-01-01~ |
09122-86003-000 |
US $11.80 |
||
