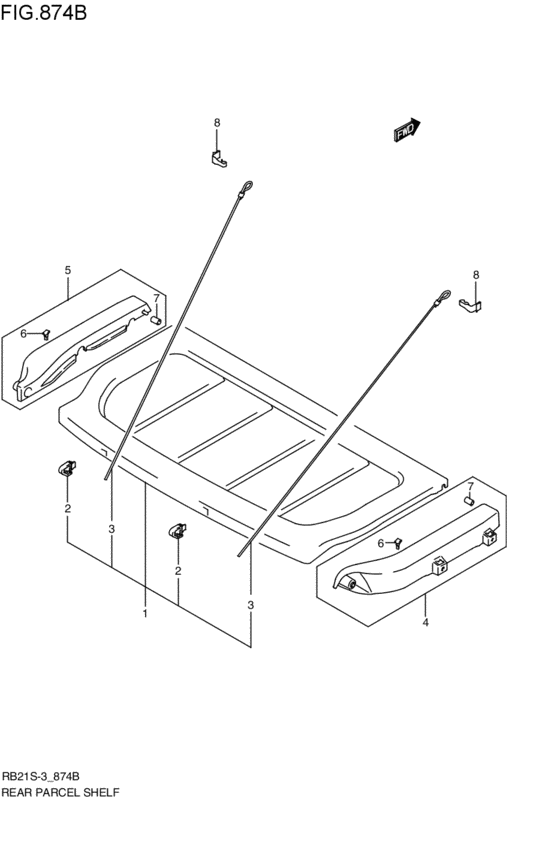

rear purcell shelf (5DR; 2002-06-01~) Diagram Suzuki AERIO
- Year
- 2002 - 2003
- Sales region
- Japan
- Engine
- M15A
- drive
- 2WD
- transmission
- AT
- Number of doors
- 5DR
- body
- XR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
87410-54G02-P8G SHELF,RR PARCEL MAINグレ-; 5DR; 2002-06-01~ |
87410-54G02-P8G |
US $252.08 |
||
| replacement | |||||
|
1
|
1
87410-54G01-P8G SHELF,RR PARCEL MAINグレ-; 5DR; 2002-06-01~ |
87410-54G01-P8G |
US $255.76 |
||
|
2
|
2
87412-54G00-000 CUSHION,RR PARCEL5DR; 2002-06-01~ |
87412-54G00-000 |
US $6.26 |
||
|
3
|
3
87413-54G00-000 STRING,RR PARCEL5DR; 2002-06-01~ |
87413-54G00-000 |
US $7.40 |
||
|
4
|
4
87430-54G03-P4Z SHELF,RR PARCEL SIDE,Rグレ-; 5DR; 2002-06-01~ |
87430-54G03-P4Z |
US $35.88 |
||
|
5
|
5
87450-54G03-P4Z SHELF,RR PARCEL SIDE,Lグレ-; 5DR; 2002-06-01~ |
87450-54G03-P4Z |
US $48 |
||
|
6
|
6
73461-77E00-000 CUSHION,GLV BOX LIDCushion, glove box lid side 5DR; 2002-06-01~ |
73461-77E00-000 |
US $5.60 |
||
|
7
|
7
09352-70103-600
HOSE(7X10.2X600)
L:600>16; 5DR; 2002-06-01~ |
09352-70103-600 |
— | ||
| replacement | |||||
|
7
|
7
09352-70104-600 Hose(7X10.2X600)L:600>16; 5DR; 2002-06-01~ |
09352-70104-600 |
from US $5.28 |
||
|
8
|
8
87419-60B00-000 HOOK,RR PARCEL STRING5DR; 2002-06-01~ |
87419-60B00-000 |
US $2.24 |
||
