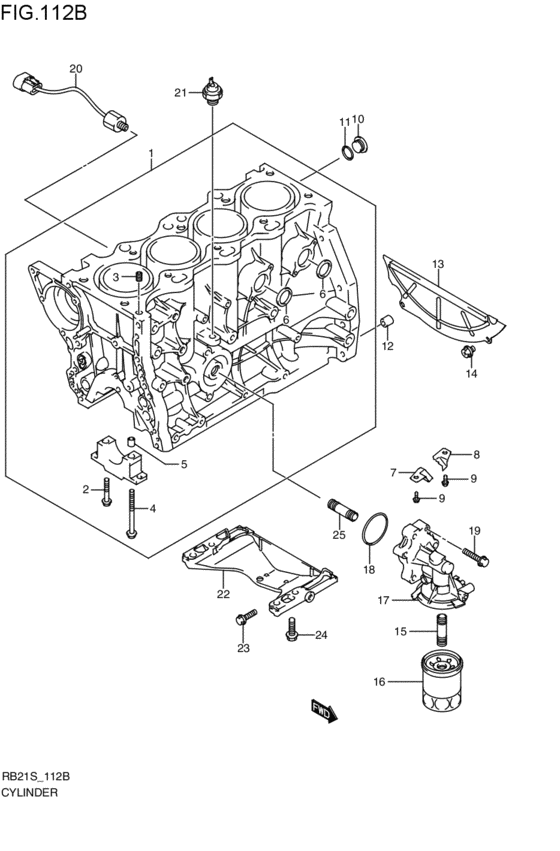

Cylinder (2001-01-01~) Diagram Suzuki AERIO
- Year
- 2000 - 2011
- Sales region
- Japan
- Engine
- M15A
- drive
- 2WD
- transmission
- MT
- body
- X
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11200-54G00-000
ブロックアッシ,シリンダ(M15)
2001-01-01~ |
11200-54G00-000 |
— | ||
| replacements | |||||
|
1
|
1
01550-0830B-000 Bolt2001-01-01~ |
01550-0830B-000 |
from US $1.06 |
||
|
1
|
1
09283-83002-000 SEAL,OIL(83X97X7)2001-01-01~ |
09283-83002-000 |
from US $16.85 |
||
|
1
|
1
11200-54LB0-X12 BLOCK ASSY,CYLINDER M15A2001-01-01~ |
11200-54LB0-X12 |
US $2,597.20 |
||
|
1
|
1
11341-69G20-000 HOUSING,OIL SEAL2001-01-01~ |
11341-69G20-000 |
US $42.32 |
||
|
1
|
1
11550-54G10-000 BRACKET ASSY,GENERATOR NO.22001-01-01~ |
11550-54G10-000 |
US $31.20 |
||
|
1
|
1
11550-64J01-000 BRACKET,GENERATOR2001-01-01~ |
11550-64J01-000 |
US $20.98 |
||
|
1
|
1
01550-0830A-000 BOLTBolt, mount oil seal cover 2001-01-01~ |
01550-0830A-000 |
from US $1.12 |
||
|
1
|
1
01550-08303-000
Bolt
2001-01-01~ |
01550-08303-000 |
— | ||
|
2
|
2
01550-08403-000
Bolt
2001-01-01~ |
01550-08403-000 |
— | ||
| replacements | |||||
|
2
|
2
01550-0840B-000 Bolt2001-01-01~ |
01550-0840B-000 |
from US $1.12 |
||
|
2
|
2
01550-0840A-000 BOLT2001-01-01~ |
01550-0840A-000 |
from US $1.12 |
||
|
3
|
3
11112-73002-000
Plug, oil venturi
2001-01-01~ |
11112-73002-000 |
— | ||
| replacement | |||||
|
3
|
3
11112-73010-000 PLUG,OIL VENTURI2001-01-01~ |
11112-73010-000 |
US $1.60 |
||
|
4
|
4
11260-69G00-000
Bolt,crank bearing cap,10x97
2001-01-01~ |
11260-69G00-000 |
— | ||
| replacement | |||||
|
4
|
4
11260-69G01-000 BOLT,CRANK BEARING CAP2001-01-01~ |
11260-69G01-000 |
US $2.40 |
||
|
5
|
5
04211-13189-000 PIN2001-01-01~ |
04211-13189-000 |
from US $1.19 |
||
|
6
|
6
09241-30009-000
Plug
2001-01-01~ |
09241-30009-000 |
— | ||
| replacement | |||||
|
6
|
6
09241-30010-000 PLUG2001-01-01~ |
09241-30010-000 |
US $2.40 |
||
|
7
|
7
11213-69G00-000 PLATE,BREATHER FRONT2001-01-01~ |
11213-69G00-000 |
US $2.24 |
||
|
8
|
8
11214-69G00-000 PLATE,BREATHER REAR2001-01-01~ |
11214-69G00-000 |
US $2.24 |
||
|
9
|
9
01550-06123-000
Bolt
2001-01-01~ |
01550-06123-000 |
— | ||
| replacements | |||||
|
9
|
9
01550-0612B-000 BOLTBolt, clamp 2001-01-01~ |
01550-0612B-000 |
from US $0.76 |
||
|
9
|
9
01550-0612A-000 BOLT2001-01-01~ |
01550-0612A-000 |
from US $0.76 |
||
|
10
|
10
09248-18005-000 PLUGPlug, oil gallery 2001-01-01~ |
09248-18005-000 |
from US $10.15 |
||
| replacement | |||||
|
10
|
10
09248-18011-000 PLUG(18X8)Plug, oil gallery 2001-01-01~ |
09248-18011-000 |
from US $2.88 |
||
|
11
|
11
11216-77E00-000 GASKET,M18 PLUG2001-01-01~ |
11216-77E00-000 |
from US $1.74 |
||
|
12
|
12
09202-08004-000 PIN(8X23)2001-01-01~ |
09202-08004-000 |
from US $1.53 |
||
|
15
|
15
11241-69G00-000
スタンド,オイルフィルタ
2001-01-01~ |
11241-69G00-000 |
— | ||
| replacement | |||||
|
15
|
15
11241-69G02-000 STAND,OIL FILTER2001-01-01~ |
11241-69G02-000 |
from US $8.37 |
||
|
16
|
16
16510-61A01-000
フィルタアッシ,オイル(TOKYO ROKI)
TOKYO ROKI; 2001-01-01~ |
16510-61A01-000 |
— | ||
| replacements | |||||
|
16
|
16
16510-61A20-MHL
Filter assy, oil
TOKYO ROKI; 2001-01-01~ |
16510-61A20-MHL |
— | ||
|
16
|
16
16510-61A31-000
FILTER ASSY,OIL WAKO
TOKYO ROKI; 2001-01-01~ |
16510-61A31-000 |
— | ||
|
17
|
17
16531-69G00-000
ケース,オイルフィルタアダプタ
2001-01-01~ |
16531-69G00-000 |
— | ||
| replacements | |||||
|
17
|
17
11241-86FA0-000 STAND,OIL FILTER2001-01-01~ |
11241-86FA0-000 |
US $6.72 |
||
|
17
|
17
16531-69G20-000 CASE,OIL FILTER ADAPTER2001-01-01~ |
16531-69G20-000 |
US $80.80 |
||
|
17
|
17
16539-69G00-000 GASKET,OIL ADAPTER CASE2001-01-01~ |
16539-69G00-000 |
from US $4.10 |
||
|
18
|
18
09280-62003-000 O RING(D:3.5,ID:60.7)2001-01-01~ |
09280-62003-000 |
from US $3.42 |
||
|
19
|
19
01550-08303-000
Bolt
2001-01-01~ |
01550-08303-000 |
— | ||
|
20
|
20
18640-78G00-000 SENSOR ASSY,KNOCK2001-01-01~ |
18640-78G00-000 |
from US $104.49 |
||
|
21
|
21
37820-82001-000
Switch assy, oil pressure
2001-01-01~ |
37820-82001-000 |
— | ||
| replacement | |||||
|
21
|
21
37820-820P0-000 SWITCH ASSY,OIL PRESSURE2001-01-01~ |
37820-820P0-000 |
from US $12.02 |
||
|
22
|
22
11331-54G01-000
STIFFENER,ENG&T/M
2WD; 2001-01-01~ |
11331-54G01-000 |
— | ||
|
23
|
23
09103-10333-000
ボルト,10X35
2WD; 2001-01-01~ |
09103-10333-000 |
— | ||
| replacement | |||||
|
23
|
23
09103-10398-000 BOLT(10X35)2WD; 2001-01-01~ |
09103-10398-000 |
US $26.10 |
||
|
24
|
24
01550-10353-000
Bolt
2WD; 2001-01-01~ |
01550-10353-000 |
— | ||
| replacement | |||||
|
24
|
24
01550-1035A-000 BOLTBolt, fr fork upper 2WD; 2001-01-01~ |
01550-1035A-000 |
from US $5.68 |
||
|
25
|
25
11241-69G00-000
スタンド,オイルフィルタ
2001-01-01~2001-07-01 |
11241-69G00-000 |
— | ||
| replacement | |||||
|
25
|
25
11241-69G02-000 STAND,OIL FILTER2001-01-01~2001-07-01 |
11241-69G02-000 |
from US $8.37 |
||
