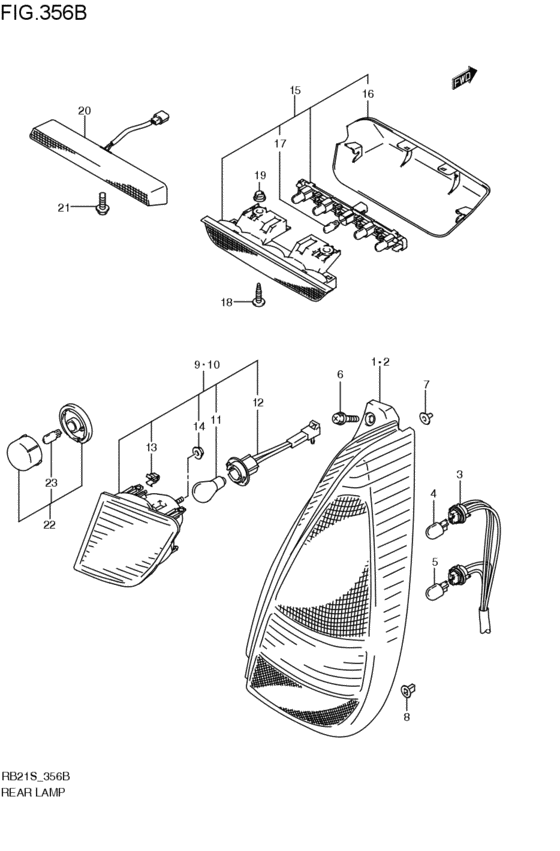

rear lamp (2001-01-01~) Diagram Suzuki AERIO
- Year
- 2000 - 2011
- Sales region
- Japan
- Engine
- M15A
- drive
- 2WD
- transmission
- MT
- body
- X
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35650-54G00-000 LAMP UNIT,RR COMB,R2001-01-01~ |
35650-54G00-000 |
US $171.86 |
||
|
2
|
2
35670-54G00-000 LAMP UNIT,RR COMB,L2001-01-01~ |
35670-54G00-000 |
US $171.86 |
||
|
3
|
3
35658-54G00-000
SOCKET&CORD ASSY,RR COMB
2001-01-01~ |
35658-54G00-000 |
— | ||
|
4
|
4
09471-12192-000 BULB(12V21/5W)2001-01-01~ |
09471-12192-000 |
from US $3.19 |
||
|
5
|
5
09471-12202-000 BULB(12V21W/WY21W,AMBER)2001-01-01~ |
09471-12202-000 |
from US $5.76 |
||
|
6
|
6
09122-76004-000 SCREW(6X16)2001-01-01~ |
09122-76004-000 |
US $0.96 |
||
|
7
|
7
35153-63G00-000 GROMMET,RR COMB LAMP2001-01-01~ |
35153-63G00-000 |
US $2.69 |
||
|
8
|
8
35153-54G00-000 GROMMET,RR COMB LAMP2001-01-01~ |
35153-54G00-000 |
US $1.95 |
||
|
9
|
9
36250-54G00-000 LAMP ASSY,BACK UP,R2001-01-01~ |
36250-54G00-000 |
US $56.67 |
||
|
10
|
10
36270-54G00-000 LAMP ASSY,BACK UP,L2001-01-01~ |
36270-54G00-000 |
US $134.32 |
||
|
11
|
11
09471-12045-000 BULB(12V21W)2001-01-01~ |
09471-12045-000 |
from US $2.54 |
||
|
12
|
12
36258-54G00-000 SOCKET&CORD2001-01-01~ |
36258-54G00-000 |
US $11.22 |
||
|
13
|
13
09409-08326-000 CLIP2001-01-01~ |
09409-08326-000 |
from US $0.76 |
||
|
14
|
14
08316-10063-000
Nut
2001-01-01~ |
08316-10063-000 |
— | ||
| replacement | |||||
|
14
|
14
08316-1006B-000 NUT2001-01-01~ |
08316-1006B-000 |
from US $0.76 |
||
|
20
|
20
35810-82D00-000 LAMP ASSY,HIGH MT STOPX; 2001-01-01~ |
35810-82D00-000 |
US $90.53 |
||
|
21
|
21
02142-04123-000
Screw
X; 2001-01-01~ |
02142-04123-000 |
— | ||
| replacement | |||||
|
21
|
21
02142-0412A-000 SCREWX; 2001-01-01~ |
02142-0412A-000 |
from US $2.04 |
||
|
22
|
22
35910-75F30-000
Lamp assy,license
2001-01-01~ |
35910-75F30-000 |
— | ||
| replacement | |||||
|
22
|
22
35910-75F31-000 Lamp assy,license2001-01-01~ |
35910-75F31-000 |
US $14.65 |
||
|
23
|
23
09471-12081-000
Bulb (12v,5w)
TOKAI DENSO; 2001-01-01~ |
09471-12081-000 |
— | ||
| replacement | |||||
|
23
|
23
09471-12216-000 BULB(12V5W)Bulb (12v5w) TOKAI DENSO; 2001-01-01~ |
09471-12216-000 |
from US $2.84 |
||
