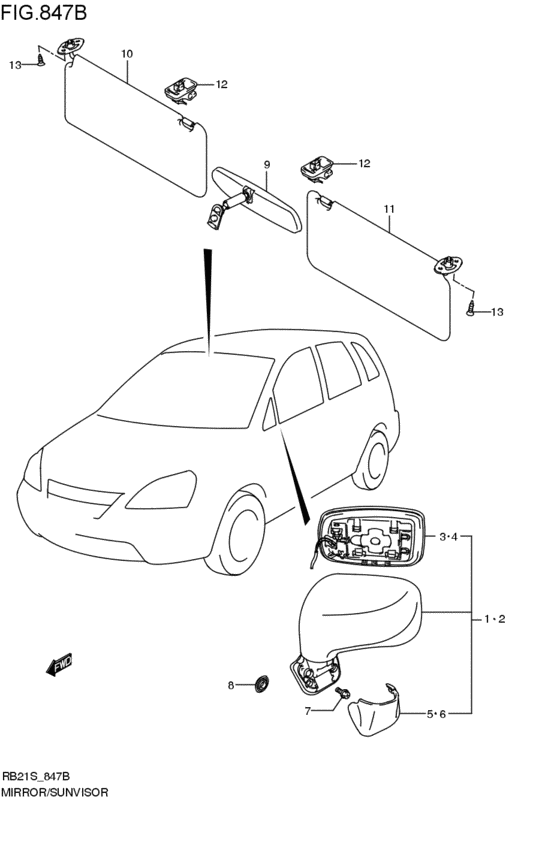

mirror / sun visor (2001-01-01~) Diagram Suzuki AERIO
- Year
- 2000 - 2011
- Sales region
- Japan
- Engine
- M15A
- drive
- 2WD
- transmission
- MT
- body
- X
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
84701-54G60-ZA4
MIRROR ASSY,RR VIEW,R
ベ-ジユ; 2WD:X; 2001-01-01~ |
84701-54G60-ZA4 |
— | ||
|
1
|
1
84701-54G60-ZD9
ミラーアッシ,アウトリヤビュー,ライト(グリーン)
グリ-ン; 2WD:X; 2001-01-01~ |
84701-54G60-ZD9 |
— | ||
|
1
|
1
84701-54G60-ZE9
MIRROR ASSY,RR VIEW,R
ブル-; 2WD:X; 2001-01-01~ |
84701-54G60-ZE9 |
— | ||
|
1
|
1
84701-54G60-Z2S MIRROR ASSY,RR VIEW,Rシルバ-; 2WD:X; 2001-01-01~ |
84701-54G60-Z2S |
US $283.36 |
||
|
1
|
1
84701-54G60-Z5K
MIRROR ASSY,RR VIEW,R
レッド; 2WD:X; 2001-01-01~ |
84701-54G60-Z5K |
— | ||
|
1
|
1
84701-54G60-Z7T
MIRROR ASSY,RR VIEW,R
ホワイト; 2WD:X; 2001-01-01~ |
84701-54G60-Z7T |
— | ||
|
2
|
2
84702-54G60-ZA4
MIRROR ASSY,RR VIEW,L
ベ-ジユ; 2WD:X; 2001-01-01~ |
84702-54G60-ZA4 |
— | ||
|
2
|
2
84702-54G60-ZD9
ミラーアッシ,アウトリヤビュー,レフト(グリーン)
グリ-ン; 2WD:X; 2001-01-01~ |
84702-54G60-ZD9 |
— | ||
|
2
|
2
84702-54G60-ZE9
MIRROR ASSY,RR VIEW,L
ブル-; 2WD:X; 2001-01-01~ |
84702-54G60-ZE9 |
— | ||
|
2
|
2
84702-54G60-Z2S MIRROR ASSY,RR VIEW,Lシルバ-; 2WD:X; 2001-01-01~ |
84702-54G60-Z2S |
US $283.36 |
||
|
2
|
2
84702-54G60-Z5K
MIRROR ASSY,RR VIEW,L
レッド; 2WD:X; 2001-01-01~ |
84702-54G60-Z5K |
— | ||
|
2
|
2
84702-54G60-Z7T MIRROR ASSY,RR VIEW,Lホワイト; 2WD:X; 2001-01-01~ |
84702-54G60-Z7T |
US $257.60 |
||
|
3
|
3
84730-54G00-000 GLASS,OUT,RR VIEW MIRROR,R2WD; 2001-01-01~ |
84730-54G00-000 |
from US $47.10 |
||
|
4
|
4
84740-54G00-000 GLASS,OUT,RR VIEW MIRROR,L2WD; 2001-01-01~ |
84740-54G00-000 |
from US $47.10 |
||
|
5
|
5
84719-54G10-ZA4 COVER,OUT RR VIEW MIR,Rベ-ジユ; X; 2001-01-01~ |
84719-54G10-ZA4 |
US $32.02 |
||
|
5
|
5
84719-54G10-ZD9
カバー,アウトリヤビューミラー,ライト(グリーン)
グリ-ン; X; 2001-01-01~ |
84719-54G10-ZD9 |
— | ||
|
5
|
5
84719-54G10-ZE9 COVER,OUT RR VIEW MIR,Rブル-; X; 2001-01-01~ |
84719-54G10-ZE9 |
US $35.33 |
||
|
5
|
5
84719-54G10-Z2S
COVER,OUT RR VIEW MIR,R
シルバ-; X; 2001-01-01~ |
84719-54G10-Z2S |
— | ||
|
5
|
5
84719-54G10-Z5K
COVER,OUT RR VIEW MIR,R
レッド; X; 2001-01-01~ |
84719-54G10-Z5K |
— | ||
|
5
|
5
84719-54G10-Z7T
COVER,OUT RR VIEW MIR,R
ホワイト; X; 2001-01-01~ |
84719-54G10-Z7T |
— | ||
|
6
|
6
84729-54G10-ZA4
COVER,OUT RR VIEW MIR,L
ベ-ジユ; X; 2001-01-01~ |
84729-54G10-ZA4 |
— | ||
|
6
|
6
84729-54G10-ZD9
カバー,アウトリヤビューミラー,レフト(グリーン)
グリ-ン; X; 2001-01-01~ |
84729-54G10-ZD9 |
— | ||
|
6
|
6
84729-54G10-ZE9
COVER,OUT RR VIEW MIR,L
ブル-; X; 2001-01-01~ |
84729-54G10-ZE9 |
— | ||
|
6
|
6
84729-54G10-Z2S
COVER,OUT RR VIEW MIR,L
シルバ-; X; 2001-01-01~ |
84729-54G10-Z2S |
— | ||
|
6
|
6
84729-54G10-Z5K
COVER,OUT RR VIEW MIR,L
レッド; X; 2001-01-01~ |
84729-54G10-Z5K |
— | ||
|
6
|
6
84729-54G10-Z7T
COVER,OUT RR VIEW MIR,L
ホワイト; X; 2001-01-01~ |
84729-54G10-Z7T |
— | ||
|
7
|
7
02162-06163-000
Screw
2001-01-01~ |
02162-06163-000 |
— | ||
| replacement | |||||
|
7
|
7
02162-0616B-000 SCREWBolt, adjust 2001-01-01~ |
02162-0616B-000 |
from US $0.80 |
||
|
8
|
8
09250-25007-000 CAP(OD:25.0)2001-01-01~ |
09250-25007-000 |
from US $0.97 |
||
|
9
|
9
84703-65D01-5PK
MIRROR ASSY,INS RR VIEW
ブラック; 2001-01-01~ |
84703-65D01-5PK |
— | ||
| replacement | |||||
|
9
|
9
84703-65DV0-5PK MIRROR ASSY,INS RR VIEWブラック; 2001-01-01~ |
84703-65DV0-5PK |
US $83.54 |
||
|
10
|
10
84801-54G01-6GS SUNVISOR ASSY,Rグレ-; 2001-01-01~ |
84801-54G01-6GS |
US $74.34 |
||
|
11
|
11
84802-54G01-6GS
サンバイザアッシ,レフト(グレー)
グレ-; 2001-01-01~ |
84802-54G01-6GS |
— | ||
|
12
|
12
84851-65D00-6GS HOLDER,SUNVISORグレ-; 2001-01-01~ |
84851-65D00-6GS |
from US $2.56 |
||
|
13
|
13
03121-05163-000
Screw
2001-01-01~ |
03121-05163-000 |
— | ||
| replacement | |||||
|
13
|
13
03121-0516A-000 SCREW2001-01-01~ |
03121-0516A-000 |
from US $0.80 |
||
