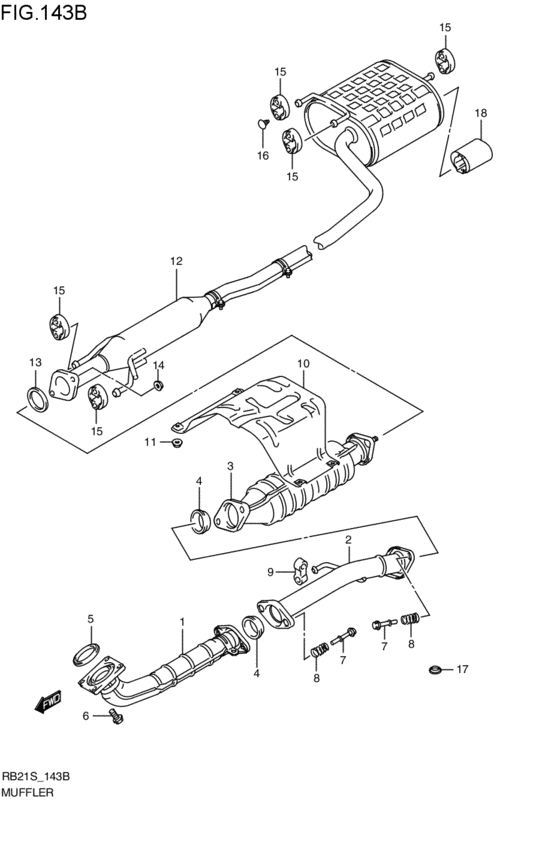

muffler (2001-01-01~) Diagram Suzuki AERIO
- Year
- 2000 - 2011
- Sales region
- Japan
- Engine
- M15A
- drive
- 2WD
- transmission
- MT
- body
- X
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14190-54G00-000 PIPE,EXH NO.12001-01-01~ |
14190-54G00-000 |
US $142.42 |
||
|
2
|
2
14220-54G00-000 PIPE,EXH NO.22001-01-01~ |
14220-54G00-000 |
US $182.53 |
||
|
3
|
3
14250-54G10-000
チャンバ,エキゾースト
2001-01-01~ |
14250-54G10-000 |
— | ||
| replacement | |||||
|
3
|
3
14250-54GD0-000 CHAMBER,EXH2001-01-01~ |
14250-54GD0-000 |
US $189.52 |
||
|
4
|
4
14183-50G00-000
Ring, seal
2001-01-01~ |
14183-50G00-000 |
— | ||
| replacement | |||||
|
4
|
4
14183-76A00-000 RING,SEAL EXH PIPE2001-01-01~ |
14183-76A00-000 |
from US $11.57 |
||
|
5
|
5
14184-65D00-000 GASKET,EXH PIPE2001-01-01~ |
14184-65D00-000 |
from US $8.93 |
||
|
6
|
6
09103-10324-000 BOLT(10X20)2001-01-01~ |
09103-10324-000 |
from US $2.24 |
||
|
7
|
7
09119-10041-000 BOLT(10X65)2001-01-01~ |
09119-10041-000 |
from US $5.92 |
||
|
8
|
8
14492-82600-000
Spring
2001-01-01~ |
14492-82600-000 |
— | ||
| replacement | |||||
|
8
|
8
14492-67D00-000 SPRING,EXH PIPE2001-01-01~ |
14492-67D00-000 |
from US $5.69 |
||
|
9
|
9
14281-60G00-000
マウンチング,マフラ
2001-03-01~ |
14281-60G00-000 |
— | ||
| replacement | |||||
|
9
|
9
14281-60G01-000 MOUNTING,MUF2001-03-01~ |
14281-60G01-000 |
US $8.32 |
||
|
9
|
9
14281-71C01-000 MOUNTING,MUF2001-01-01~2001-02-01 |
14281-71C01-000 |
from US $7.49 |
||
|
10
|
10
14231-60G01-000 INSULATOR,CATALYTIC CONV HEAT2001-01-01~ |
14231-60G01-000 |
US $20.24 |
||
|
11
|
11
51741-60B00-000 NUT,PIPE COVER2001-01-01~ |
51741-60B00-000 |
US $1.60 |
||
|
12
|
12
14300-54G01-000
マフラ
2001-01-01~ |
14300-54G01-000 |
— | ||
| replacement | |||||
|
12
|
12
14300-54G0V-000 MUFFLER2001-01-01~ |
14300-54G0V-000 |
US $401.28 |
||
|
13
|
13
14184-60G00-000 GASKET,EXH PIPE2001-01-01~ |
14184-60G00-000 |
from US $5.72 |
||
|
14
|
14
09159-10049-000
Nut
2001-01-01~ |
09159-10049-000 |
— | ||
| replacement | |||||
|
14
|
14
09159-10102-000 NUT2001-01-01~ |
09159-10102-000 |
from US $0.97 |
||
|
15
|
15
14281-60G00-000
マウンチング,マフラ
2001-01-01~ |
14281-60G00-000 |
— | ||
| replacement | |||||
|
15
|
15
14281-60G01-000 MOUNTING,MUF2001-01-01~ |
14281-60G01-000 |
US $8.32 |
||
|
16
|
16
09409-11302-5PK CLIP(BLACK)ブラック; 2001-01-01~ |
09409-11302-5PK |
US $1.28 |
||
|
17
|
17
09250-22004-000 CAP(OD:29)2001-01-01~ |
09250-22004-000 |
US $12.10 |
||
|
18
|
18
14630-54G00-000
パイプ,テール
X; 2001-01-01~ |
14630-54G00-000 |
— | ||
| replacement | |||||
|
18
|
18
14630-54G11-000 PIPE,TAILX; 2001-01-01~ |
14630-54G11-000 |
US $49.68 |
||
