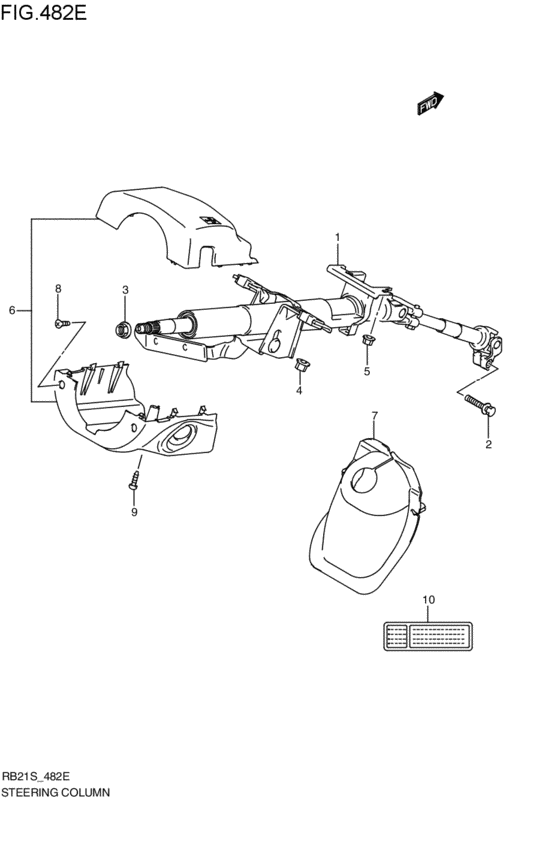

steering column (2001-01-01~) Diagram Suzuki AERIO
- Year
- 2000 - 2011
- Sales region
- Japan
- Engine
- M15A
- drive
- 2WD
- transmission
- MT
- body
- X
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
48200-54G10-000
COLUMN ASSY,COLPS STRG
2001-01-01~ |
48200-54G10-000 |
— | ||
|
2
|
2
09117-08053-000 BOLT(8X30)2001-01-01~ |
09117-08053-000 |
US $20.20 |
||
|
3
|
3
08316-10123-000
Nut
2001-01-01~ |
08316-10123-000 |
— | ||
| replacement | |||||
|
3
|
3
08316-1012A-000 NUT2001-01-01~ |
08316-1012A-000 |
from US $0.96 |
||
|
4
|
4
09159-08069-000
Nut
2001-01-01~ |
09159-08069-000 |
— | ||
| replacement | |||||
|
4
|
4
09159-08135-000 NUT2001-01-01~ |
09159-08135-000 |
US $1.12 |
||
|
5
|
5
08316-10083-000
Nut
2001-01-01~ |
08316-10083-000 |
— | ||
| replacement | |||||
|
5
|
5
08316-1008B-000 NUT2001-01-01~ |
08316-1008B-000 |
from US $0.76 |
||
|
6
|
6
48400-54G00-5PK
COVER ASSY,STRG COLUMN
ブラック; 2001-01-01~ |
48400-54G00-5PK |
— | ||
|
7
|
7
48481-54G00-000 COVER,STRG JOINT2001-01-01~ |
48481-54G00-000 |
US $13.76 |
||
|
8
|
8
09136-05030-000 SCREW(5X12)2001-01-01~ |
09136-05030-000 |
US $0.96 |
||
|
9
|
9
03211-05123-000
Screw
2001-01-01~ |
03211-05123-000 |
— | ||
| replacement | |||||
|
9
|
9
03211-0512A-000 SCREW2001-01-01~ |
03211-0512A-000 |
US $0.80 |
||
|
10
|
10
79172-80G00-000
ラベル,ステアリングジョイント
2001-01-01~ |
79172-80G00-000 |
— | ||
| replacement | |||||
|
10
|
10
79172-80G02-000 LABEL,STRG JOINT2001-01-01~ |
79172-80G02-000 |
US $4.48 |
||
