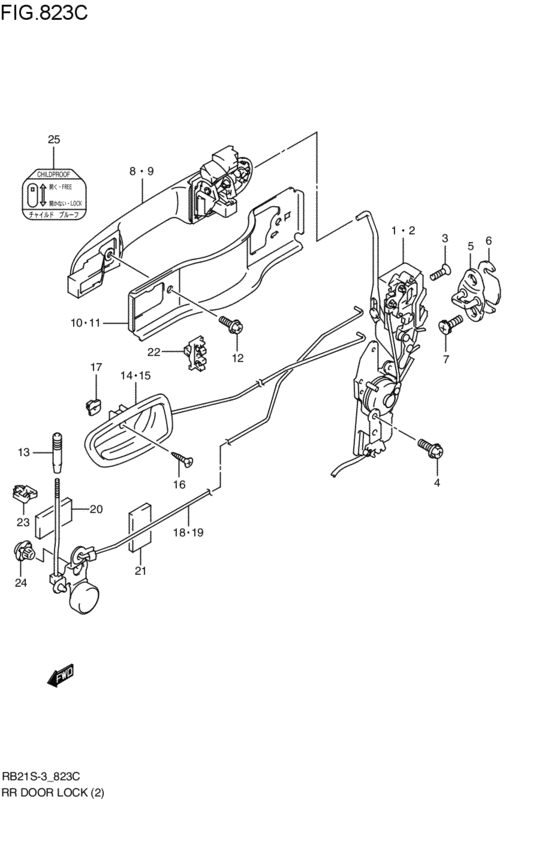

rear door lock (5DR; 2002-06-01~) Diagram Suzuki AERIO
- Year
- 2002 - 2011
- Sales region
- Japan
- Engine
- M15A
- drive
- 2WD
- transmission
- MT
- Number of doors
- 5DR
- body
- XV
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
82301-54G01-000
ラッチアッシ,リヤドア,ライト
5DR; 2002-06-01~ |
82301-54G01-000 |
— | ||
| replacement | |||||
|
1
|
1
82301-54GA0-000 LATCH ASSY,RR DR,R5DR; 2002-06-01~ |
82301-54GA0-000 |
US $213.44 |
||
|
2
|
2
82302-54G01-000
ラッチアッシ,リヤドア,レフト
5DR; 2002-06-01~ |
82302-54G01-000 |
— | ||
| replacement | |||||
|
2
|
2
82302-54GA0-000 LATCH ASSY,RR DR,L5DR; 2002-06-01~ |
82302-54GA0-000 |
US $213.44 |
||
|
3
|
3
09137-06028-000 SCREW(6X18)5DR; 2002-06-01~ |
09137-06028-000 |
US $14.40 |
||
|
4
|
4
02162-06123-000
Bolt (6x12)
5DR; 2002-06-01~ |
02162-06123-000 |
— | ||
| replacements | |||||
|
4
|
4
02162-0612B-000 SCREWBolt 5DR; 2002-06-01~ |
02162-0612B-000 |
from US $0.80 |
||
|
4
|
4
02162-0612A-000 SCREWBolt, bracket 5DR; 2002-06-01~ |
02162-0612A-000 |
from US $0.80 |
||
|
5
|
5
82610-72B11-000
ストライカ,ドアラッチ
5DR; 2002-06-01~ |
82610-72B11-000 |
— | ||
| replacement | |||||
|
5
|
5
82610-72B12-000 STRIKER,DOOR LATCH5DR; 2002-06-01~ |
82610-72B12-000 |
US $12.51 |
||
|
6
|
6
78199-78000-000 SPACER,DOOR LOCK STRIKER5DR; 2002-06-01~ |
78199-78000-000 |
US $1.60 |
||
|
7
|
7
09137-08006-000
Screw
5DR; 2002-06-01~ |
09137-08006-000 |
— | ||
| replacements | |||||
|
7
|
7
09137-08011-000 SCREW(8X18)5DR; 2002-06-01~ |
09137-08011-000 |
US $1.44 |
||
|
7
|
7
09137-08004-000 SCREW(8X18)5DR; 2002-06-01~ |
09137-08004-000 |
from US $0.90 |
||
|
8
|
8
82830-54G10-ZE9
HANDLE,REAR DOOR OUT,R
ブル-; 5DR:(XR,XV); 2002-06-01~ |
82830-54G10-ZE9 |
— | ||
|
8
|
8
82830-54G10-ZJ3 HANDLE,REAR DOOR OUT,Rブラック; 5DR:(XR,XV,Z); 2002-06-01~ |
82830-54G10-ZJ3 |
US $71.76 |
||
|
8
|
8
82830-54G10-Z2S HANDLE,REAR DOOR OUT,Rシルバ-; 5DR:(XR,XV,Z); 2002-06-01~ |
82830-54G10-Z2S |
US $71.76 |
||
|
8
|
8
82830-54G10-Z2U
HANDLE,REAR DOOR OUT,R
ブル-; 5DR:(XR,XV,Z); 2002-06-01~ |
82830-54G10-Z2U |
— | ||
|
8
|
8
82830-54G10-Z7T HANDLE,REAR DOOR OUT,Rホワイト; 5DR:(XR,XV,Z); 2002-06-01~ |
82830-54G10-Z7T |
US $71.76 |
||
|
9
|
9
82840-54G10-Z2S HANDLE,REAR DOOR OUT,Lシルバ-; 5DR:(XR,XV,Z); 2002-06-01~ |
82840-54G10-Z2S |
US $71.76 |
||
|
9
|
9
82840-54G10-Z2U
Handle comp,rear door out,l
ブル-; 5DR:(XR,XV,Z); 2002-06-01~ |
82840-54G10-Z2U |
— | ||
|
9
|
9
82840-54G10-Z7T HANDLE,REAR DOOR OUT,Lホワイト; 5DR:(XR,XV,Z); 2002-06-01~ |
82840-54G10-Z7T |
US $71.76 |
||
|
9
|
9
82840-54G10-ZE9
HANDLE,REAR DOOR OUT,L
ブル-; 5DR:(XR,XV); 2002-06-01~ |
82840-54G10-ZE9 |
— | ||
|
9
|
9
82840-54G10-ZJ3 HANDLE,REAR DOOR OUT,Lブラック; 5DR:(XR,XV,Z); 2002-06-01~ |
82840-54G10-ZJ3 |
US $71.76 |
||
|
10
|
10
82931-54G02-000
REINFORCEMENT,RR DOOR HANDLE,R
5DR; 2002-06-01~ |
82931-54G02-000 |
— | ||
|
11
|
11
82941-54G02-000
REINFORCEMENT,RR DOOR HANDLE,L
5DR; 2002-06-01~ |
82941-54G02-000 |
— | ||
|
12
|
12
02162-06123-000
Bolt (6x12)
5DR; 2002-06-01~ |
02162-06123-000 |
— | ||
| replacements | |||||
|
12
|
12
02162-0612B-000 SCREWBolt 5DR; 2002-06-01~ |
02162-0612B-000 |
from US $0.80 |
||
|
12
|
12
02162-0612A-000 SCREWBolt, bracket 5DR; 2002-06-01~ |
02162-0612A-000 |
from US $0.80 |
||
|
13
|
13
82982-65D00-P4Z KNOB,DOOR INSIDE LOCK (GRAY)グレ-; 5DR:(XR,XV); 2002-06-01~ |
82982-65D00-P4Z |
from US $2.24 |
||
|
14
|
14
83103-54G00-P4Z
HANDLE,RR DR INSIDE,R(GRAY)
グレ-; 5DR:(XR,XV); 2002-06-01~ |
83103-54G00-P4Z |
— | ||
| replacement | |||||
|
14
|
14
83103-54G01-P4Z HANDLE,RR DR INSIDE,Rグレ-; 5DR:(XR,XV); 2002-06-01~ |
83103-54G01-P4Z |
US $25.94 |
||
|
15
|
15
83104-54G00-P4Z
HANDLE,RR DR INSIDE,L(GRAY)
グレ-; 5DR:(XR,XV); 2002-06-01~ |
83104-54G00-P4Z |
— | ||
| replacement | |||||
|
15
|
15
83104-54G01-P4Z HANDLE,RR DR INSIDE,Lグレ-; 5DR:(XR,XV); 2002-06-01~ |
83104-54G01-P4Z |
US $25.94 |
||
|
16
|
16
03521-05163-000
Screw
5DR; 2002-06-01~ |
03521-05163-000 |
— | ||
| replacement | |||||
|
16
|
16
03521-0516A-000 SCREW5DR; 2002-06-01~ |
03521-0516A-000 |
US $7.70 |
||
|
17
|
17
09148-05031-000 NUT5DR; 2002-06-01~ |
09148-05031-000 |
US $1.28 |
||
|
18
|
18
83270-54G00-000 ROD,RR DOOR INSIDE LOCK,R5DR; 2002-06-01~ |
83270-54G00-000 |
US $16.30 |
||
|
19
|
19
83280-54G00-000 ROD,RR DOOR INSIDE LOCK,L5DR; 2002-06-01~ |
83280-54G00-000 |
US $16.30 |
||
|
20
|
20
77591-75000-000 PAD5DR; 2002-06-01~ |
77591-75000-000 |
US $2.28 |
||
|
21
|
21
83211-54G00-000 PAD,FR DOOR INSIDE HANDLE NO.25DR; 2002-06-01~ |
83211-54G00-000 |
US $3.90 |
||
|
22
|
22
83271-50E00-000 CLIP,DR HANDLE ROD5DR; 2002-06-01~ |
83271-50E00-000 |
US $1.60 |
||
|
23
|
23
09403-07324-000 CLAMP5DR; 2002-06-01~ |
09403-07324-000 |
US $14 |
||
|
24
|
24
83261-54G00-000 PIN,REAR DOOR INSIDE LOCK LINK5DR; 2002-06-01~ |
83261-54G00-000 |
US $2.39 |
||
|
25
|
25
86951-78004-000 CAUTION PLATE,CHILD PROOF5DR; 2002-06-01~ |
86951-78004-000 |
US $1.60 |
||
