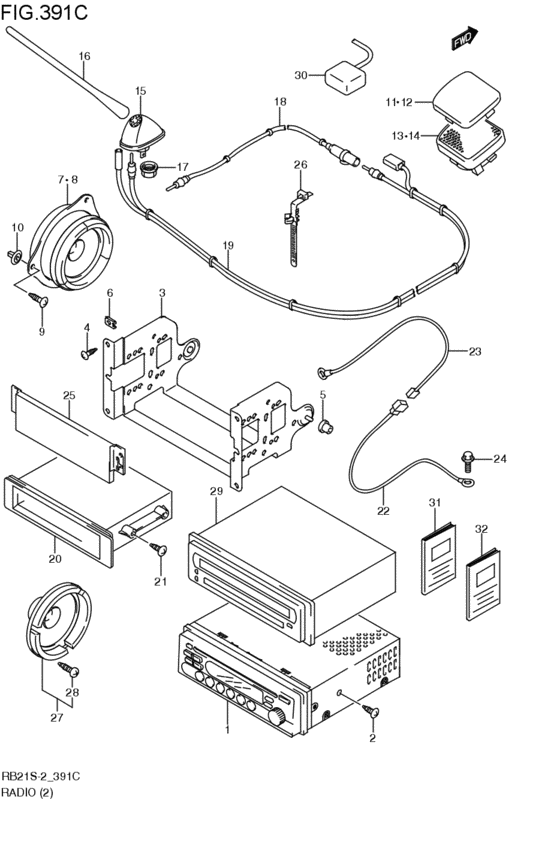

radio (5DR; 2001-11-01~) Diagram Suzuki AERIO
- Year
- 2001 - 2011
- Sales region
- Japan
- drive
- 2WD
- transmission
- MT
- Number of doors
- 5DR
- body
- XR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
3
|
3
39321-54G03-000 BRACKET,TUNER5DR; 2001-11-01~ |
39321-54G03-000 |
US $11.74 |
||
|
4
|
4
03142-05163-000
Screw
5DR; 2001-11-01~ |
03142-05163-000 |
— | ||
| replacement | |||||
|
4
|
4
03141-0516A-000 SCREW5DR; 2001-11-01~ |
03141-0516A-000 |
from US $0.80 |
||
|
5
|
5
34955-54G00-000
ブッシュ,ラジオブラケット
5DR; 2001-11-01~ |
34955-54G00-000 |
— | ||
| replacement | |||||
|
5
|
5
34955-54G10-000 BUSH,RADIO BRKT5DR; 2001-11-01~ |
34955-54G10-000 |
US $1.44 |
||
|
6
|
6
09148-05045-000 NUT5DR; 2001-11-01~ |
09148-05045-000 |
from US $0.81 |
||
|
7
|
7
39104-54G10-000 SPEAKER ASSY,DOOR,R5DR; 2001-11-01~ |
39104-54G10-000 |
US $58.88 |
||
|
8
|
8
39104-54G00-000
SPEAKER ASSY,DOOR,L
5DR; 2001-11-01~ |
39104-54G00-000 |
— | ||
|
9
|
9
03242-06163-000
Screw
5DR; 2001-11-01~ |
03242-06163-000 |
— | ||
| replacement | |||||
|
9
|
9
03241-0616C-000 SCREW5DR; 2001-11-01~ |
03241-0616C-000 |
from US $0.76 |
||
|
10
|
10
09148-05035-000 NUT5DR; 2001-11-01~ |
09148-05035-000 |
US $12.90 |
||
|
11
|
11
73832-54G00-P4Z
COVER,INSTPN UPPER,R
グレ-; 5DR:XR; 2001-11-01~ |
73832-54G00-P4Z |
— | ||
|
12
|
12
73833-54G00-P4Z
COVER,INSTPN UPPER,L
グレ-; 5DR:XR; 2001-11-01~ |
73833-54G00-P4Z |
— | ||
|
15
|
15
39253-78HA0-000
ベース,アンテナ
5DR; 2001-11-01~ |
39253-78HA0-000 |
— | ||
| replacement | |||||
|
15
|
15
39253-78HA1-000 BASE,ANTENNA5DR; 2001-11-01~ |
39253-78HA1-000 |
US $74.70 |
||
|
16
|
16
39251-78H00-000 ROD,ANTENNA5DR; 2001-11-01~ |
39251-78H00-000 |
US $60.80 |
||
|
17
|
17
39269-78H00-000 NUT,ANTENNA5DR; 2001-11-01~ |
39269-78H00-000 |
US $4.67 |
||
|
18
|
18
39270-54G00-000
FEEDER,ANT I/P
5DR; 2001-11-01~ |
39270-54G00-000 |
— | ||
|
19
|
19
39271-54G00-000 FEEDER,ANT ROOF5DR; 2001-11-01~ |
39271-54G00-000 |
US $64.80 |
||
|
20
|
20
39182-70E50-000
ポケット,チューナ
5DR:XR; 2001-11-01~ |
39182-70E50-000 |
— | ||
| replacement | |||||
|
20
|
20
39182-70E51-000 POCKET,TUNER5DR:XR; 2001-11-01~ |
39182-70E51-000 |
US $20 |
||
|
21
|
21
03242-05123-000
Screw, inner cover
5DR:XR; 2001-11-01~ |
03242-05123-000 |
— | ||
| replacement | |||||
|
21
|
21
03241-0512A-000 SCREW5DR:XR; 2001-11-01~ |
03241-0512A-000 |
from US $0.68 |
||
|
22
|
22
39312-60G00-000 WIRE,NOISE SUPPR5DR; 2001-11-01~ |
39312-60G00-000 |
US $6.40 |
||
|
23
|
23
39312-60B20-000 WIRE,NOISE SUPPR NO.15DR; 2001-11-01~ |
39312-60B20-000 |
US $2.72 |
||
|
24
|
24
09115-06001-000
Bolt, lh
5DR; 2001-11-01~ |
09115-06001-000 |
— | ||
| replacement | |||||
|
24
|
24
09115-06005-000 BOLT(6X16)5DR; 2001-11-01~ |
09115-06005-000 |
US $1.28 |
||
|
25
|
25
39161-70E01-000 COVER,RADIO HOLE5DR:XR; 2001-11-01~ |
39161-70E01-000 |
US $13.23 |
||
|
26
|
26
09407-12404-000 CLAMP(L:140)5DR:XR; 2001-11-01~ |
09407-12404-000 |
US $2.08 |
||
