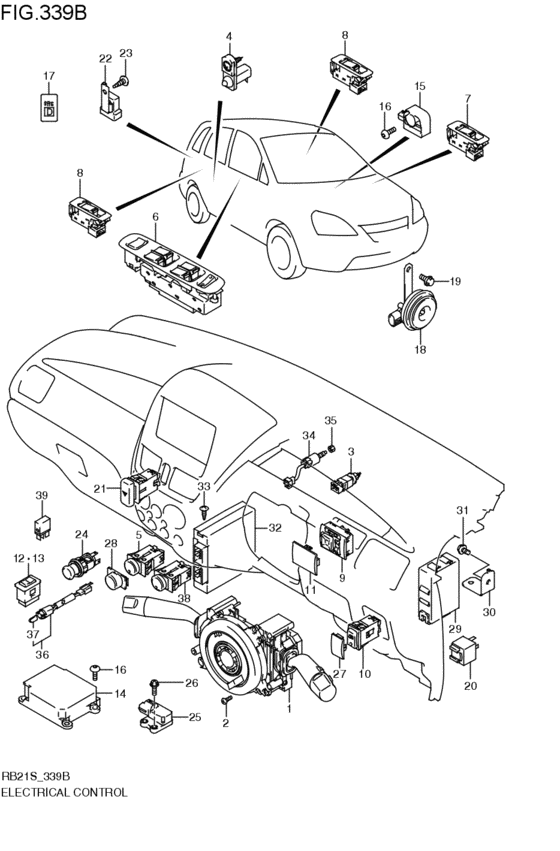

electrical control (ボデイ / インパネ; 2001-01-01~) Diagram Suzuki AERIO
- Year
- 2000 - 2011
- Sales region
- Japan
- Engine
- M15A
- drive
- 4WD
- transmission
- MT
- body
- X
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
37400-54G00-000
Switch assy,comb
X; 2001-01-01~ |
37400-54G00-000 |
— | ||
|
2
|
2
02112-05123-000
Screw 5x12
2001-01-01~ |
02112-05123-000 |
— | ||
| replacement | |||||
|
2
|
2
02112-0512A-000 SCREW2001-01-01~ |
02112-0512A-000 |
from US $0.80 |
||
|
3
|
3
37740-76G10-000
Switch assy, stop lamp
MT; 2001-01-01~ |
37740-76G10-000 |
— | ||
| replacement | |||||
|
3
|
3
37740-80G10-000 SWITCH ASSY,STOP LAMPMT; 2001-01-01~ |
37740-80G10-000 |
US $27.97 |
||
|
4
|
4
37670-76G00-000 SWITCH ASSY,DOOR2001-01-01~ |
37670-76G00-000 |
US $29.60 |
||
|
5
|
5
37860-54G00-000
SWITCH ASSY,RR DEFOGGER
2001-01-01~ |
37860-54G00-000 |
— | ||
|
6
|
6
37990-54G10-P4Z
スイッチアッシ,パワーウィンド,マスタ(グレー)
グレ-; 2001-01-01~ |
37990-54G10-P4Z |
— | ||
| replacement | |||||
|
6
|
6
37990-54G11-P4Z SWITCH ASSY,P/W MAINグレ-; 2001-01-01~ |
37990-54G11-P4Z |
US $386.40 |
||
|
7
|
7
37995-75F00-P4Z SWITCH ASSY, P/W SUB (GRAY)グレ-; 2001-01-01~ |
37995-75F00-P4Z |
from US $47.05 |
||
|
8
|
8
37995-75F00-P4Z SWITCH ASSY, P/W SUB (GRAY)グレ-; 2001-01-01~ |
37995-75F00-P4Z |
from US $47.05 |
||
|
9
|
9
37950-75F10-000 SWITCH ASSY,MIRRORX; 2001-01-01~ |
37950-75F10-000 |
US $41.95 |
||
|
10
|
10
37955-54G00-000
SWITCH ASSY,MIRROR HEATER
X:4WD; 2001-01-01~ |
37955-54G00-000 |
— | ||
|
12
|
12
37850-65D00-000 SWITCH,SEAT HEATER,DRIVER4WD; 2001-01-01~ |
37850-65D00-000 |
US $43.06 |
||
|
13
|
13
37855-65D00-000 SWITCH,SEAT HEATER,ASSISTANT4WD; 2001-01-01~ |
37855-65D00-000 |
US $43.06 |
||
|
14
|
14
38910-54G00-000
CONTROLLER ASSY,A/B
サイドエアバッグナシ; 2001-01-01~ |
38910-54G00-000 |
— | ||
|
14
|
14
38910-54G50-000
CONTROLLER ASSY,A/B
サイドエアバッグアリ; 2001-01-01~ |
38910-54G50-000 |
— | ||
|
15
|
15
38930-54G00-000 SENSOR ASSY,SIDE AIR BAGサイドエアバッグアリ; 2001-01-01~ |
38930-54G00-000 |
US $100.10 |
||
|
16
|
16
09115-06004-000 BOLT(6X16)サイドエアバッグナシ; 2001-01-01~ |
09115-06004-000 |
US $12.50 |
||
|
17
|
17
38918-76G10-000 LABEL,AIR BAG(MARK D)マ-クD; 2001-01-01~ |
38918-76G10-000 |
US $2.87 |
||
|
18
|
18
38500-54G00-000
ホーンアッシ
2001-01-01~ |
38500-54G00-000 |
— | ||
| replacement | |||||
|
18
|
18
38500-54G10-000 HORN ASSY2001-01-01~ |
38500-54G10-000 |
US $61.46 |
||
|
19
|
19
09117-08098-000 BOLT(8X20)2001-01-01~ |
09117-08098-000 |
US $15.80 |
||
|
20
|
20
38610-54G00-000 RELAY ASSY,TURN SIGNAL2001-01-01~ |
38610-54G00-000 |
US $59.62 |
||
|
21
|
21
37430-76F00-000 SWITCH ASSY,HAZARD WARNING2001-01-01~ |
37430-76F00-000 |
US $112 |
||
|
22
|
22
38860-80G00-000 RELAY ASSY2001-01-01~ |
38860-80G00-000 |
US $28.52 |
||
|
23
|
23
03142-05123-000
Screw
2001-01-01~ |
03142-05123-000 |
— | ||
| replacement | |||||
|
23
|
23
03141-0512A-000 SCREWScrew, belt cooling duct 2001-01-01~ |
03141-0512A-000 |
from US $0.76 |
||
|
24
|
24
39400-54G00-000 LIGHTER ASSY,CIGARETTE2001-01-01~ |
39400-54G00-000 |
US $22.26 |
||
|
25
|
25
33945-82C10-000 SENSOR ASSY,G4WD; 2001-01-01~ |
33945-82C10-000 |
US $283.36 |
||
|
26
|
26
09132-06010-000 SCREW(6X16)4WD; 2001-01-01~ |
09132-06010-000 |
from US $1.08 |
||
|
27
|
27
37285-75F10-000 CAP,OPTION SW HOLE2001-01-01~ |
37285-75F10-000 |
US $2.80 |
||
|
28
|
28
37285-54G00-000 CAP,OPTION SW HOLE2001-01-01~ |
37285-54G00-000 |
US $2.13 |
||
|
29
|
29
37190-54G00-000
コントローラアッシ,キーレス/ドアロック
2001-01-01~ |
37190-54G00-000 |
— | ||
|
30
|
30
38701-54G00-000
Bracket,d/l cont
2001-01-01~ |
38701-54G00-000 |
— | ||
|
31
|
31
02162-06123-000
Bolt (6x12)
2001-01-01~ |
02162-06123-000 |
— | ||
| replacements | |||||
|
31
|
31
02162-0612B-000 SCREWBolt 2001-01-01~ |
02162-0612B-000 |
from US $0.80 |
||
|
31
|
31
02162-0612A-000 SCREWBolt, bracket 2001-01-01~ |
02162-0612A-000 |
from US $0.80 |
||
|
34
|
34
37970-76F00-000
スイッチアッシ,クラッチスタート
MT; 2001-01-01~ |
37970-76F00-000 |
— | ||
| replacement | |||||
|
34
|
34
37970-76F02-000 SWITCH ASSY,CLUTCH STARTMT; 2001-01-01~ |
37970-76F02-000 |
US $21.34 |
||
|
35
|
35
09140-10043-000 NUTNut, tie rod rh thread MT; 2001-01-01~ |
09140-10043-000 |
from US $0.91 |
||
|
36
|
36
36550-60E00-000 LAMP ASSY,ASHTRAY ILLUM2001-01-01~ |
36550-60E00-000 |
US $21.90 |
||
|
37
|
37
09471-12091-000 BULB(12V1.4W G30)2001-01-01~ |
09471-12091-000 |
US $28 |
||
|
38
|
38
37270-54G10-000
SWITCH ASSY,FR FOG
ホワイトパッケージ; X; 2001-09-01~ |
37270-54G10-000 |
— | ||
|
39
|
39
38860-76F01-000 RELAY ASSYRelay, starting motor ホワイトパッケージ; X; 2001-09-01~ |
38860-76F01-000 |
from US $24.91 |
||
