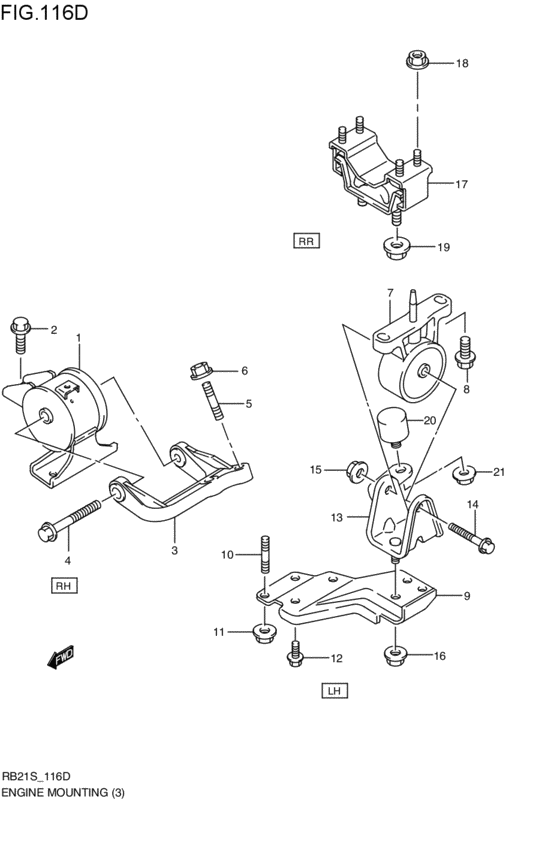

engine mounting (4WD:MT; 2001-01-01~) Diagram Suzuki AERIO
- Year
- 2000 - 2011
- Sales region
- Japan
- Engine
- M15A
- drive
- 4WD
- transmission
- MT
- body
- X
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11610-54G01-000
Mounting,eng rh
4WD:MT; 2001-01-01~ |
11610-54G01-000 |
— | ||
| replacement | |||||
|
1
|
1
11610-54G30-000 MOUNTING,ENG,R4WD:MT; 2001-01-01~ |
11610-54G30-000 |
from US $160.88 |
||
|
2
|
2
01550-10203-000
Bolt
4WD:MT; 2001-01-01~ |
01550-10203-000 |
— | ||
| replacement | |||||
|
2
|
2
01550-1020A-000 BOLTBolt, bal sprocket 4WD:MT; 2001-01-01~ |
01550-1020A-000 |
from US $0.96 |
||
|
3
|
3
11641-54G10-000 BRACKET,ENG MTG,R4WD:MT; 2001-01-01~ |
11641-54G10-000 |
US $47.10 |
||
|
4
|
4
09103-10322-000 BOLT(10X125)4WD:MT; 2001-01-01~ |
09103-10322-000 |
US $8.48 |
||
|
5
|
5
09108-10136-000 BOLT,STUD(10X50)4WD:MT; 2001-01-01~ |
09108-10136-000 |
US $2.40 |
||
|
6
|
6
09159-10105-000
Nut, rr lh case
4WD:MT; 2001-01-01~ |
09159-10105-000 |
— | ||
| replacement | |||||
|
6
|
6
09159-10116-000 NUT4WD:MT; 2001-01-01~ |
09159-10116-000 |
from US $1.28 |
||
|
7
|
7
11620-54G00-000
マウンチング,エンジン,レフト
4WD:MT; 2001-01-01~ |
11620-54G00-000 |
— | ||
| replacement | |||||
|
7
|
7
11620-54G02-000 MOUNTING,ENG,L4WD:MT; 2001-01-01~ |
11620-54G02-000 |
from US $81.05 |
||
|
8
|
8
09112-10019-000 BOLT(10X45)4WD:MT; 2001-01-01~ |
09112-10019-000 |
US $21.70 |
||
|
9
|
9
11650-60G51-000 BRACKET,ENG MTG,NO.1,L4WD:MT; 2001-01-01~ |
11650-60G51-000 |
US $57.04 |
||
|
10
|
10
01411-08203-000
Stud 8x20
4WD:MT; 2001-01-01~ |
01411-08203-000 |
— | ||
| replacement | |||||
|
10
|
10
01411-0820B-000 BOLT,STUD4WD:MT; 2001-01-01~ |
01411-0820B-000 |
US $1.12 |
||
|
11
|
11
08316-10083-000
Nut
4WD:MT; 2001-01-01~ |
08316-10083-000 |
— | ||
| replacement | |||||
|
11
|
11
08316-1008B-000 NUT4WD:MT; 2001-01-01~ |
08316-1008B-000 |
from US $0.76 |
||
|
12
|
12
01550-08203-000
Bolt
4WD:MT; 2001-01-01~ |
01550-08203-000 |
— | ||
| replacements | |||||
|
12
|
12
01550-0820B-000 Bolt4WD:MT; 2001-01-01~ |
01550-0820B-000 |
from US $0.91 |
||
|
12
|
12
01550-0820A-000 BOLTBolt, funnel bracket 4WD:MT; 2001-01-01~ |
01550-0820A-000 |
from US $0.96 |
||
|
13
|
13
11670-54G00-000
ブラケット,エンジンレフトマウンチング,NO.2
4WD:MT; 2001-05-01~ |
11670-54G00-000 |
— | ||
| replacement | |||||
|
13
|
13
11670-54G02-000 BRACKET,ENG MTG,L4WD:MT; 2001-05-01~ |
11670-54G02-000 |
US $13.73 |
||
|
13
|
13
11670-60G00-000
ブラケット,エンジンレフトマウンチング,NO.2
4WD:MT; 2001-01-01~2001-04-01 |
11670-60G00-000 |
— | ||
| replacement | |||||
|
13
|
13
11670-60G01-000 BRACKET,ENG MTG,L4WD:MT; 2001-01-01~2001-04-01 |
11670-60G01-000 |
US $13.98 |
||
|
14
|
14
01550-10803-000
Bolt
4WD:MT; 2001-01-01~ |
01550-10803-000 |
— | ||
| replacement | |||||
|
14
|
14
01550-1080A-000 Bolt4WD:MT; 2001-01-01~ |
01550-1080A-000 |
US $21.70 |
||
|
15
|
15
08316-10103-000
Nut
4WD:MT; 2001-01-01~ |
08316-10103-000 |
— | ||
| replacement | |||||
|
15
|
15
08316-1010B-000 NUT4WD:MT; 2001-01-01~ |
08316-1010B-000 |
from US $0.80 |
||
|
16
|
16
08316-10083-000
Nut
4WD:MT; 2001-01-01~ |
08316-10083-000 |
— | ||
| replacement | |||||
|
16
|
16
08316-1008B-000 NUT4WD:MT; 2001-01-01~ |
08316-1008B-000 |
from US $0.76 |
||
|
17
|
17
11710-54G01-000
マウンチング,エンジン,リヤ
4WD:MT; 2001-01-01~ |
11710-54G01-000 |
— | ||
| replacement | |||||
|
17
|
17
11710-54G02-000 MOUNTING,ENG RR4WD:MT; 2001-01-01~ |
11710-54G02-000 |
US $164.80 |
||
|
18
|
18
08316-10083-000
Nut
4WD:MT; 2001-01-01~ |
08316-10083-000 |
— | ||
| replacement | |||||
|
18
|
18
08316-1008B-000 NUT4WD:MT; 2001-01-01~ |
08316-1008B-000 |
from US $0.76 |
||
|
19
|
19
08316-10103-000
Nut
4WD:MT; 2001-01-01~ |
08316-10103-000 |
— | ||
| replacement | |||||
|
19
|
19
08316-1010B-000 NUT4WD:MT; 2001-01-01~ |
08316-1010B-000 |
from US $0.80 |
||
|
20
|
20
11643-60G01-000
ダンパ,マウンチング,ライト
4WD:MT; 2001-05-01~ |
11643-60G01-000 |
— | ||
| replacement | |||||
|
20
|
20
11643-60G02-000 DAMPER,MOUNTING,R4WD:MT; 2001-05-01~ |
11643-60G02-000 |
US $34.59 |
||
|
21
|
21
08316-10083-000
Nut
4WD:MT; 2001-05-01~ |
08316-10083-000 |
— | ||
| replacement | |||||
|
21
|
21
08316-1008B-000 NUT4WD:MT; 2001-05-01~ |
08316-1008B-000 |
from US $0.76 |
||
