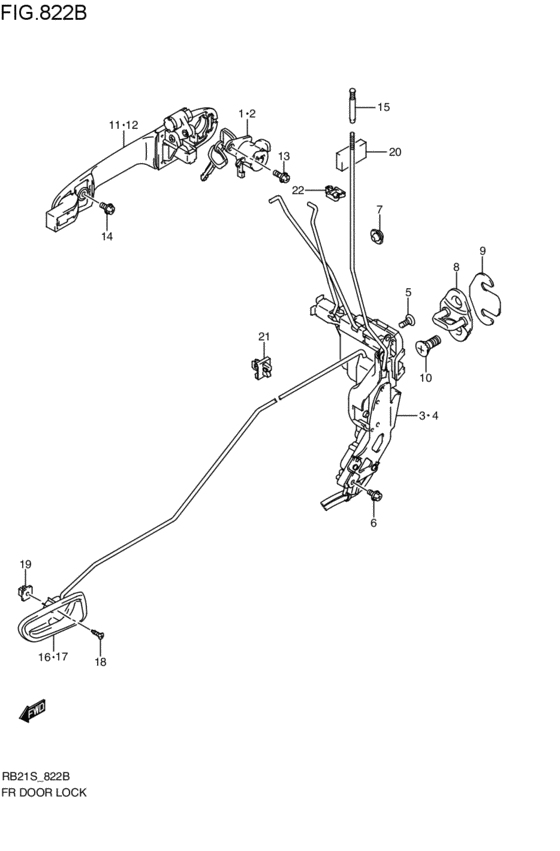

front door lock (2001-01-01~) Diagram Suzuki AERIO
- Year
- 2000 - 2011
- Sales region
- Japan
- Engine
- M15A
- drive
- 4WD
- transmission
- MT
- body
- X
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
82270-54810-000 CYLINDER,FR DR LOCK,R2001-01-01~ |
82270-54810-000 |
US $57.78 |
||
|
2
|
2
82280-54810-000 CYLINDER,FR DR LOCK,L2001-01-01~ |
82280-54810-000 |
US $71.44 |
||
|
3
|
3
82201-54G00-000
ラッチアッシ,フロントドア,ライト
2001-01-01~ |
82201-54G00-000 |
— | ||
| replacement | |||||
|
3
|
3
82201-54GA0-000 LATCH ASSY,FR DR,R2001-01-01~ |
82201-54GA0-000 |
US $198.72 |
||
|
4
|
4
82202-54G00-000
ラッチアッシ,フロントドア,レフト
2001-01-01~ |
82202-54G00-000 |
— | ||
| replacement | |||||
|
4
|
4
82202-54GA0-000 LATCH ASSY,FR DR,L2001-01-01~ |
82202-54GA0-000 |
US $211.60 |
||
|
5
|
5
09137-06028-000 SCREW(6X18)2001-01-01~ |
09137-06028-000 |
US $14.40 |
||
|
6
|
6
02162-06123-000
Bolt (6x12)
2001-01-01~ |
02162-06123-000 |
— | ||
| replacements | |||||
|
6
|
6
02162-0612B-000 SCREWBolt 2001-01-01~ |
02162-0612B-000 |
from US $0.80 |
||
|
6
|
6
02162-0612A-000 SCREWBolt, bracket 2001-01-01~ |
02162-0612A-000 |
from US $0.80 |
||
|
7
|
7
09250-07006-000 CAP(OD:15)2001-01-01~ |
09250-07006-000 |
US $11 |
||
|
8
|
8
82610-72B11-000
ストライカ,ドアラッチ
2001-01-01~ |
82610-72B11-000 |
— | ||
| replacement | |||||
|
8
|
8
82610-72B12-000 STRIKER,DOOR LATCH2001-01-01~ |
82610-72B12-000 |
US $12.51 |
||
|
9
|
9
78199-78000-000 SPACER,DOOR LOCK STRIKER2001-01-01~ |
78199-78000-000 |
US $1.60 |
||
|
10
|
10
09137-08006-000
Screw
2001-01-01~ |
09137-08006-000 |
— | ||
| replacements | |||||
|
10
|
10
09137-08011-000 SCREW(8X18)2001-01-01~ |
09137-08011-000 |
US $1.44 |
||
|
10
|
10
09137-08004-000 SCREW(8X18)2001-01-01~ |
09137-08004-000 |
from US $0.90 |
||
|
11
|
11
82810-54G01-ZA4
HANDLE,FRONT DOOR OUT,R
ベ-ジユ; X; 2001-01-01~ |
82810-54G01-ZA4 |
— | ||
|
11
|
11
82810-54G01-ZD9
ハンドル,フロントドアアウト,ライト(グリーン)
グリ-ン; X; 2001-01-01~ |
82810-54G01-ZD9 |
— | ||
|
11
|
11
82810-54G01-ZE9
Handle comp,front door out,r(b
ブル-; X; 2001-01-01~ |
82810-54G01-ZE9 |
— | ||
|
11
|
11
82810-54G01-Z2S
HANDLE,FR DR OUT,R
シルバ-; X; 2001-01-01~ |
82810-54G01-Z2S |
— | ||
|
11
|
11
82810-54G01-Z5K
Handle comp,front door out,r(r
レッド; X; 2001-01-01~ |
82810-54G01-Z5K |
— | ||
|
11
|
11
82810-54G01-Z7T
ハンドル,フロントドアアウト,ライト(ホワイト)
ホワイト; X; 2001-01-01~ |
82810-54G01-Z7T |
— | ||
|
12
|
12
82820-54G01-ZA4
HANDLE,FRONT DOOR OUT,L
ベ-ジユ; X; 2001-01-01~ |
82820-54G01-ZA4 |
— | ||
|
12
|
12
82820-54G01-ZD9
ハンドル,フロントドアアウト,レフト(グリーン)
グリ-ン; X; 2001-01-01~ |
82820-54G01-ZD9 |
— | ||
|
12
|
12
82820-54G01-ZE9
Handle comp,front door out,l(b
ブル-; X; 2001-01-01~ |
82820-54G01-ZE9 |
— | ||
|
12
|
12
82820-54G01-Z2S
HANDLE,FR DR OUT,L
シルバ-; X; 2001-01-01~ |
82820-54G01-Z2S |
— | ||
|
12
|
12
82820-54G01-Z5K
HANDLE,FRONT DOOR OUT,L
レッド; X; 2001-01-01~ |
82820-54G01-Z5K |
— | ||
|
12
|
12
82820-54G01-Z7T
ハンドル,フロントドアアウト,レフト(ホワイト)
ホワイト; X; 2001-01-01~ |
82820-54G01-Z7T |
— | ||
|
13
|
13
02162-06123-000
Bolt (6x12)
2001-01-01~ |
02162-06123-000 |
— | ||
| replacements | |||||
|
13
|
13
02162-0612B-000 SCREWBolt 2001-01-01~ |
02162-0612B-000 |
from US $0.80 |
||
|
13
|
13
02162-0612A-000 SCREWBolt, bracket 2001-01-01~ |
02162-0612A-000 |
from US $0.80 |
||
|
14
|
14
02162-06123-000
Bolt (6x12)
2001-01-01~ |
02162-06123-000 |
— | ||
| replacements | |||||
|
14
|
14
02162-0612B-000 SCREWBolt 2001-01-01~ |
02162-0612B-000 |
from US $0.80 |
||
|
14
|
14
02162-0612A-000 SCREWBolt, bracket 2001-01-01~ |
02162-0612A-000 |
from US $0.80 |
||
|
15
|
15
82982-65D00-P4Z KNOB,DOOR INSIDE LOCK (GRAY)グレ-; 2001-01-01~ |
82982-65D00-P4Z |
from US $2.24 |
||
|
16
|
16
83101-54G00-P4Z
HANDLE,FR DR INSIDE,R(GRAY)
グレ-; 2001-01-01~ |
83101-54G00-P4Z |
— | ||
| replacement | |||||
|
16
|
16
83101-54G01-P4Z HANDLE,FR DR INSIDE,Rグレ-; 2001-01-01~ |
83101-54G01-P4Z |
US $28.70 |
||
|
17
|
17
83102-54G00-P4Z
HANDLE,FR DR INSIDE,L(GRAY)
グレ-; 2001-01-01~ |
83102-54G00-P4Z |
— | ||
| replacement | |||||
|
17
|
17
83102-54G01-P4Z HANDLE,FR DR INSIDE,Lグレ-; 2001-01-01~ |
83102-54G01-P4Z |
US $28.70 |
||
|
18
|
18
03521-05163-000
Screw
2001-01-01~ |
03521-05163-000 |
— | ||
| replacement | |||||
|
18
|
18
03521-0516A-000 SCREW2001-01-01~ |
03521-0516A-000 |
US $7.70 |
||
|
19
|
19
83119-60B00-000 NUT,FR DOOR INSIDE HANDLE2001-01-01~ |
83119-60B00-000 |
US $1.77 |
||
|
20
|
20
77591-75000-000 PAD2001-01-01~ |
77591-75000-000 |
US $2.28 |
||
|
21
|
21
83271-84G00-000 CLIP2001-01-01~ |
83271-84G00-000 |
US $2.54 |
||
|
22
|
22
09403-07324-000 CLAMP2001-01-01~ |
09403-07324-000 |
US $14 |
||
