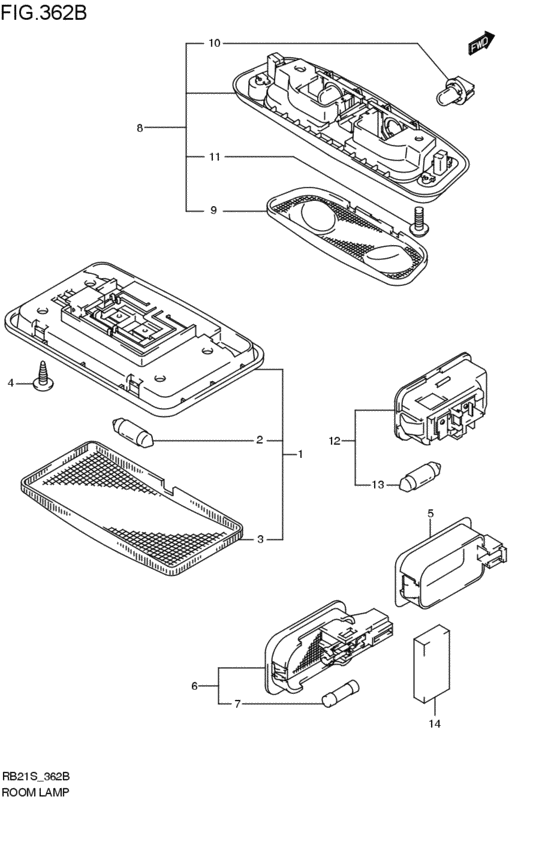

interior lamp (2001-01-01~) Diagram Suzuki AERIO
- Year
- 2000 - 2011
- Sales region
- Japan
- Engine
- M15A
- drive
- 4WD
- transmission
- MT
- body
- X
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36210-60G01-6GS LAMP ASSY,ROOMグレ-; 2001-01-01~ |
36210-60G01-6GS |
US $53.97 |
||
|
2
|
2
09471-12181-000 BULB(12V10W)2001-09-01~ |
09471-12181-000 |
US $38.30 |
||
|
2
|
2
09471-12187-000 BULB(12V8W,TOKAI DENSO)TOKAI DENSO; 2001-01-01~2001-09-01 |
09471-12187-000 |
from US $2.50 |
||
|
3
|
3
36212-60G00-000 LENS,ROOM LAMP2001-01-01~ |
36212-60G00-000 |
US $11.20 |
||
|
4
|
4
03142-05123-000
Screw
2001-01-01~ |
03142-05123-000 |
— | ||
| replacement | |||||
|
4
|
4
03141-0512A-000 SCREWScrew, belt cooling duct 2001-01-01~ |
03141-0512A-000 |
from US $0.76 |
||
|
6
|
6
36210-54G00-000
Lamp assy,luggage room
X; 2001-01-01~2001-02-01 |
36210-54G00-000 |
— | ||
|
7
|
7
09471-12081-000
Bulb (12v,5w)
TOKAI DENSO; X; 2001-01-01~2001-02-01 |
09471-12081-000 |
— | ||
| replacement | |||||
|
7
|
7
09471-12216-000 BULB(12V5W)Bulb (12v5w) TOKAI DENSO; X; 2001-01-01~2001-02-01 |
09471-12216-000 |
from US $2.84 |
||
|
8
|
8
36230-65D00-6GS
ランプアッシ,スポット(グレー)
グレ-; X; 2001-01-01~ |
36230-65D00-6GS |
— | ||
| replacement | |||||
|
8
|
8
36230-65D01-6GS LAMP ASSY,SPOTグレ-; X; 2001-01-01~ |
36230-65D01-6GS |
US $194.56 |
||
|
9
|
9
36232-65D00-000 LENS,SPOT LAMPX; 2001-01-01~ |
36232-65D00-000 |
US $8.98 |
||
|
10
|
10
09471-12081-000
Bulb (12v,5w)
TOKAI DENSO; X; 2001-01-01~ |
09471-12081-000 |
— | ||
| replacement | |||||
|
10
|
10
09471-12216-000 BULB(12V5W)Bulb (12v5w) TOKAI DENSO; X; 2001-01-01~ |
09471-12216-000 |
from US $2.84 |
||
|
11
|
11
03142-05123-000
Screw
X; 2001-01-01~ |
03142-05123-000 |
— | ||
| replacement | |||||
|
11
|
11
03141-0512A-000 SCREWScrew, belt cooling duct X; 2001-01-01~ |
03141-0512A-000 |
from US $0.76 |
||
|
12
|
12
36210-54G10-000
LAMP ASSY,LUGGAGE ROOM
X; 2001-02-01~ |
36210-54G10-000 |
— | ||
|
13
|
13
09471-12073-000 BULB(12V,5W)TOKAI DENSO; X; 2001-02-01~ |
09471-12073-000 |
from US $2.40 |
||
|
14
|
14
77591-75000-000 PADX; 2001-02-01~ |
77591-75000-000 |
US $2.28 |
||
