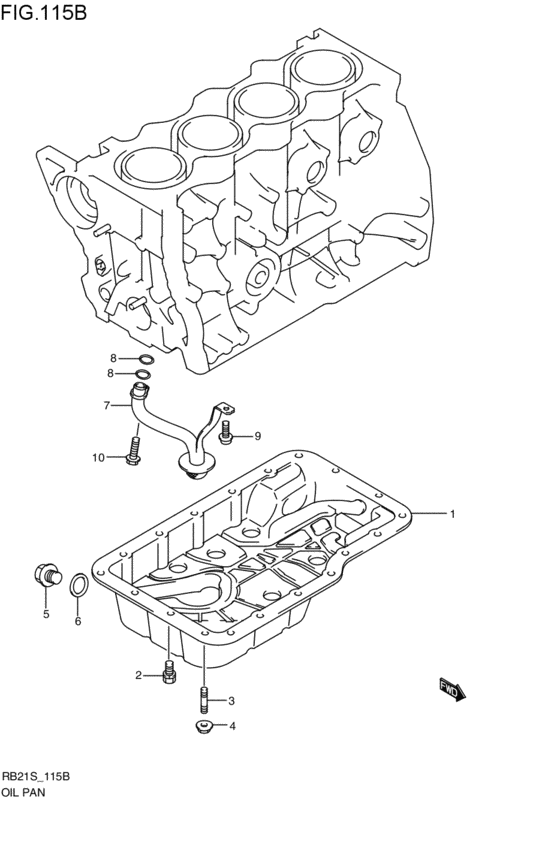

oil pan (2001-01-01~) Diagram Suzuki AERIO
- Year
- 2000 - 2011
- Sales region
- Japan
- Engine
- M15A
- drive
- 4WD
- transmission
- MT
- body
- X
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11510-69G00-000
パン,オイル
2001-01-01~2001-02-01 |
11510-69G00-000 |
— | ||
| replacements | |||||
|
1
|
1
11510-69G03-000 PAN,OIL2001-01-01~2001-02-01 |
11510-69G03-000 |
from US $133.13 |
||
|
1
|
1
16520-69G04-000 STRAINER,OIL PUMP2001-01-01~2001-02-01 |
16520-69G04-000 |
US $32.20 |
||
|
1
|
1
11510-69G01-000
パン,オイル
2001-02-01~ |
11510-69G01-000 |
— | ||
| replacement | |||||
|
1
|
1
11510-69G03-000 PAN,OIL2001-02-01~ |
11510-69G03-000 |
from US $133.13 |
||
|
2
|
2
09117-06033-000 BOLT(6X12)2001-01-01~ |
09117-06033-000 |
US $1.06 |
||
|
3
|
3
01421-06123-000
Stud m6x1x24
2001-01-01~ |
01421-06123-000 |
— | ||
| replacement | |||||
|
3
|
3
01421-0612A-000 BOLT,STUD2001-01-01~ |
01421-0612A-000 |
from US $1.12 |
||
|
4
|
4
08316-10063-000
Nut
2001-01-01~ |
08316-10063-000 |
— | ||
| replacement | |||||
|
4
|
4
08316-1006B-000 NUT2001-01-01~ |
08316-1006B-000 |
from US $0.76 |
||
|
5
|
5
09247-14027-000 PLUG(14X11.5)Plug, oil drain 2001-01-01~ |
09247-14027-000 |
from US $1.76 |
||
| replacement | |||||
|
5
|
5
09247-14044-000 DRAIN PLUG (M14x1.5)2001-01-01~ |
09247-14044-000 |
from US $1.33 |
||
|
6
|
6
09168-14015-000 GASKET(14X20X1.5)Gasket, oil hose union 2001-01-01~ |
09168-14015-000 |
from US $1.17 |
||
|
7
|
7
16520-69G00-000
ストレーナ,オイルポンプ
2001-01-01~2001-02-01 |
16520-69G00-000 |
— | ||
|
7
|
7
16520-69G01-000
ストレーナ,オイルポンプ
2001-02-01~ |
16520-69G01-000 |
— | ||
| replacement | |||||
|
7
|
7
16520-69G04-000 STRAINER,OIL PUMP2001-02-01~ |
16520-69G04-000 |
US $32.20 |
||
|
8
|
8
09280-17002-000 O RING(D:2.4,ID:16.8)O ring (d:2.4,id:16.8) 2001-01-01~ |
09280-17002-000 |
from US $2.56 |
||
|
9
|
9
07120-06123-000
Bolt
2001-01-01~ |
07120-06123-000 |
— | ||
| replacement | |||||
|
9
|
9
07120-0612B-000 BOLTPlug 2001-01-01~ |
07120-0612B-000 |
from US $0.96 |
||
|
10
|
10
07120-06163-000
Bolt
2001-01-01~ |
07120-06163-000 |
— | ||
| replacement | |||||
|
10
|
10
07120-0616B-000 BOLT2001-01-01~ |
07120-0616B-000 |
from US $0.91 |
||
