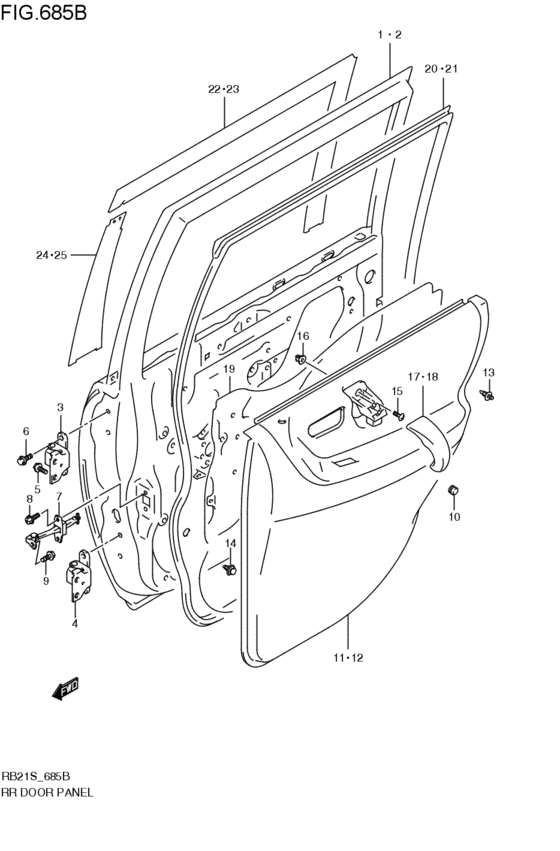

rear door panel (2001-01-01~) Diagram Suzuki AERIO
- Year
- 2000 - 2011
- Sales region
- Japan
- Engine
- M15A
- drive
- 4WD
- transmission
- MT
- body
- X
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
68003-54G00-000
パネルアッシ,リヤドア,ライト
68003-54G02+82931-54G01+82830-54810-XXX; 2001-01-01~2001-06-01 |
68003-54G00-000 |
— | ||
|
1
|
1
68003-54G02-000
パネルアッシ,リヤドア,ライト
2001-06-01~ |
68003-54G02-000 |
— | ||
| replacement | |||||
|
1
|
1
68003-54842-000 PANEL,REAR DOOR,R2001-06-01~ |
68003-54842-000 |
US $587.84 |
||
|
2
|
2
68004-54G00-000
パネルアッシ,リヤドア,レフト
68004-54G02+82941-54G01+82840-54810-XXX; 2001-01-01~2001-06-01 |
68004-54G00-000 |
— | ||
|
2
|
2
68004-54G02-000
パネルアッシ,リヤドア,レフト
2001-06-01~ |
68004-54G02-000 |
— | ||
| replacement | |||||
|
2
|
2
68004-54842-000 PANEL,REAR DOOR,L2001-06-01~ |
68004-54842-000 |
US $587.84 |
||
|
3
|
3
69430-65D00-000 HINGE,RR DOOR NO.1アッパ レフト; 2001-01-01~ |
69430-65D00-000 |
US $33.30 |
||
|
3
|
3
69440-65D00-000 HINGE,RR DOOR NO.2アッパ ライト; 2001-01-01~ |
69440-65D00-000 |
US $33.30 |
||
|
4
|
4
69430-65D00-000 HINGE,RR DOOR NO.1ロア ライト; 2001-01-01~ |
69430-65D00-000 |
US $33.30 |
||
|
4
|
4
69440-65D00-000 HINGE,RR DOOR NO.2ロア レフト; 2001-01-01~ |
69440-65D00-000 |
US $33.30 |
||
|
5
|
5
01551-08203-000
Bolt
2001-01-01~ |
01551-08203-000 |
— | ||
| replacement | |||||
|
5
|
5
01551-0820A-000 BOLT2001-01-01~ |
01551-0820A-000 |
from US $0.96 |
||
|
6
|
6
01551-08203-000
Bolt
2001-01-01~ |
01551-08203-000 |
— | ||
| replacement | |||||
|
6
|
6
01551-0820A-000 BOLT2001-01-01~ |
01551-0820A-000 |
from US $0.96 |
||
|
7
|
7
81810-54G00-000
ストップ,サイドドアオープン
2001-01-01~ |
81810-54G00-000 |
— | ||
| replacement | |||||
|
7
|
7
81810-54G04-000 STOP,SIDE DOOR OPEN2001-01-01~ |
81810-54G04-000 |
US $33.60 |
||
|
8
|
8
09122-86004-000 SCREW(6X20)2001-01-01~ |
09122-86004-000 |
US $11.80 |
||
|
9
|
9
09112-08004-000 BOLT(8X25)2001-01-01~ |
09112-08004-000 |
US $1.22 |
||
|
10
|
10
82711-56B00-000 STOPPER,FR DOORStopper, fr dr lower 2001-01-01~ |
82711-56B00-000 |
US $2.88 |
||
|
11
|
11
83730-54G00-FJ3
トリム,リヤドア,ライト(グレー)
グレー; 2001-01-01~ |
83730-54G00-FJ3 |
— | ||
| replacement | |||||
|
11
|
11
83730-54G10-FJ3
TRIM,REAR DOOR,R
グレー; 2001-01-01~ |
83730-54G10-FJ3 |
— | ||
|
11
|
11
83730-54G00-FJ5
Trim,rear door,r
ベージュ/グレー; 2001-01-01~ |
83730-54G00-FJ5 |
— | ||
| replacement | |||||
|
11
|
11
83730-54G10-FJ5
TRIM,REAR DOOR,R
ベージュ/グレー; 2001-01-01~ |
83730-54G10-FJ5 |
— | ||
|
12
|
12
83740-54G00-FJ3
トリム,リヤドア,レフト(グレー)
グレー; 2001-01-01~ |
83740-54G00-FJ3 |
— | ||
| replacement | |||||
|
12
|
12
83740-54G10-FJ3
TRIM,REAR DOOR,L
グレー; 2001-01-01~ |
83740-54G10-FJ3 |
— | ||
|
12
|
12
83740-54G00-FJ5
トリム,リヤドア,レフト(ベージュ/グレー)
ベジュ/グレー; 2001-01-01~ |
83740-54G00-FJ5 |
— | ||
| replacement | |||||
|
12
|
12
83740-54G10-FJ5
TRIM,REAR DOOR,L
ベジュ/グレー; 2001-01-01~ |
83740-54G10-FJ5 |
— | ||
|
13
|
13
09409-06314-P4Z CLIP(GRAY)グレ-; 2001-01-01~ |
09409-06314-P4Z |
US $1.60 |
||
|
14
|
14
09409-08320-000 CLIP2001-01-01~ |
09409-08320-000 |
from US $1.15 |
||
|
15
|
15
03242-06163-000
Screw
2001-01-01~ |
03242-06163-000 |
— | ||
| replacement | |||||
|
15
|
15
03241-0616C-000 SCREW2001-01-01~ |
03241-0616C-000 |
from US $0.76 |
||
|
16
|
16
09148-06007-000 NUT2001-01-01~ |
09148-06007-000 |
from US $0.86 |
||
|
17
|
17
83715-54G00-P4Z COVER,DR GRIP,Rグレ-; 2001-01-01~ |
83715-54G00-P4Z |
US $8.48 |
||
|
18
|
18
83725-54G00-P4Z COVER,DR GRIP,Lグレ-; 2001-01-01~ |
83725-54G00-P4Z |
US $10.40 |
||
|
19
|
19
83911-60X51-000
Cover, door sealing (600x1200)
2001-01-01~ |
83911-60X51-000 |
— | ||
| replacement | |||||
|
19
|
19
83911-60X52-000 COVER,DR SEALING2001-01-01~ |
83911-60X52-000 |
US $6.06 |
||
|
20
|
20
84661-54G00-000
ウェザストリップ,リヤドアオープニング,ライト
2001-01-01~ |
84661-54G00-000 |
— | ||
| replacement | |||||
|
20
|
20
84661-54G01-000 WEATHERSTRIP RR DR OPNG,R2001-01-01~ |
84661-54G01-000 |
US $87.22 |
||
|
21
|
21
84671-54G00-000
ウェザストリップ,リヤドアオープニング,レフト
2001-01-01~ |
84671-54G00-000 |
— | ||
| replacement | |||||
|
21
|
21
84671-54G01-000 WEATHERSTRIP RR DR OPNG,L2001-01-01~ |
84671-54G01-000 |
US $87.22 |
||
|
22
|
22
83925-54G00-0CB
Tape,rear door sash roof,r
ブラック; 2001-01-01~ |
83925-54G00-0CB |
— | ||
| replacement | |||||
|
22
|
22
83925-54G01-0CB TAPE,RR DR SASH ROOF,Rブラック; 2001-01-01~ |
83925-54G01-0CB |
US $49.31 |
||
|
23
|
23
83926-54G00-0CB
Tape,rear door sash roof,l
ブラック; 2001-01-01~ |
83926-54G00-0CB |
— | ||
| replacement | |||||
|
23
|
23
83926-54G01-0CB TAPE,RR DR SASH ROOF,Lブラック; 2001-01-01~ |
83926-54G01-0CB |
US $44.53 |
||
|
24
|
24
83927-54G00-0CB
Tape,rear door sash pillar,r
ブラック; 2001-01-01~ |
83927-54G00-0CB |
— | ||
| replacement | |||||
|
24
|
24
83927-54G01-0CB TAPE,RR DOOR SASH PLR,Rブラック; 2001-01-01~ |
83927-54G01-0CB |
US $24.66 |
||
|
25
|
25
83928-54G00-0CB
Tape,rear door sash pillar,l
ブラック; 2001-01-01~ |
83928-54G00-0CB |
— | ||
| replacement | |||||
|
25
|
25
83928-54G01-0CB TAPE,RR DOOR SASH PLR,Lブラック; 2001-01-01~ |
83928-54G01-0CB |
US $24.66 |
||
