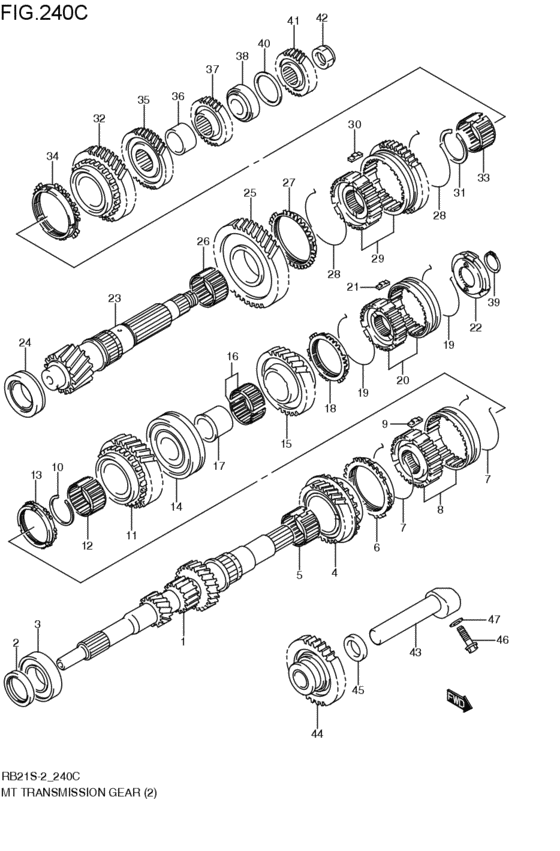

mt - transmission gear (カウンタシャフト / インプットシャフト; MT:4WD; 2001-10-01~) Diagram Suzuki AERIO
- Year
- 2001 - 2011
- Sales region
- Japan
- drive
- 4WD
- transmission
- MT
- Number of doors
- 5DR
- body
- XV
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24111-54G00-000
シャフト,トランスアクスル,インプット
MT:4WD; 2001-10-01~ |
24111-54G00-000 |
— | ||
| replacement | |||||
|
1
|
1
24111-54G01-000
SHAFT,TRANSAXLE INPUT
MT:4WD; 2001-10-01~ |
24111-54G01-000 |
— | ||
|
2
|
2
09283-25088-000 SEAL,OIL(25X38X6)MT:4WD; 2001-10-01~ |
09283-25088-000 |
from US $5.67 |
||
|
3
|
3
24117-54G00-000 BEARING,INPUT SHAFT,RMT:4WD; 2001-10-01~ |
24117-54G00-000 |
US $14.90 |
||
|
4
|
4
24230-71C00-000 GEAR,INPUT SHAFT 3RDMT:4WD; 2001-10-01~ |
24230-71C00-000 |
US $127.70 |
||
|
5
|
5
09263-35027-000 BEARING(35X40X22.8)MT:4WD; 2001-10-01~ |
09263-35027-000 |
US $10.24 |
||
|
6
|
6
24432-60A00-000 RING,SYNC HIGH SPEEDMT:4WD; 2001-10-01~ |
24432-60A00-000 |
from US $51.53 |
||
|
7
|
7
24442-70C00-000 SPRING,HIGH SPEED SYNCMT:4WD; 2001-10-01~ |
24442-70C00-000 |
US $1.77 |
||
|
8
|
8
24410-70C00-000 HUB ASSY,HIGH SPEED SYNCMT:4WD; 2001-10-01~ |
24410-70C00-000 |
US $142.42 |
||
|
9
|
9
24472-60B20-000
キー,シンクロナイザ
MT:4WD; 2001-10-01~ |
24472-60B20-000 |
— | ||
| replacement | |||||
|
9
|
9
24472-60B00-000 KEY,SYNCHRONIZERKey, low speed sync MT:4WD; 2001-10-01~ |
24472-60B00-000 |
from US $1.92 |
||
|
10
|
10
24451-60B00-000 CIRCLIPMT:4WD; 2001-10-01~ |
24451-60B00-000 |
from US $1.60 |
||
|
11
|
11
24240-71C00-000 GEAR,INPUT SHAFT 4THMT:4WD; 2001-10-01~ |
24240-71C00-000 |
US $125.86 |
||
|
12
|
12
09263-30030-000 BEARING(30X35X24.8)MT:4WD; 2001-10-01~ |
09263-30030-000 |
from US $10.18 |
||
|
13
|
13
24432-60A00-000 RING,SYNC HIGH SPEEDMT:4WD; 2001-10-01~ |
24432-60A00-000 |
from US $51.53 |
||
|
14
|
14
09262-25106-000
BEARING(25X72X19)
MT:4WD; 2001-10-01~ |
09262-25106-000 |
— | ||
| replacement | |||||
|
14
|
14
24165-63U00-000 BEARING(25X72X19)MT:4WD; 2001-10-01~ |
24165-63U00-000 |
from US $42.40 |
||
|
15
|
15
24114-71C01-000 GEAR,INPUT SHAFT 5THMT:4WD; 2001-10-01~ |
24114-71C01-000 |
from US $83.70 |
||
|
16
|
16
24200-70800-000 BEARING SETMT:4WD; 2001-10-01~ |
24200-70800-000 |
US $24 |
||
|
17
|
17
24119-70C00-000 SPACER,INPUT SHAFT 5TH GEARMT:4WD; 2001-10-01~ |
24119-70C00-000 |
US $19.50 |
||
|
18
|
18
24431-63B20-000 RING,2ND GEAR SYNCMT:4WD; 2001-10-01~ |
24431-63B20-000 |
from US $20.45 |
||
|
19
|
19
24441-60B00-000 SPRING,LOW SPEED SYNCMT:4WD; 2001-10-01~ |
24441-60B00-000 |
from US $1.58 |
||
|
20
|
20
24420-70C01-000
HUB ASSY,5TH SPEED SYNC
MT:4WD; 2001-10-01~ |
24420-70C01-000 |
— | ||
|
21
|
21
24473-70C00-000 KEY,5TH SPEED SYNCHRONIZERMT:4WD; 2001-10-01~ |
24473-70C00-000 |
US $2.39 |
||
|
22
|
22
24415-54G00-000 PLATE,5TH SYNC HUBMT:4WD; 2001-10-01~ |
24415-54G00-000 |
US $4.34 |
||
|
23
|
23
24131-74C00-000
SHAFT,TRANSAXLE COUNTER
MT:4WD; 2001-10-01~ |
24131-74C00-000 |
— | ||
|
24
|
24
09265-28005-000 BEARING(28X52X16)MT:4WD; 2001-10-01~ |
09265-28005-000 |
US $44.84 |
||
|
25
|
25
24311-71C00-000 GEAR,CTSHFT 1STMT:4WD; 2001-10-01~ |
24311-71C00-000 |
US $125.12 |
||
|
26
|
26
09263-37005-000 BEARING(37X42X23.8)MT:4WD; 2001-10-01~ |
09263-37005-000 |
US $12.32 |
||
|
27
|
27
24431-70C00-000 RING,1ST GEAR SYNCMT:4WD; 2001-10-01~ |
24431-70C00-000 |
US $26.86 |
||
|
28
|
28
24441-70C00-000 SPRING,LOW SPEED SYNCMT:4WD; 2001-10-01~ |
24441-70C00-000 |
US $1.77 |
||
|
29
|
29
24400-55G00-000 HUB ASSY,LOW SPEED SYNCMT:4WD; 2001-10-01~ |
24400-55G00-000 |
US $164.13 |
||
|
30
|
30
24471-70C00-000 KEY,LOW SPEED SYNCHRONIZERMT:4WD; 2001-10-01~ |
24471-70C00-000 |
US $2.39 |
||
|
31
|
31
24451-70C00-000 CIRCLIP,LOW SPEED SYNC HUBMT:4WD; 2001-10-01~ |
24451-70C00-000 |
US $1.60 |
||
|
32
|
32
24321-55G00-000
Gear,countershaft 2nd
MT:4WD; 2001-10-01~ |
24321-55G00-000 |
— | ||
| replacement | |||||
|
32
|
32
24321-55G01-000 GEAR,COUNTERSHAFT 2NDMT:4WD; 2001-10-01~ |
24321-55G01-000 |
US $217.60 |
||
|
33
|
33
09263-35027-000 BEARING(35X40X22.8)MT:4WD; 2001-10-01~ |
09263-35027-000 |
US $10.24 |
||
|
34
|
34
24430-55G00-000
Ring assy,2nd gear sync
MT:4WD; 2001-10-01~ |
24430-55G00-000 |
— | ||
| replacement | |||||
|
34
|
34
24430-55G01-000 RING ASSY,LOW GEAR SYNCMT:4WD; 2001-10-01~ |
24430-55G01-000 |
from US $80.19 |
||
|
35
|
35
24331-71C00-000 GEAR,CTSHFT 3RDMT:4WD; 2001-10-01~ |
24331-71C00-000 |
US $85.89 |
||
|
36
|
36
24336-70C00-000 SPACER,3RD&4TH GEARMT:4WD; 2001-10-01~ |
24336-70C00-000 |
US $16.41 |
||
|
37
|
37
24341-71C00-000 GEAR,CTSHFT 4THMT:4WD; 2001-10-01~ |
24341-71C00-000 |
US $89.79 |
||
|
38
|
38
09265-25029-000 BEARING(25X52X19.25)MT:4WD; 2001-10-01~ |
09265-25029-000 |
US $40.28 |
||
|
39
|
39
08331-31246-000 Circlip, engine sprocketMT:4WD; 2001-10-01~ |
08331-31246-000 |
from US $0.66 |
||
| replacement | |||||
|
39
|
39
08331-3124A-000 CIRCLIPCirclip, output shaft MT:4WD; 2001-10-01~ |
08331-3124A-000 |
from US $1.15 |
||
|
40
|
40
09181-41002-000 SHIM(41X52X0.55)MT:4WD; 2001-10-01~ |
09181-41002-000 |
US $3.13 |
||
|
40
|
40
09181-41003-000 SHIM(41X52X0.6)Shim (t:0.60) MT:4WD; 2001-10-01~ |
09181-41003-000 |
from US $9.93 |
||
|
40
|
40
09181-41004-000 SHIM(41X52X0.65)Shim (t:0.65) MT:4WD; 2001-10-01~ |
09181-41004-000 |
from US $2.30 |
||
|
40
|
40
09181-41005-000 SHIM(41X52X0.7)Shim (t:0.70) MT:4WD; 2001-10-01~ |
09181-41005-000 |
from US $2.30 |
||
|
40
|
40
09181-41006-000 SHIM(41X52X0.75)Shim (t:0.75) MT:4WD; 2001-10-01~ |
09181-41006-000 |
from US $2.30 |
||
|
40
|
40
09181-41007-000 SHIM(41X52X0.8)MT:4WD; 2001-10-01~ |
09181-41007-000 |
US $35.30 |
||
|
40
|
40
09181-41008-000 SHIM(41X52X0.85)Shim (t:0.85) MT:4WD; 2001-10-01~ |
09181-41008-000 |
from US $2.30 |
||
|
40
|
40
09181-41009-000 SHIM(41X52X0.9)Shim (t:0.90) MT:4WD; 2001-10-01~ |
09181-41009-000 |
from US $9.93 |
||
|
40
|
40
09181-41010-000 SHIM(41X52X0.95)Shim (t:0.95) MT:4WD; 2001-10-01~ |
09181-41010-000 |
from US $2.30 |
||
|
40
|
40
09181-41011-000 SHIM(41X52X1)MT:4WD; 2001-10-01~ |
09181-41011-000 |
US $35.30 |
||
|
40
|
40
09181-41012-000 SHIM(41X52X1.05)Shim (t:1.05) MT:4WD; 2001-10-01~ |
09181-41012-000 |
from US $2.72 |
||
|
40
|
40
09181-41013-000 SHIM(41X52X1.1)Shim (t:1.10) MT:4WD; 2001-10-01~ |
09181-41013-000 |
from US $2.30 |
||
|
40
|
40
09181-41014-000 SHIM(41X52X1.15)Shim (t:1.15) MT:4WD; 2001-10-01~ |
09181-41014-000 |
from US $2.30 |
||
|
41
|
41
24351-71C00-000 GEAR,CTSHFT 5THMT:4WD; 2001-10-01~ |
24351-71C00-000 |
US $180.80 |
||
|
42
|
42
09159-20009-000 NUTMT:4WD; 2001-10-01~ |
09159-20009-000 |
US $5.92 |
||
|
43
|
43
24551-70C02-000 SHAFT,T/M REVERSE GEARMT:4WD; 2001-10-01~ |
24551-70C02-000 |
US $27.97 |
||
|
44
|
44
24560-70C20-000
ギヤ,リバースアイドラ
MT:4WD; 2001-10-01~ |
24560-70C20-000 |
— | ||
| replacement | |||||
|
44
|
44
24560-70C60-000 GEAR COMP,REVERSE IDLERMT:4WD; 2001-10-01~ |
24560-70C60-000 |
US $66.61 |
||
|
45
|
45
09161-18004-000 WASHER(18X27X5.5)MT:4WD; 2001-10-01~ |
09161-18004-000 |
US $26.50 |
||
|
46
|
46
24565-60B00-000 BOLT,REVERSE SHAFTMT:4WD; 2001-10-01~ |
24565-60B00-000 |
from US $1.49 |
||
|
47
|
47
09168-09001-000
Gasket,9.2x17x1.6
MT:4WD; 2001-10-01~ |
09168-09001-000 |
— | ||
| replacement | |||||
|
47
|
47
09168-08030-000 GASKET(8.2X17X1)MT:4WD; 2001-10-01~ |
09168-08030-000 |
from US $2.07 |
||
