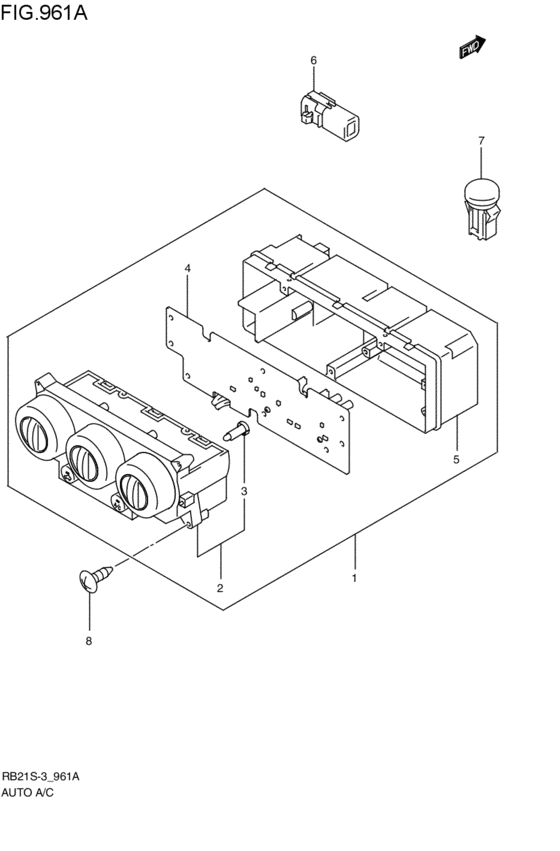

automatic air-conditioner (XV,Z; 2002-06-01~) Diagram Suzuki AERIO
- Year
- 2002 - 2011
- Sales region
- Japan
- Engine
- M15A
- drive
- 4WD
- transmission
- MT
- Number of doors
- 5DR
- body
- XV
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
95610-54G02-KU7
パネルユニット,オートエアコン
XV,Z; 2002-06-01~ |
95610-54G02-KU7 |
— | ||
|
2
|
2
95611-54G00-000
PANEL,AUTO A/C
XV,Z; 2002-06-01~ |
95611-54G00-000 |
— | ||
|
3
|
3
95615-54G00-000 BULB,PERMEATION LIGHTXV,Z; 2002-06-01~ |
95615-54G00-000 |
US $11.04 |
||
|
4
|
4
95600-64843-000
BOARD SET,AUTO A/C
XV,Z; 2002-06-01~ |
95600-64843-000 |
— | ||
|
5
|
5
95618-78F80-000
Case,auto a/c
XV,Z; 2002-06-01~ |
95618-78F80-000 |
— | ||
|
6
|
6
95643-65D00-000 SENSOR,OUTSIDE TEMPXV,Z; 2002-06-01~ |
95643-65D00-000 |
US $26.31 |
||
|
7
|
7
95642-64G20-000
SENSOR,SUN LIGHT
DENSO; XV,Z; 2002-06-01~ |
95642-64G20-000 |
— | ||
|
8
|
8
03541-05163-000
Screw
XV,Z; 2002-06-01~ |
03541-05163-000 |
— | ||
| replacement | |||||
|
8
|
8
03541-0516A-000 SCREWXV,Z; 2002-06-01~ |
03541-0516A-000 |
from US $0.76 |
||
