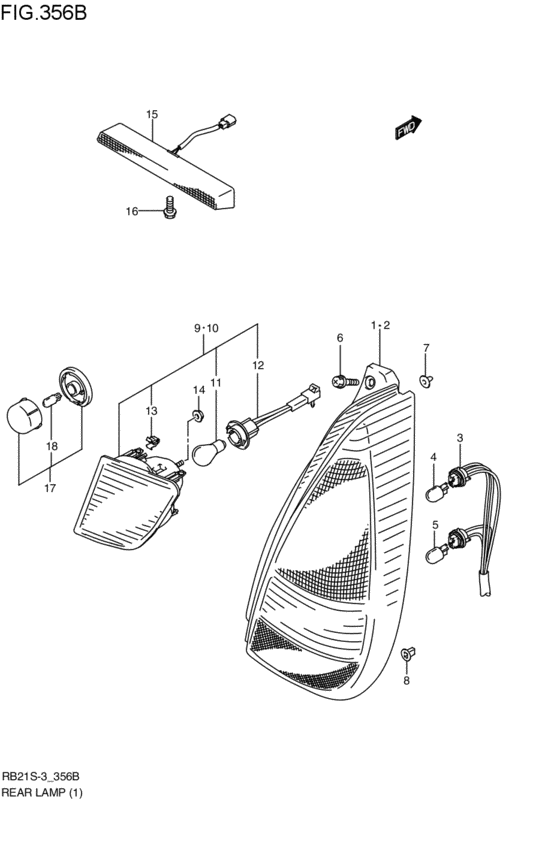

rear lamp (5DR; 2002-06-01~) Diagram Suzuki AERIO
- Year
- 2002 - 2011
- Sales region
- Japan
- Engine
- M15A
- drive
- 4WD
- transmission
- MT
- Number of doors
- 5DR
- body
- XV
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35650-54G00-000 LAMP UNIT,RR COMB,R5DR; 2002-06-01~ |
35650-54G00-000 |
US $171.86 |
||
|
2
|
2
35670-54G00-000 LAMP UNIT,RR COMB,L5DR; 2002-06-01~ |
35670-54G00-000 |
US $171.86 |
||
|
3
|
3
35658-54G00-000
SOCKET&CORD ASSY,RR COMB
5DR; 2002-06-01~ |
35658-54G00-000 |
— | ||
|
4
|
4
09471-12192-000 BULB(12V21/5W)5DR; 2002-06-01~ |
09471-12192-000 |
US $3.19 |
||
|
5
|
5
09471-12191-000 BULB(12V21W)5DR; 2002-06-01~ |
09471-12191-000 |
US $44.20 |
||
|
6
|
6
09122-76004-000 SCREW(6X16)5DR; 2002-06-01~ |
09122-76004-000 |
US $0.96 |
||
|
7
|
7
35153-63G00-000 GROMMET,RR COMB LAMP5DR; 2002-06-01~ |
35153-63G00-000 |
US $2.69 |
||
|
8
|
8
35153-54G00-000 GROMMET,RR COMB LAMP5DR; 2002-06-01~ |
35153-54G00-000 |
US $1.95 |
||
|
9
|
9
36250-54G00-000 LAMP ASSY,BACK UP,R5DR; 2002-06-01~ |
36250-54G00-000 |
US $56.67 |
||
|
10
|
10
36270-54G00-000 LAMP ASSY,BACK UP,L5DR; 2002-06-01~ |
36270-54G00-000 |
US $134.32 |
||
|
11
|
11
09471-12045-000 BULB(12V21W)STANLEY,A4957E; 5DR; 2002-06-01~ |
09471-12045-000 |
from US $4.41 |
||
|
12
|
12
36258-54G00-000 SOCKET&CORD5DR; 2002-06-01~ |
36258-54G00-000 |
US $11.22 |
||
|
13
|
13
09409-08326-000 CLIP5DR; 2002-06-01~ |
09409-08326-000 |
from US $0.76 |
||
|
14
|
14
08316-10063-000
Nut
5DR; 2002-06-01~ |
08316-10063-000 |
— | ||
| replacement | |||||
|
14
|
14
08316-1006B-000 NUT5DR; 2002-06-01~ |
08316-1006B-000 |
from US $0.76 |
||
|
15
|
15
35810-82D00-000 LAMP ASSY,HIGH MT STOP5DR; 2002-06-01~ |
35810-82D00-000 |
US $90.53 |
||
|
16
|
16
02142-04123-000
Screw
5DR; 2002-06-01~ |
02142-04123-000 |
— | ||
| replacement | |||||
|
16
|
16
02142-0412A-000 SCREW5DR; 2002-06-01~ |
02142-0412A-000 |
from US $2.04 |
||
|
17
|
17
35910-75F30-000
Lamp assy,license
5DR; 2002-06-01~ |
35910-75F30-000 |
— | ||
| replacement | |||||
|
17
|
17
35910-75F31-000
Lamp assy,license
5DR; 2002-06-01~ |
35910-75F31-000 |
— | ||
|
18
|
18
09471-12216-000 BULB(12V5W)Bulb (12v5w) 5DR; 2002-06-01~ |
09471-12216-000 |
from US $4.32 |
||
