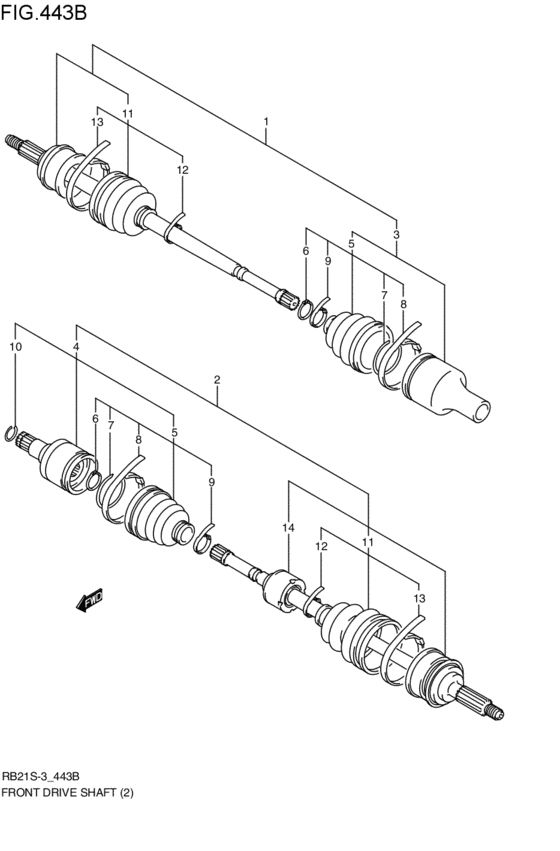

front-drive shaft (M15A:4WD:MT; 2002-06-01~) Diagram Suzuki AERIO
- Year
- 2002 - 2003
- Sales region
- Japan
- Engine
- M15A
- drive
- 4WD
- transmission
- MT
- Number of doors
- 5DR
- body
- XR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
44101-54G50-000 SHAFT ASSY,FRONT DRIVE,RM15A:4WD:MT; 2002-06-01~ |
44101-54G50-000 |
US $696.96 |
||
|
2
|
2
44102-54G30-000
シャフトアッシ,フロントドライブ,レフト
M15A:4WD:MT; 2002-06-01~ |
44102-54G30-000 |
— | ||
| replacement | |||||
|
2
|
2
44102-54G31-000 SHAFT ASSY,FRONT DRIVE,LM15A:4WD:MT; 2002-06-01~ |
44102-54G31-000 |
US $696.96 |
||
|
3
|
3
44117-54G10-000
JOINT ASSY,DIFF SIDE
ライト; M15A:4WD:MT; 2002-06-01~ |
44117-54G10-000 |
— | ||
| replacement | |||||
|
3
|
3
44117-54G11-000 JOINT ASSY,DIFF SIDEライト; M15A:4WD:MT; 2002-06-01~ |
44117-54G11-000 |
US $401.28 |
||
|
4
|
4
44117-54G00-000
ジョイントアッシ,ディファレンシャルサイド
レフト; M15A:4WD:MT; 2002-06-01~ |
44117-54G00-000 |
— | ||
| replacement | |||||
|
4
|
4
44117-54G01-000 JOINT ASSY,DIFF SIDEレフト; M15A:4WD:MT; 2002-06-01~ |
44117-54G01-000 |
US $401.28 |
||
|
5
|
5
44119-54G00-000
ブーツセット,ディファレンシャルサイド
M15A:4WD:MT; 2002-06-01~ |
44119-54G00-000 |
— | ||
| replacement | |||||
|
5
|
5
44119-60J02-000 BOOT SET,DIFF SIDEM15A:4WD:MT; 2002-06-01~ |
44119-60J02-000 |
US $72.50 |
||
|
6
|
6
44111-53B10-000 RING,SNAPM15A:4WD:MT; 2002-06-01~ |
44111-53B10-000 |
from US $1.13 |
||
|
7
|
7
44112-53B10-000 CIRCLIPM15A:4WD:MT; 2002-06-01~ |
44112-53B10-000 |
US $4.38 |
||
|
8
|
8
44121-53B10-000 BAND,BOOTM15A:4WD:MT; 2002-06-01~ |
44121-53B10-000 |
US $13.14 |
||
|
9
|
9
44123-53B10-000 BAND,BOOT SMALLM15A:4WD:MT; 2002-06-01~ |
44123-53B10-000 |
US $8.02 |
||
|
10
|
10
44111-65D00-000 RING,SNAPレフト; M15A:4WD:MT; 2002-06-01~ |
44111-65D00-000 |
from US $1.60 |
||
|
11
|
11
44118-54G00-000
ブーツセット,ホイールサイド
M15A:4WD:MT; 2002-06-01~ |
44118-54G00-000 |
— | ||
| replacement | |||||
|
11
|
11
44118-54G04-000 BOOT SET,WHEEL SIDEM15A:4WD:MT; 2002-06-01~ |
44118-54G04-000 |
from US $68.76 |
||
|
12
|
12
44124-60A00-000 BANDM15A:4WD:MT; 2002-06-01~ |
44124-60A00-000 |
US $7.95 |
||
|
13
|
13
44122-86010-000 BAND,BOOTClamp, differential side outer boot M15A:4WD:MT; 2002-06-01~ |
44122-86010-000 |
from US $9.02 |
||
|
14
|
14
44125-54G20-000
Damper set
レフト; M15A:4WD:MT; 2002-06-01~ |
44125-54G20-000 |
— | ||
| replacement | |||||
|
14
|
14
44125-54GC0-000 DAMPER SETレフト; M15A:4WD:MT; 2002-06-01~ |
44125-54GC0-000 |
US $109.60 |
||
