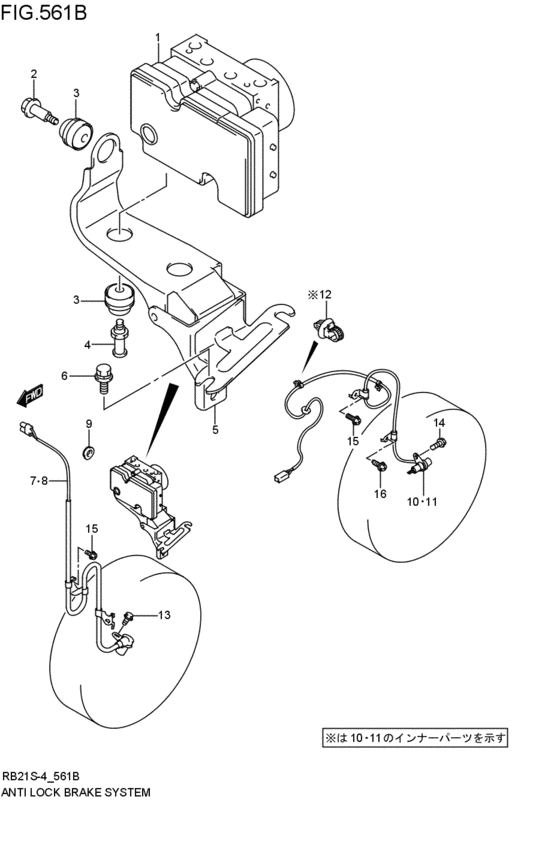

antilock brake system (2003-10-01~2004-08-01) Diagram Suzuki AERIO
- Year
- 2003 - 2011
- Sales region
- Japan
- Engine
- M15A
- drive
- 4WD
- Number of doors
- 5DR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
56110-59JB0-000 ACTUATOR ASSY,ABS4WD; 2003-10-01~2004-08-01 |
56110-59JB0-000 |
US $1,386.32 |
||
|
2
|
2
56111-75F00-000 BOLT,ACTUATOR MOUNT2003-10-01~2004-08-01 |
56111-75F00-000 |
US $4.11 |
||
|
3
|
3
56112-75F00-000 DAMPER,ACTUATOR MOUNT2003-10-01~2004-08-01 |
56112-75F00-000 |
US $3.20 |
||
|
4
|
4
56113-59J00-000 BOLT,ACTUATOR LWR MOUNT2003-10-01~2004-08-01 |
56113-59J00-000 |
US $3.65 |
||
|
5
|
5
56160-59J00-000
BRACKET,ACTUATOR
2003-10-01~2004-08-01 |
56160-59J00-000 |
— | ||
|
6
|
6
09112-08004-000 BOLT(8X25)2003-10-01~2004-08-01 |
09112-08004-000 |
US $1.22 |
||
|
7
|
7
56210-59J00-000 SENSOR,FR WHEEL,R2003-10-01~2004-08-01 |
56210-59J00-000 |
US $102.51 |
||
| replacement | |||||
|
7
|
7
56210-59J01-000 SENSOR,FR WHEEL,R2003-10-01~2004-08-01 |
56210-59J01-000 |
US $128.43 |
||
|
8
|
8
56220-59J00-000
SENSOR,FR WHEEL,L
2003-10-01~2004-08-01 |
56220-59J00-000 |
— | ||
| replacement | |||||
|
8
|
8
56220-59J01-000 SENSOR,FR WHEEL,L2003-10-01~2004-08-01 |
56220-59J01-000 |
US $128.43 |
||
|
9
|
9
56211-54G00-000 GROMMET,FR ABS SENSOR HARNESS2003-10-01~2004-08-01 |
56211-54G00-000 |
US $3.09 |
||
|
10
|
10
56310-54G10-000 SENSOR,RR WHEEL,R4WD; 2003-10-01~2004-08-01 |
56310-54G10-000 |
US $384 |
||
|
11
|
11
56320-54G10-000
SENSOR,RR WHEEL,L
4WD; 2003-10-01~2004-08-01 |
56320-54G10-000 |
— | ||
|
12
|
12
56298-81A00-000 CLAMP2003-10-01~2004-08-01 |
56298-81A00-000 |
US $1.92 |
||
|
13
|
13
01551-08163-000
Bolt
2003-10-01~2004-08-01 |
01551-08163-000 |
— | ||
| replacements | |||||
|
13
|
13
01551-0816C-000 Bolt2003-10-01~2004-08-01 |
01551-0816C-000 |
from US $0.96 |
||
|
13
|
13
01551-0816A-000
ボルト
2003-10-01~2004-08-01 |
01551-0816A-000 |
— | ||
|
14
|
14
01550-08123-000
Bolt
2003-10-01~2004-08-01 |
01550-08123-000 |
— | ||
| replacements | |||||
|
14
|
14
01550-0812B-000 BoltPlug, drain 2003-10-01~2004-08-01 |
01550-0812B-000 |
from US $0.96 |
||
|
14
|
14
01550-0812A-000 BOLT2003-10-01~2004-08-01 |
01550-0812A-000 |
from US $0.91 |
||
|
15
|
15
02162-06123-000
Bolt (6x12)
2003-10-01~2004-08-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
15
|
15
02162-0612B-000 SCREWBolt 2003-10-01~2004-08-01 |
02162-0612B-000 |
from US $0.80 |
||
|
15
|
15
02162-0612A-000 SCREWBolt, bracket 2003-10-01~2004-08-01 |
02162-0612A-000 |
from US $0.80 |
||
|
16
|
16
09132-06006-000 SCREW(6X12)2003-10-01~2004-08-01 |
09132-06006-000 |
US $1.60 |
||
