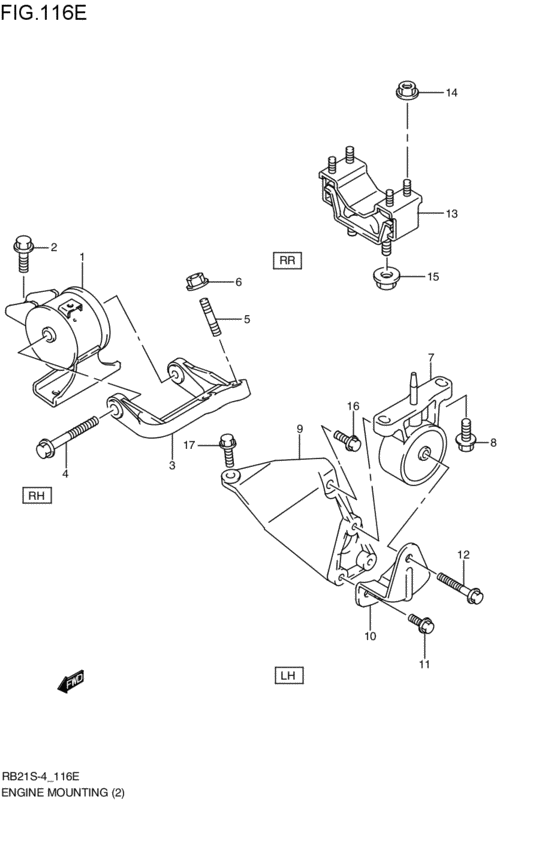

engine mounting (M15A:4WD; 2003-10-01~2004-08-01) Diagram Suzuki AERIO
- Year
- 2003 - 2011
- Sales region
- Japan
- Engine
- M15A
- drive
- 4WD
- Number of doors
- 5DR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11610-54G20-000
Mounting,engine rh
M15A:4WD; 2003-10-01~2004-08-01 |
11610-54G20-000 |
— | ||
| replacement | |||||
|
1
|
1
11610-54G30-000 MOUNTING,ENG,RM15A:4WD; 2003-10-01~2004-08-01 |
11610-54G30-000 |
from US $160.88 |
||
|
2
|
2
01550-10203-000
Bolt
M15A:4WD; 2003-10-01~2004-08-01 |
01550-10203-000 |
— | ||
| replacement | |||||
|
2
|
2
01550-1020A-000 BOLTBolt, bal sprocket M15A:4WD; 2003-10-01~2004-08-01 |
01550-1020A-000 |
from US $0.96 |
||
|
3
|
3
11641-54G10-000 BRACKET,ENG MTG,RM15A:4WD; 2003-10-01~2004-08-01 |
11641-54G10-000 |
US $47.10 |
||
|
4
|
4
09103-10322-000 BOLT(10X125)M15A:4WD; 2003-10-01~2004-08-01 |
09103-10322-000 |
US $8.48 |
||
|
5
|
5
09108-10136-000 BOLT,STUD(10X50)M15A:4WD; 2003-10-01~2004-08-01 |
09108-10136-000 |
US $2.40 |
||
|
6
|
6
09159-10105-000
Nut, rr lh case
M15A:4WD; 2003-10-01~2004-08-01 |
09159-10105-000 |
— | ||
| replacement | |||||
|
6
|
6
09159-10116-000 NUTM15A:4WD; 2003-10-01~2004-08-01 |
09159-10116-000 |
from US $1.28 |
||
|
7
|
7
11620-54G11-000 MOUNTING,ENG,LM15A:4WD; 2003-10-01~2004-08-01 |
11620-54G11-000 |
from US $100.46 |
||
|
8
|
8
09112-10019-000 BOLT(10X45)M15A:4WD; 2003-10-01~2004-08-01 |
09112-10019-000 |
US $21.70 |
||
|
9
|
9
11651-54G00-000 BRACKET,ENG MTG NO.1,LM15A:4WD; 2003-10-01~2004-08-01 |
11651-54G00-000 |
US $86.11 |
||
|
10
|
10
11671-60G11-000 BRACKET,ENG MTG N0.2,LM15A:4WD; 2003-10-01~2004-08-01 |
11671-60G11-000 |
US $13.43 |
||
|
11
|
11
01550-08203-000
Bolt
M15A:4WD; 2003-10-01~2004-08-01 |
01550-08203-000 |
— | ||
| replacements | |||||
|
11
|
11
01550-0820B-000 BoltM15A:4WD; 2003-10-01~2004-08-01 |
01550-0820B-000 |
from US $0.91 |
||
|
11
|
11
01550-0820A-000 BOLTBolt, funnel bracket M15A:4WD; 2003-10-01~2004-08-01 |
01550-0820A-000 |
from US $0.96 |
||
|
12
|
12
01550-10803-000
Bolt
M15A:4WD; 2003-10-01~2004-08-01 |
01550-10803-000 |
— | ||
| replacement | |||||
|
12
|
12
01550-1080A-000 BoltM15A:4WD; 2003-10-01~2004-08-01 |
01550-1080A-000 |
US $21.70 |
||
|
13
|
13
11710-54G02-000 MOUNTING,ENG RRM15A:4WD; 2003-10-01~2004-08-01 |
11710-54G02-000 |
US $164.80 |
||
|
14
|
14
08316-10083-000
Nut
M15A:4WD; 2003-10-01~2004-08-01 |
08316-10083-000 |
— | ||
| replacement | |||||
|
14
|
14
08316-1008B-000 NUTM15A:4WD; 2003-10-01~2004-08-01 |
08316-1008B-000 |
from US $0.76 |
||
|
15
|
15
08316-10103-000
Nut
M15A:4WD; 2003-10-01~2004-08-01 |
08316-10103-000 |
— | ||
| replacement | |||||
|
15
|
15
08316-1010B-000 NUTM15A:4WD; 2003-10-01~2004-08-01 |
08316-1010B-000 |
from US $0.80 |
||
|
16
|
16
01550-10253-000
Bolt
M15A:4WD; 2003-10-01~2004-08-01 |
01550-10253-000 |
— | ||
| replacements | |||||
|
16
|
16
01550-1025B-000 BoltBolt, rr swgarm bracket, l M15A:4WD; 2003-10-01~2004-08-01 |
01550-1025B-000 |
from US $5.59 |
||
|
16
|
16
01550-1025A-000 BOLTBolt, drive gear M15A:4WD; 2003-10-01~2004-08-01 |
01550-1025A-000 |
from US $1.06 |
||
|
17
|
17
01550-10303-000
Bolt
M15A:4WD; 2003-10-01~2004-08-01 |
01550-10303-000 |
— | ||
| replacements | |||||
|
17
|
17
01550-1030B-000 BOLTBolt, axle housing rear M15A:4WD; 2003-10-01~2004-08-01 |
01550-1030B-000 |
from US $5.07 |
||
|
17
|
17
01550-1030A-000 BOLTM15A:4WD; 2003-10-01~2004-08-01 |
01550-1030A-000 |
from US $1.12 |
||
