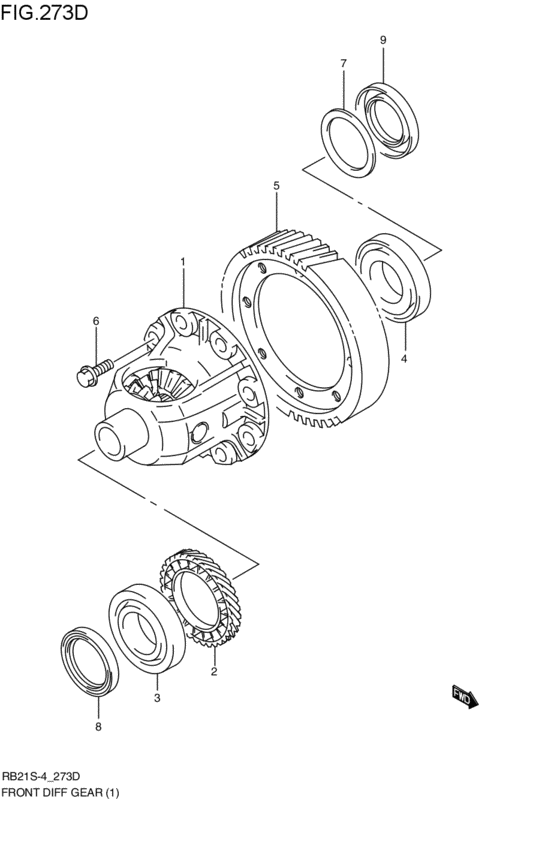

フロントデファレンシャルギヤ (M15A; 2003-10-01~2004-08-01) Diagram Suzuki AERIO
- Year
- 2003 - 2011
- Sales region
- Japan
- Engine
- M15A
- drive
- 4WD
- Number of doors
- 5DR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
27320-68JT0-000
GEAR ASSY,DIFFERENTIAL
M15A:4WD; 2003-10-01~2004-08-01 |
27320-68JT0-000 |
— | ||
|
2
|
2
26121-68J10-000 GEAR,SPDOM DRIVEM15A:4WD; 2003-10-01~2004-08-01 |
26121-68J10-000 |
US $15.68 |
||
|
3
|
3
27481-68J10-000 BEARING ASSY,DIFF SIDE,RM15A:4WD; 2003-10-01~2004-08-01 |
27481-68J10-000 |
from US $24.28 |
||
|
4
|
4
27485-68J10-000 BEARING ASSY,DIFF SIDE,LM15A:4WD; 2003-10-01~2004-08-01 |
27485-68J10-000 |
from US $32.57 |
||
|
5
|
5
27511-79C10-000 GEAR,FINAL DRIVENM15A:4WD; 2003-10-01~2004-08-01 |
27511-79C10-000 |
US $176.64 |
||
|
6
|
6
27516-79C10-000 BOLT,FINAL GEARM15A; 2003-10-01~2004-08-01 |
27516-79C10-000 |
US $4.64 |
||
|
7
|
7
27454-79CT0-000
Shim set,diff side brg
M15A; 2003-10-01~2004-08-01 |
27454-79CT0-000 |
— | ||
| replacement | |||||
|
7
|
7
27454-77MT0-000 SHIM SET,DIFF SIDE BRGM15A; 2003-10-01~2004-08-01 |
27454-77MT0-000 |
US $85.01 |
||
|
9
|
9
27612-79C10-000 SEAL,DIFF SIDE OIL, LHM15A; 2003-10-01~2004-08-01 |
27612-79C10-000 |
from US $8.35 |
||
