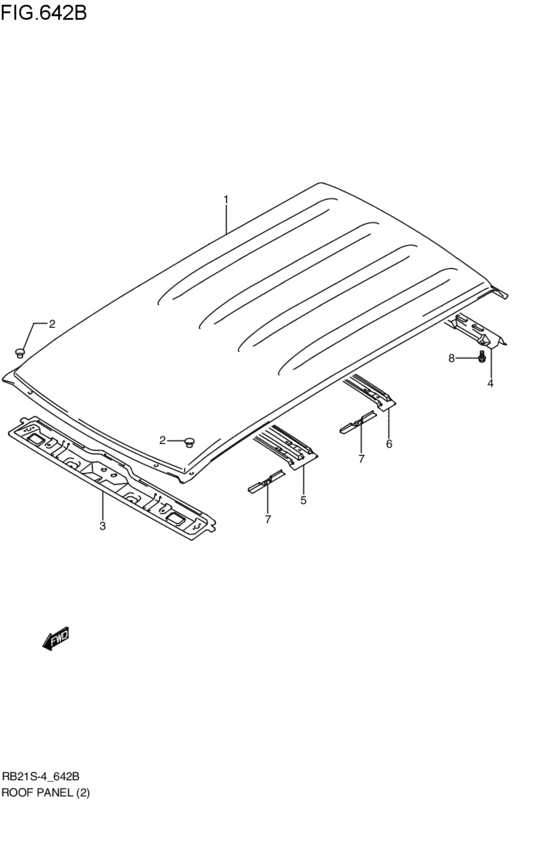

ル - フパネル (5DR; 2003-10-01~2004-08-01) Diagram Suzuki AERIO
- Year
- 2003 - 2011
- Sales region
- Japan
- Engine
- M15A
- drive
- 4WD
- Number of doors
- 5DR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
65111-54G00-000 PANEL,ROOF5DR; 2003-10-01~2004-08-01 |
65111-54G00-000 |
US $412.16 |
||
|
2
|
2
65112-84000-000 STUD,MOLDING5DR; 2003-10-01~2004-08-01 |
65112-84000-000 |
US $1.29 |
||
|
3
|
3
65121-54G00-000 RAIL,ROOF FR INNER5DR; 2003-10-01~2004-08-01 |
65121-54G00-000 |
US $49.31 |
||
|
4
|
4
65130-54G10-000
MEMBER,ROOF BACK INR
5DR; 2003-10-01~2004-08-01 |
65130-54G10-000 |
— | ||
|
5
|
5
65151-54G00-000
REINF,ROOF PANEL CTR NO.1
5DR; 2003-10-01~2004-08-01 |
65151-54G00-000 |
— | ||
|
6
|
6
65152-54G01-000
REINF,ROOF PANEL CTR NO.2
5DR; 2003-10-01~2004-08-01 |
65152-54G01-000 |
— | ||
|
7
|
7
65161-54G00-000 BRACKET,ROOF CARRIER5DR; 2003-10-01~2004-08-01 |
65161-54G00-000 |
US $6.81 |
||
|
8
|
8
02162-06123-000
Bolt (6x12)
5DR; 2003-10-01~2004-08-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
8
|
8
02162-0612B-000 SCREWBolt 5DR; 2003-10-01~2004-08-01 |
02162-0612B-000 |
from US $0.80 |
||
|
8
|
8
02162-0612A-000 SCREWBolt, bracket 5DR; 2003-10-01~2004-08-01 |
02162-0612A-000 |
from US $0.80 |
||
