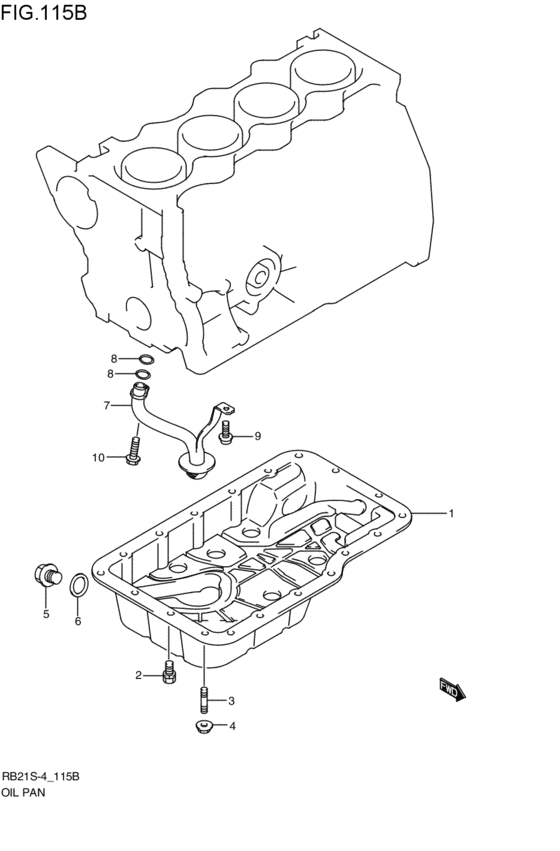

oil pan (2003-10-01~2004-08-01) Diagram Suzuki AERIO
- Year
- 2003 - 2011
- Sales region
- Japan
- Engine
- M15A
- drive
- 4WD
- Number of doors
- 5DR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11510-69G03-000 PAN,OIL2003-10-01~2004-08-01 |
11510-69G03-000 |
from US $133.13 |
||
|
2
|
2
09117-06061-000 BOLT(6X16)2003-10-01~2004-08-01 |
09117-06061-000 |
from US $1.13 |
||
|
3
|
3
01421-06123-000
Stud m6x1x24
2003-10-01~2004-08-01 |
01421-06123-000 |
— | ||
| replacement | |||||
|
3
|
3
01421-0612A-000 BOLT,STUD2003-10-01~2004-08-01 |
01421-0612A-000 |
from US $1.12 |
||
|
4
|
4
09159-06077-000 NUT2003-10-01~2004-08-01 |
09159-06077-000 |
US $1.28 |
||
|
5
|
5
09247-14027-000 PLUG(14X11.5)Plug, oil drain 2003-10-01~2004-08-01 |
09247-14027-000 |
from US $1.76 |
||
| replacement | |||||
|
5
|
5
09247-14044-000 DRAIN PLUG (M14x1.5)2003-10-01~2004-08-01 |
09247-14044-000 |
from US $1.33 |
||
|
6
|
6
09168-14015-000 GASKET(14X20X1.5)Gasket, oil hose union 2003-10-01~2004-08-01 |
09168-14015-000 |
from US $1.17 |
||
|
7
|
7
16520-69G02-000
ストレーナ,オイルポンプ
2003-10-01~2004-08-01 |
16520-69G02-000 |
— | ||
| replacement | |||||
|
7
|
7
16520-69G04-000 STRAINER,OIL PUMP2003-10-01~2004-08-01 |
16520-69G04-000 |
US $32.20 |
||
|
8
|
8
09280-17002-000 O RING(D:2.4,ID:16.8)O ring (d:2.4,id:16.8) 2003-10-01~2004-08-01 |
09280-17002-000 |
from US $2.56 |
||
|
9
|
9
07120-06123-000
Bolt
2003-10-01~2004-08-01 |
07120-06123-000 |
— | ||
| replacement | |||||
|
9
|
9
07120-0612B-000 BOLTPlug 2003-10-01~2004-08-01 |
07120-0612B-000 |
from US $0.96 |
||
|
10
|
10
07120-06163-000
Bolt
2003-10-01~2004-08-01 |
07120-06163-000 |
— | ||
| replacement | |||||
|
10
|
10
07120-0616B-000 BOLT2003-10-01~2004-08-01 |
07120-0616B-000 |
from US $0.91 |
||
