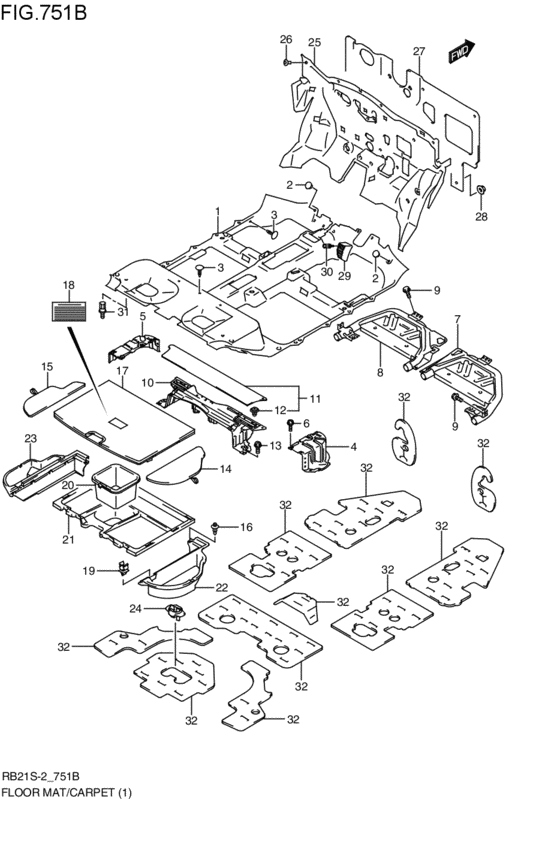

floor mat / carpet (5DR; 2001-11-01~) Diagram Suzuki AERIO
- Year
- 2001 - 2011
- Sales region
- Japan
- drive
- 4WD
- transmission
- AT
- Number of doors
- 5DR
- body
- XR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
75110-54G20-T19
カーペット,フロア(グレー)
グレ-; 5DR; 2001-11-01~ |
75110-54G20-T19 |
— | ||
|
2
|
2
09409-10302-P4Z CLIP(GRAY)グレ-; 5DR; 2001-11-01~ |
09409-10302-P4Z |
US $12.90 |
||
|
3
|
3
09409-10302-P4Z CLIP(GRAY)グレ-; 5DR; 2001-11-01~ |
09409-10302-P4Z |
US $12.90 |
||
|
4
|
4
75434-54G00-000
PANEL,RR SEAT SUPPORT SIDE,R
5DR; 2001-11-01~ |
75434-54G00-000 |
— | ||
| replacement | |||||
|
4
|
4
75434-54G01-000
PANEL,RR SEAT SUPPORT,R
5DR; 2001-11-01~ |
75434-54G01-000 |
— | ||
|
5
|
5
75435-54G00-000
PANEL,RR SEAT SUPPORT SIDE,L
5DR; 2001-11-01~ |
75435-54G00-000 |
— | ||
|
6
|
6
02162-06123-000
Bolt (6x12)
5DR; 2001-11-01~ |
02162-06123-000 |
— | ||
| replacements | |||||
|
6
|
6
02162-0612B-000 SCREWBolt 5DR; 2001-11-01~ |
02162-0612B-000 |
from US $0.80 |
||
|
6
|
6
02162-0612A-000 SCREWBolt, bracket 5DR; 2001-11-01~ |
02162-0612A-000 |
from US $0.80 |
||
|
7
|
7
75610-54G00-000
PIPE,MAIN FL SUPPORT,R
5DR; 2001-11-01~ |
75610-54G00-000 |
— | ||
|
8
|
8
75660-54G00-000
PIPE,MAIN FL SUPPORT,L
5DR; 2001-11-01~ |
75660-54G00-000 |
— | ||
|
9
|
9
01551-08163-000
Bolt
5DR; 2001-11-01~ |
01551-08163-000 |
— | ||
| replacements | |||||
|
9
|
9
01551-0816C-000 Bolt5DR; 2001-11-01~ |
01551-0816C-000 |
from US $0.96 |
||
|
9
|
9
01551-0816A-000
ボルト
5DR; 2001-11-01~ |
01551-0816A-000 |
— | ||
|
10
|
10
75420-54G00-000
PLATE,RR FLOOR UPR FRONT
5DR; 2001-11-01~ |
75420-54G00-000 |
— | ||
|
11
|
11
75490-54G00-P9S COVER,RR FLR UPR PLATEグレ-; 5DR; 2001-11-01~ |
75490-54G00-P9S |
US $29.26 |
||
|
12
|
12
09409-08337-000 CLIP5DR; 2001-11-01~ |
09409-08337-000 |
US $14.70 |
||
|
13
|
13
02162-06123-000
Bolt (6x12)
5DR; 2001-11-01~ |
02162-06123-000 |
— | ||
| replacements | |||||
|
13
|
13
02162-0612B-000 SCREWBolt 5DR; 2001-11-01~ |
02162-0612B-000 |
from US $0.80 |
||
|
13
|
13
02162-0612A-000 SCREWBolt, bracket 5DR; 2001-11-01~ |
02162-0612A-000 |
from US $0.80 |
||
|
14
|
14
75470-54G00-P9S
COVER,RR FLR SIDE BOX,R
グレ-; 5DR; 2001-11-01~ |
75470-54G00-P9S |
— | ||
|
15
|
15
75480-54G00-P9S
COVER,RR FLR SIDE BOX,L
グレ-; 5DR; 2001-11-01~ |
75480-54G00-P9S |
— | ||
|
16
|
16
09409-07308-5PK CLIP(BLACK)ブラック; 5DR; 2001-11-01~ |
09409-07308-5PK |
from US $0.95 |
||
|
17
|
17
75440-54G11-FK6
Cover,spare tire(gray)
グレー; 5DR; 2001-11-01~ |
75440-54G11-FK6 |
— | ||
| replacement | |||||
|
17
|
17
75440-54G11-P9S
COVER,SPARE TIRE
グレー; 5DR; 2001-11-01~ |
75440-54G11-P9S |
— | ||
|
19
|
19
76215-74G00-000 HOLDER,LUG LID5DR; 2001-11-01~ |
76215-74G00-000 |
from US $1.60 |
||
|
21
|
21
75463-54G00-000
BOX,TIRE COVER UNDER
5DR:4WD; 2001-11-01~ |
75463-54G00-000 |
— | ||
|
22
|
22
75461-54G00-000
BOX,RR FLOOR SIDE,R
5DR; 2001-11-01~ |
75461-54G00-000 |
— | ||
|
23
|
23
75462-54G00-000
Box,rr floor side,l
5DR; 2001-11-01~ |
75462-54G00-000 |
— | ||
|
24
|
24
75450-54G01-000
ホルダ,スペアタイヤ
5DR:4WD; 2001-11-01~ |
75450-54G01-000 |
— | ||
| replacement | |||||
|
24
|
24
75450-80J00-000
HOLDER,SPARE TIRE
5DR:4WD; 2001-11-01~ |
75450-80J00-000 |
— | ||
|
25
|
25
75210-54G00-000
サイレンサ,ダッシュパネル
5DR; 2001-11-01~ |
75210-54G00-000 |
— | ||
| replacement | |||||
|
25
|
25
75210-54G02-000 SILENCER,DASH PANEL5DR; 2001-11-01~ |
75210-54G02-000 |
US $198.72 |
||
|
26
|
26
09148-05037-000 CLIP5DR; 2001-11-01~ |
09148-05037-000 |
from US $1.24 |
||
|
27
|
27
72443-54G02-000
サイレンサ,ダッシュパネル,アウタ
5DR; 2001-11-01~ |
72443-54G02-000 |
— | ||
| replacement | |||||
|
27
|
27
72443-54G03-000 SILENCER,DASH PANEL OUTER5DR; 2001-11-01~ |
72443-54G03-000 |
US $66.98 |
||
|
28
|
28
09148-05048-000 NUT5DR; 2001-11-01~ |
09148-05048-000 |
US $0.96 |
||
|
29
|
29
75491-60B10-000
PEDAL,FOOTREST
5DR; 2001-11-01~ |
75491-60B10-000 |
— | ||
|
30
|
30
75581-54G00-000
CLIP,FOOTREST
5DR; 2001-11-01~ |
75581-54G00-000 |
— | ||
|
31
|
31
09113-06005-000 BOLT(6X16)5DR; 2001-11-01~ |
09113-06005-000 |
US $21.30 |
||
|
32
|
32
99611-60A01-000 SHEET,SILENCER 800X1000X35DR; 2001-11-01~ |
99611-60A01-000 |
US $62.40 |
||
