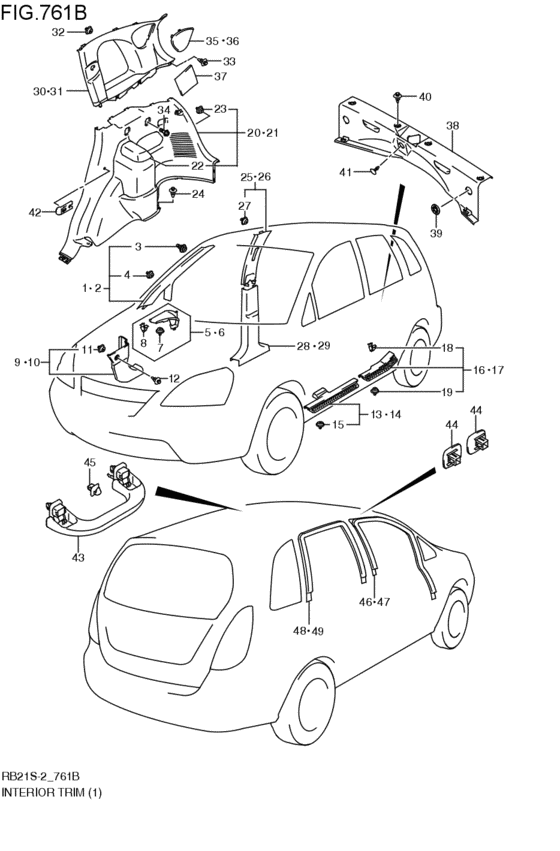

i trim interior (5DR; 2001-11-01~) Diagram Suzuki AERIO
- Year
- 2001 - 2011
- Sales region
- Japan
- drive
- 4WD
- transmission
- AT
- Number of doors
- 5DR
- body
- XR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
76111-54G02-P7Z
TRIM,FR PILLAR,R
グレ-; 5DR; 2001-11-01~ |
76111-54G02-P7Z |
— | ||
|
2
|
2
76121-54G02-P7Z
TRIM,FR PILLAR,L
グレ-; 5DR; 2001-11-01~ |
76121-54G02-P7Z |
— | ||
|
3
|
3
09409-10311-000 CLIP5DR; 2001-11-01~ |
09409-10311-000 |
US $1.60 |
||
|
4
|
4
76142-76G00-000 CLIP,INR5DR; 2001-11-01~ |
76142-76G00-000 |
US $2.02 |
||
|
5
|
5
76271-54G00-P4Z GARNISH,FR PLR LWR,Rグレ-; 5DR; 2001-11-01~ |
76271-54G00-P4Z |
US $12.66 |
||
|
6
|
6
76281-54G00-P4Z
GARNISH,FR PLR LWR,L
グレ-; 5DR; 2001-11-01~ |
76281-54G00-P4Z |
— | ||
|
7
|
7
76142-76G00-000 CLIP,INR5DR; 2001-11-01~ |
76142-76G00-000 |
US $2.02 |
||
|
8
|
8
09409-08326-000 CLIP5DR; 2001-11-01~ |
09409-08326-000 |
from US $0.76 |
||
|
9
|
9
76131-54G00-P4Z TRIM,DASH SIDE,Rグレ-; 5DR; 2001-11-01~ |
76131-54G00-P4Z |
US $19.50 |
||
|
10
|
10
76141-54G00-P4Z TRIM,DASH SIDE,Lグレ-; 5DR; 2001-11-01~ |
76141-54G00-P4Z |
US $19.50 |
||
|
11
|
11
76216-76F20-000 CLIP,QTR TRIM5DR; 2001-11-01~ |
76216-76F20-000 |
from US $1.91 |
||
|
12
|
12
09409-07321-P4Z CLIP(GRAY)グレ-; 5DR; 2001-11-01~ |
09409-07321-P4Z |
US $19.50 |
||
|
13
|
13
76151-54G00-P4Z SCUFF,SIDE SILL FR,Rグレ-; 5DR; 2001-11-01~ |
76151-54G00-P4Z |
US $36.80 |
||
|
14
|
14
76161-54G00-P4Z SCUFF,SIDE SILL FR,Lグレ-; 5DR; 2001-11-01~ |
76161-54G00-P4Z |
US $21.90 |
||
|
15
|
15
76142-76G00-000 CLIP,INR5DR; 2001-11-01~ |
76142-76G00-000 |
US $2.02 |
||
|
16
|
16
76152-54G00-P4Z SCUFF,SIDE SILL RR,Rグレ-; 5DR; 2001-11-01~ |
76152-54G00-P4Z |
US $20.24 |
||
|
17
|
17
76162-54G00-P4Z SCUFF,SIDE SILL RR,Lグレ-; 5DR; 2001-11-01~ |
76162-54G00-P4Z |
US $20.24 |
||
|
18
|
18
09409-08326-000 CLIP5DR; 2001-11-01~ |
09409-08326-000 |
from US $0.76 |
||
|
19
|
19
76142-76G00-000 CLIP,INR5DR; 2001-11-01~ |
76142-76G00-000 |
US $2.02 |
||
|
20
|
20
76170-54G01-P4Z TRIM,QTR INNER,Rグレ-; 5DR; 2001-11-01~ |
76170-54G01-P4Z |
US $177.38 |
||
|
21
|
21
76180-54G00-P4Z
トリム,クォータインナ,レフト(グレー)
グレ-; 5DR; 2001-11-01~ |
76180-54G00-P4Z |
— | ||
| replacement | |||||
|
21
|
21
76180-54G01-P4Z TRIM,QTR INNER,Lグレ-; 5DR; 2001-11-01~ |
76180-54G01-P4Z |
US $193.20 |
||
|
22
|
22
76172-54G00-P4Z CAP,QTR TRIMグレー; 5DR; 2001-11-01~ |
76172-54G00-P4Z |
US $7.95 |
||
|
23
|
23
76216-76F20-000 CLIP,QTR TRIM5DR; 2001-11-01~ |
76216-76F20-000 |
from US $1.91 |
||
|
24
|
24
09409-07308-P4Z CLIP(GRAY)グレ-; 5DR; 2001-11-01~ |
09409-07308-P4Z |
US $1.76 |
||
|
25
|
25
76211-54G01-P7Z TRIM,CTR PLR INR UPR,Rグレ-; 5DR; 2001-11-01~ |
76211-54G01-P7Z |
US $34.96 |
||
|
26
|
26
76221-54G00-P7Z
トリム,センタピラーインナアッパ,レフト(グレー)
グレ-; 5DR; 2001-11-01~ |
76221-54G00-P7Z |
— | ||
| replacement | |||||
|
26
|
26
76221-54G01-P7Z TRIM,CTR PLR INR UPR,Lグレ-; 5DR; 2001-11-01~ |
76221-54G01-P7Z |
US $34.96 |
||
|
27
|
27
76142-76G00-000 CLIP,INR5DR; 2001-11-01~ |
76142-76G00-000 |
US $2.02 |
||
|
28
|
28
76231-54G00-P4Z
トリム,センタピラーインナロア,ライト(グレー)
グレ-; 5DR; 2001-11-01~ |
76231-54G00-P4Z |
— | ||
| replacement | |||||
|
28
|
28
76231-54G01-P4Z TRIM,CTR PLR INR LWR,Rグレ-; 5DR; 2001-11-01~ |
76231-54G01-P4Z |
US $41.95 |
||
|
29
|
29
76241-54G00-P4Z
トリム,センタピラーインナロア,レフト(グレー)
グレ-; 5DR; 2001-11-01~ |
76241-54G00-P4Z |
— | ||
| replacement | |||||
|
29
|
29
76241-54G01-P4Z TRIM,CTR PLR INR LWR,Lグレ-; 5DR; 2001-11-01~ |
76241-54G01-P4Z |
US $41.95 |
||
|
30
|
30
76251-54G01-P7Z TRIM,QTR WINDOW,Rグレ-; 5DR; 2001-11-01~ |
76251-54G01-P7Z |
US $116.29 |
||
|
31
|
31
76261-54G00-P7Z TRIM,QTR WINDOW,Lグレ-; 5DR; 2001-11-01~ |
76261-54G00-P7Z |
US $116.29 |
||
|
32
|
32
76216-76F20-000 CLIP,QTR TRIM5DR; 2001-11-01~ |
76216-76F20-000 |
from US $1.91 |
||
|
33
|
33
09409-07308-P4Z CLIP(GRAY)グレ-; 5DR; 2001-11-01~ |
09409-07308-P4Z |
US $1.76 |
||
|
34
|
34
09122-76001-000 SCREW(6X16)5DR; 2001-11-01~ |
09122-76001-000 |
US $0.80 |
||
|
35
|
35
76252-54G00-6GS GARNISH,RR SPEAKER,Rグレ-; 5DR; 2001-11-01~ |
76252-54G00-6GS |
US $16.71 |
||
|
36
|
36
76262-54G00-6GS GARNISH,RR SPEAKER,Lグレ-; 5DR; 2001-11-01~ |
76262-54G00-6GS |
US $16.71 |
||
|
37
|
37
76253-54G00-000 PAD,QTR WINDOW TRIM RRライト; 5DR; 2001-11-01~ |
76253-54G00-000 |
US $7.62 |
||
|
38
|
38
76311-54G00-P4Z TRIM,BACK PANELグレ-; 5DR; 2001-11-01~ |
76311-54G00-P4Z |
US $43.79 |
||
|
39
|
39
09250-23002-P4Z
キャップ,OD:32(グレー)
グレ-; 5DR; 2001-11-01~ |
09250-23002-P4Z |
— | ||
| replacement | |||||
|
39
|
39
09250-23002-000 CAP(OD:32)グレ-; 5DR; 2001-11-01~ |
09250-23002-000 |
US $15.80 |
||
|
40
|
40
09409-07308-P4Z CLIP(GRAY)グレ-; 5DR; 2001-11-01~ |
09409-07308-P4Z |
US $1.76 |
||
|
41
|
41
76297-70C00-P4Z CAP,CHILD ANCHORAGEグレ-; 5DR; 2001-11-01~ |
76297-70C00-P4Z |
from US $1.60 |
||
|
42
|
42
84961-65G00-P4Z HOOK,RR SEAT BELTグレ-; 5DR; 2001-11-01~ |
84961-65G00-P4Z |
US $3.20 |
||
|
43
|
43
76410-55G01-6GS
グリップ,アシスタント(グレー)
グレ-; 5DR; 2001-11-01~ |
76410-55G01-6GS |
— | ||
| replacement | |||||
|
43
|
43
76410-55G02-6GS GRIP,ASSTグレ-; 5DR; 2001-11-01~ |
76410-55G02-6GS |
US $19.87 |
||
|
44
|
44
76412-55G00-6GS CAP,ROOF LININGグレ-; 5DR; 2001-11-01~ |
76412-55G00-6GS |
US $2.28 |
||
|
45
|
45
76413-55G00-6GS HOOK,COAT HANGERグレ-; 5DR; 2001-11-01~ |
76413-55G00-6GS |
US $3.35 |
||
|
46
|
46
76291-54G00-000
トリム,フロントドアオープニング,ライト
5DR; 2001-11-01~ |
76291-54G00-000 |
— | ||
| replacement | |||||
|
46
|
46
76291-54G01-000 TRIM,FR DOOR OPENING,R5DR; 2001-11-01~ |
76291-54G01-000 |
US $64.40 |
||
|
47
|
47
76292-54G00-000
トリム,フロントドアオープニング,レフト
5DR; 2001-11-01~ |
76292-54G00-000 |
— | ||
| replacement | |||||
|
47
|
47
76292-54G01-000 TRIM,FR DOOR OPENING,L5DR; 2001-11-01~ |
76292-54G01-000 |
US $64.40 |
||
|
48
|
48
76295-54G00-000
トリム,リヤドアオープニング,ライト
5DR; 2001-11-01~ |
76295-54G00-000 |
— | ||
| replacement | |||||
|
48
|
48
76295-54G01-000 TRIM,RR DOOR OPENING,R5DR; 2001-11-01~ |
76295-54G01-000 |
US $59.25 |
||
|
49
|
49
76296-54G00-000
トリム,リヤドアオープニング,レフト
5DR; 2001-11-01~ |
76296-54G00-000 |
— | ||
| replacement | |||||
|
49
|
49
76296-54G01-000 TRIM,RR DOOR OPENING,L5DR; 2001-11-01~ |
76296-54G01-000 |
US $59.25 |
||
