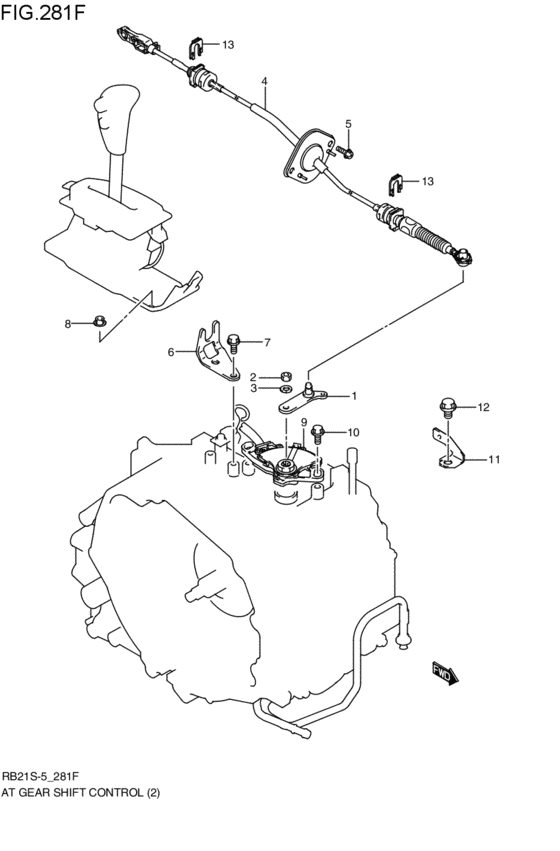

gearlever control (M18A; 2004-07-01~2006-01-01) Diagram Suzuki AERIO
- Year
- 2004 - 2011
- Sales region
- Japan
- Engine
- M18A
- drive
- 2WD
- transmission
- AT
- Number of doors
- 4DR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
25970-54G10-000
LEVER,MANUAL SLT
M18A; 2004-07-01~2005-07-01 |
25970-54G10-000 |
— | ||
|
1
|
1
25970-54G30-000
レバー,マニュアルセレクト
M18A; 2005-08-01~2006-01-01 |
25970-54G30-000 |
— | ||
| replacement | |||||
|
1
|
1
25900-54830-000
LEVER SET,MANUAL SELECT
M18A; 2005-08-01~2006-01-01 |
25900-54830-000 |
— | ||
|
2
|
2
25996-60G10-000 NUT,SELECT LEVERM18A; 2004-07-01~2006-01-01 |
25996-60G10-000 |
US $3.20 |
||
|
3
|
3
25997-60G10-000 WASHER,MANUAL SELECT LEVERM18A; 2004-07-01~2006-01-01 |
25997-60G10-000 |
US $3.20 |
||
|
4
|
4
28210-54G11-000
CABLE ASSY,SELECT
M18A; 2004-07-01~2005-07-01 |
28210-54G11-000 |
— | ||
|
4
|
4
28210-54G50-000 CABLE ASSY,SELECTM18A; 2005-08-01~2006-01-01 |
28210-54G50-000 |
US $124.38 |
||
|
5
|
5
02162-0620A-000
Bolt
M18A; 2004-07-01~2006-01-01 |
02162-0620A-000 |
— | ||
| replacement | |||||
|
5
|
5
02162-0620C-000 SCREWM18A; 2004-07-01~2006-01-01 |
02162-0620C-000 |
from US $0.80 |
||
|
6
|
6
28221-54G10-000
BRACKET,SELECT CABLE
M18A; 2004-07-01~2005-07-01 |
28221-54G10-000 |
— | ||
|
6
|
6
28221-80J11-000 BRACKET,SELECT CABLEM18A; 2005-08-01~2006-01-01 |
28221-80J11-000 |
US $11.55 |
||
|
7
|
7
22893-60G10-000 BoltM18A; 2004-07-01~2006-01-01 |
22893-60G10-000 |
US $4.27 |
||
|
8
|
8
08316-1008A-000 NUTNut, idle gear shaft M18A; 2004-07-01~2006-01-01 |
08316-1008A-000 |
from US $0.76 |
||
|
9
|
9
37720-60G11-000 SWITCH,SHIFTM18A; 2004-07-01~2006-01-01 |
37720-60G11-000 |
US $296 |
||
|
10
|
10
24896-60G10-000 BOLT,SHIFT SWITCHM18A; 2004-07-01~2006-01-01 |
24896-60G10-000 |
US $4.27 |
||
|
11
|
11
24855-60G11-000 BRACKET,SHIFT SW COUPLERM18A; 2004-07-01~2006-01-01 |
24855-60G11-000 |
US $4.05 |
||
|
12
|
12
01550-10163-000
Bolt
M18A; 2004-07-01~2006-01-01 |
01550-10163-000 |
— | ||
| replacements | |||||
|
12
|
12
01550-1016B-000 BoltPlug, oil gallery M18A; 2004-07-01~2006-01-01 |
01550-1016B-000 |
from US $0.96 |
||
|
12
|
12
01550-1016A-000 BoltPlug, oil gallery M18A; 2004-07-01~2006-01-01 |
01550-1016A-000 |
from US $4.96 |
||
|
13
|
13
29365-79A40-000 CLIPM18A; 2005-08-01~2006-01-01 |
29365-79A40-000 |
US $4 |
||
