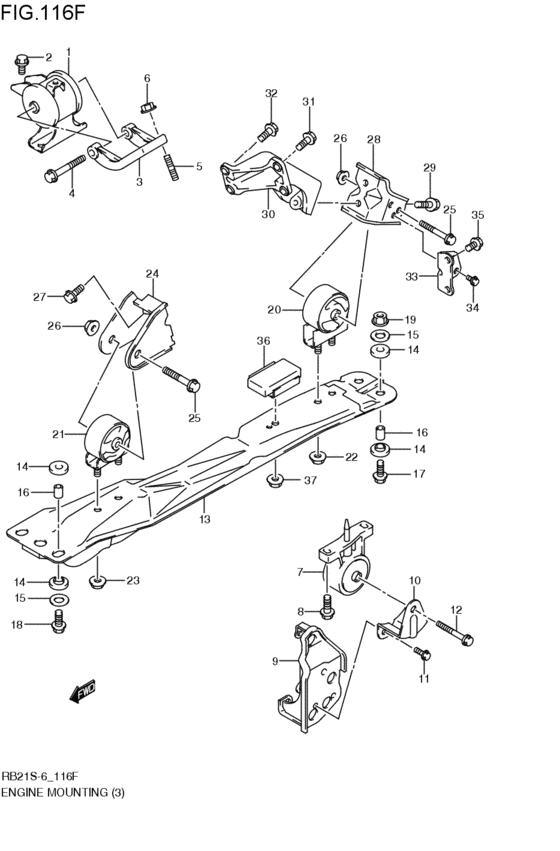

engine mounting (M18A:2WD; 2005-12-01~2007-05-01) Diagram Suzuki AERIO
- Year
- 2005 - 2011
- Sales region
- Japan
- Engine
- M18A
- drive
- 2WD
- transmission
- AT
- Number of doors
- 4DR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11610-54G20-000
Mounting,engine rh
M18A:2WD; 2005-12-01~2007-05-01 |
11610-54G20-000 |
— | ||
| replacement | |||||
|
1
|
1
11610-54G30-000 MOUNTING,ENG,RM18A:2WD; 2005-12-01~2007-05-01 |
11610-54G30-000 |
from US $160.88 |
||
|
2
|
2
01551-1025A-000 BoltM18A:2WD; 2005-12-01~2007-05-01 |
01551-1025A-000 |
US $1.12 |
||
|
3
|
3
11641-54G10-000 BRACKET,ENG MTG,RM18A:2WD; 2005-12-01~2007-05-01 |
11641-54G10-000 |
US $47.10 |
||
|
4
|
4
09103-10322-000 BOLT(10X125)M18A:2WD; 2005-12-01~2007-05-01 |
09103-10322-000 |
US $8.48 |
||
|
5
|
5
09108-10136-000 BOLT,STUD(10X50)M18A:2WD; 2005-12-01~2007-05-01 |
09108-10136-000 |
US $2.40 |
||
|
6
|
6
09159-10105-000
Nut, rr lh case
M18A:2WD; 2005-12-01~2007-05-01 |
09159-10105-000 |
— | ||
| replacement | |||||
|
6
|
6
09159-10116-000 NUTM18A:2WD; 2005-12-01~2007-05-01 |
09159-10116-000 |
from US $1.28 |
||
|
7
|
7
11620-54G02-000 MOUNTING,ENG,LM18A:2WD; 2005-12-01~2007-05-01 |
11620-54G02-000 |
from US $81.05 |
||
|
8
|
8
09112-10019-000 BOLT(10X45)M18A:2WD; 2005-12-01~2007-05-01 |
09112-10019-000 |
US $21.70 |
||
|
9
|
9
11650-60G11-000 BRACKET,ENG MTG N0.1,LM18A:2WD; 2005-12-01~2007-05-01 |
11650-60G11-000 |
US $44.16 |
||
|
10
|
10
11671-60G11-000 BRACKET,ENG MTG N0.2,LM18A:2WD; 2005-12-01~2007-05-01 |
11671-60G11-000 |
US $13.43 |
||
|
11
|
11
09103-08254-000 BOLT(8X20)Bolt, rear M18A:2WD; 2005-12-01~2007-05-01 |
09103-08254-000 |
from US $4.13 |
||
|
12
|
12
01550-1080A-000 BoltM18A:2WD; 2005-12-01~2007-05-01 |
01550-1080A-000 |
US $21.70 |
||
|
13
|
13
11630-54G01-000 MEMBER,MTGM18A:2WD; 2005-12-01~2007-05-01 |
11630-54G01-000 |
US $166.70 |
||
|
14
|
14
11684-55GA0-000 CUSHION,MTG MEMBERM18A:2WD; 2005-12-01~2007-05-01 |
11684-55GA0-000 |
US $4.96 |
||
|
15
|
15
11685-79J00-000 WASHERM18A:2WD; 2005-12-01~2007-05-01 |
11685-79J00-000 |
US $1.60 |
||
|
16
|
16
09180-10301-000 SPACER(10.2X14X20)M18A:2WD; 2005-12-01~2007-05-01 |
09180-10301-000 |
US $36.40 |
||
|
17
|
17
01550-1040A-000 BOLTM18A:2WD; 2005-12-01~2007-05-01 |
01550-1040A-000 |
from US $1.12 |
||
|
18
|
18
01551-1050A-000 BoltM18A:2WD; 2005-12-01~2007-05-01 |
01551-1050A-000 |
from US $1.28 |
||
|
19
|
19
08316-1010A-000 NUTNut, kick starter M18A:2WD; 2005-12-01~2007-05-01 |
08316-1010A-000 |
from US $0.76 |
||
|
20
|
20
11710-54G30-000 MOUNTING,ENG RRM18A:2WD; 2005-12-01~2007-05-01 |
11710-54G30-000 |
from US $69.92 |
||
|
21
|
21
11720-54G10-000 BUSH,ENG FR TORQUEM18A:2WD; 2005-12-01~2007-05-01 |
11720-54G10-000 |
from US $53.73 |
||
|
22
|
22
08316-1010A-000 NUTNut, kick starter M18A:2WD; 2005-12-01~2007-05-01 |
08316-1010A-000 |
from US $0.76 |
||
|
23
|
23
08316-1010A-000 NUTNut, kick starter M18A:2WD; 2005-12-01~2007-05-01 |
08316-1010A-000 |
from US $0.76 |
||
|
24
|
24
11761-54G02-000 BRACKET,ENG FR MTGM18A:2WD; 2005-12-01~2007-05-01 |
11761-54G02-000 |
US $21.71 |
||
|
25
|
25
09103-10341-000 BOLT(10X80)M18A:2WD; 2005-12-01~2007-05-01 |
09103-10341-000 |
US $2.56 |
||
|
26
|
26
08316-1010A-000 NUTNut, kick starter M18A:2WD; 2005-12-01~2007-05-01 |
08316-1010A-000 |
from US $0.76 |
||
|
27
|
27
01550-1025A-000 BOLTBolt, drive gear M18A:2WD; 2005-12-01~2007-05-01 |
01550-1025A-000 |
from US $1.06 |
||
|
28
|
28
11741-54G00-000 BRACKET,ENG RR MTG NO.1M18A:2WD; 2005-12-01~2007-05-01 |
11741-54G00-000 |
US $19.32 |
||
|
29
|
29
01550-1025A-000 BOLTBolt, drive gear M18A:2WD; 2005-12-01~2007-05-01 |
01550-1025A-000 |
from US $1.06 |
||
|
30
|
30
11751-54G01-000 BRACKET,ENG RR MTG N0.2M18A:2WD; 2005-12-01~2007-05-01 |
11751-54G01-000 |
US $69.92 |
||
|
31
|
31
01550-0825A-000 BOLTM18A:2WD; 2005-12-01~2007-05-01 |
01550-0825A-000 |
from US $1.06 |
||
|
32
|
32
01550-1030A-000 BOLTM18A:2WD; 2005-12-01~2007-05-01 |
01550-1030A-000 |
from US $1.12 |
||
|
33
|
33
11752-54G10-000 STIFFENER,ENG RR MTGM18A:2WD; 2005-12-01~2007-05-01 |
11752-54G10-000 |
US $6.40 |
||
|
34
|
34
01560-0816A-000 BoltM18A:2WD; 2005-12-01~2007-05-01 |
01560-0816A-000 |
from US $2.26 |
||
|
35
|
35
01550-1020A-000 BOLTBolt, bal sprocket M18A:2WD; 2005-12-01~2007-05-01 |
01550-1020A-000 |
from US $0.96 |
||
|
36
|
36
11915-54G00-000
ダンパ,ダイナミック
M18A:2WD; 2005-12-01~2007-05-01 |
11915-54G00-000 |
— | ||
| replacement | |||||
|
36
|
36
11915-54G01-000 DAMPER,DYNAMICM18A:2WD; 2005-12-01~2007-05-01 |
11915-54G01-000 |
US $47.47 |
||
|
37
|
37
08316-1010A-000 NUTNut, kick starter M18A:2WD; 2005-12-01~2007-05-01 |
08316-1010A-000 |
from US $0.76 |
||
